Residential & Small Commercial Energy Storage Solutions
Exploring and utilizing smart technologies and advanced expertise, Goodwe is relentless about offering users residential & small C&I storage solutions to protect users from rising electricity costs. We strive to create reliable solutions for users to maximize self-consumption, ensure power safety during an outage, take smart control of home power management, and realize energy independence...
Minimalizing electricity bill
<10ms UPS-level switching
Up to 10 years warranty
Easy Wi-Fi setup via App settings
Fanless design, long lifespan
Charge battery at off-peak price
The battery system stores excess power generated from the PV array to inject solar power to the grid and avoid restricting solar production. When solar production is weak, the battery will discharge to support load consumption.
PROVIDE BACKUP FOR CRITICAL LOADS
The battery stores solar power or takes energy from the grid for energy requirements during grid outage. Loads such as refrigerators, routers, lamps, computers and other critical appliances can be powered when the grid fails. The system can automatically switch to backup mode within 8 milliseconds.
TIME OF USE (TOU)
By setting the charging and discharging time, the battery can be charged using electricity generated at off peak rates and discharged to power loads during peak hours.
Residential Storage System
All In One
Residential Retrofit Storage System
Hybrid inverter (LV)
The GoodWe ES series bi-directional energy storage inverter can be used for both on-grid and off-grid PV systems, with the ability to control the flow of energy intelligently. During the day, the PV array generates electricity which can be provided either to the loads, fed into the grid or charge the battery, depending on the economics and set-up. The electricity stored can be released when the loads require it during the night, including inductive loads such as air conditioners or refrigerators. Additionally, the power grid can also charge storage devices via the inverter. An all-round intelligent system for maximum energy flexibility.
3-5 kW I Single phase
up to 2 MPPTs

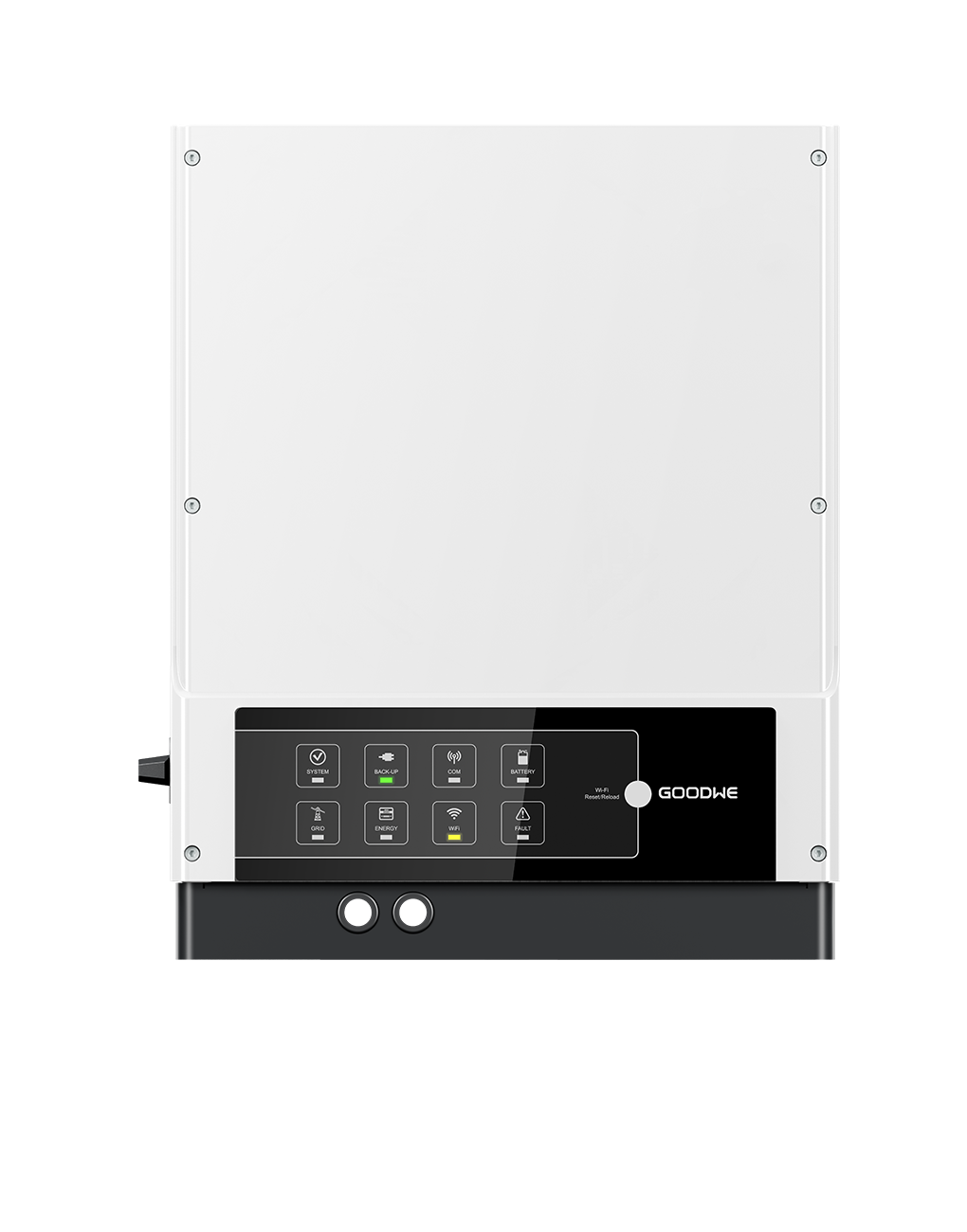

Hybrid inverter (LV)
The GoodWe EM series bi-directional energy storage inverter can be used for on-grid PV systems, with the ability to control the flow of energy intelligently. During the day, the PV array generates electricity which can be provided either to the loads, fed into the grid or charge the battery, depending on the economics and set-up. The stored electricity can be released when the loads require it during the night. Additionally, the power grid can also charge the storage devices via the inverter. An all-round intelligent system for maximum energy flexibility.
AC-coupled retrofit inverter (LV)
The GoodWe SBP series is the world’s first AC-coupled battery storage retrofit solution with UPS function for single-phase and three-phase systems. It can effectively upgrade any existing string inverter system by adding a backup battery. Capable of being grid-interactive, it allows users to store surplus power and sell it back to the grid when demand peaks and the price of electricity is at its highest. With a UPS-level switching function (switching time <10 ms), the GoodWe SBP provides an uninterruptible power supply to inductive loads such as air conditioners or refrigerators. It runs reliably under even the most extreme conditions with metal aluminium housing with IP65 protection.
(Americas Only) 5-9.6 kW
Up to 4 MPPTs
Hybrid inverter (HV)
The GoodWe A-ES seies is a split-phase hybrid inverter designed to increase self-consumption of your generated solar energy. GoodWe A-ES is compatible with high voltage (80-495V) batteries with a power capacity ranging from 5 kW to 9.6 kW. With up to 4 MPPTs, the A-ES inverter seamlessly adapts to complex residential rooftops. Equipped with rapid battery charge functionality and perfectly capable of powering large loads in back-up mode (up to 9.6 kW).
(South Africa only) 5-10 kW
up to 4 MPPTs

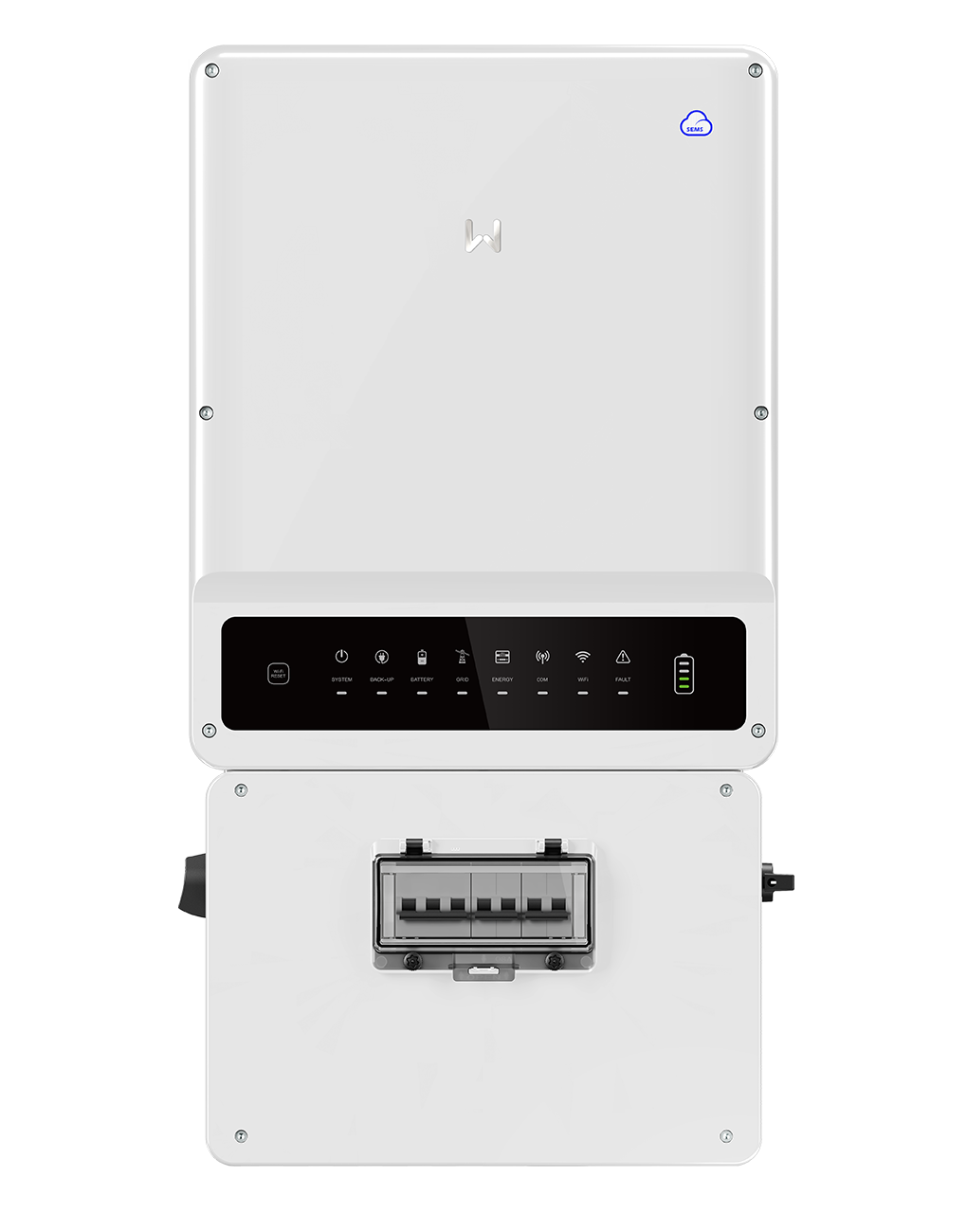

Hybrid inverter (HV)
EHB Series is a single-phase hybrid inverter specially designed to meet the increasing energy storage needs from the residential segment. It is the ultimate integrated multi-function system, follows a Plug & Play design and has an external communication connector, making the installation process quick and convenient. Supporting up to 50A battery charge/discharge current, EHB can easily supply power to critical loads when the grid is compromised. It is AFCI-ready and can support rapid shutdown function. All these outstanding features make this inverter a perfect match for application in South African households.
ET PLUS+ Series
5-10 kW │ Three Phase │ Hybrid Inverter
ET PLUS+ Series integrates the technical strengths that make it one of the most adaptive options in the market for flexible residential needs. The series brings values of high power generation and charging power for optimal energy harvest, flexible applications enabled by smart load control and 100% unbalanced output, and sustainable system reliability and safety. It also presents peak shaving that balances power demand and grid power imported, to effectively reduce extra grid demand. Furthermore, thanks to dry contact in the inverter, external loads such as heat pumps can also be flexibly activated to optimize energy consumption. It is a truly versatile quality investment piece that extends application scenarios and maximizes self-consumption ratios.
AC-coupled retrofit inverter (HV)
The GoodWe BT series is an AC-coupled retrofit inverter, which is able to upgrade existing three-phase on-grid PV systems to storage systems. The AC-coupled solution can transform any three-phase on-grid PV system into an energy storage system with batteries, enhancing grid independence and self-consumption. It is compatible with high voltage Li-Ion batteries ranging from 180 to 600V and is also equipped with UPS-level switching for a stable and reliable power supply.
Hybrid ready (HV)
The EH is compatible with high voltage batteries (85-450V) to empower a flexible system design. As the core of reliable electricity supply, EH series can automatically realize the UPS-level switching to the back-up mode in less than 10 ms, ensuring that critical loads experience with no interruption. Being communicative by supporting multiple communication protocols, it allows for smart home integration and maximized system status transparency. It future-proves the extension for your power system by offering a Battery Ready option for users who might wish to acquire a complete energy storage solution eventually. By simply purchasing an activation code, users can easily upgrade EH to a complete energy storage solution.
AC-coupled retrofit inverter (HV)
The GoodWe BH Series inverter is a single-phase, AC-coupled retrofit inverter compatible with a wide range of high voltage batteries from 85V to 450V. It is designed to maximize self-consumption with a UPS-level switching backup function. The pre-wired communication cables and AC connector’s Plug & Play simplify installation, operation, and maintenance.

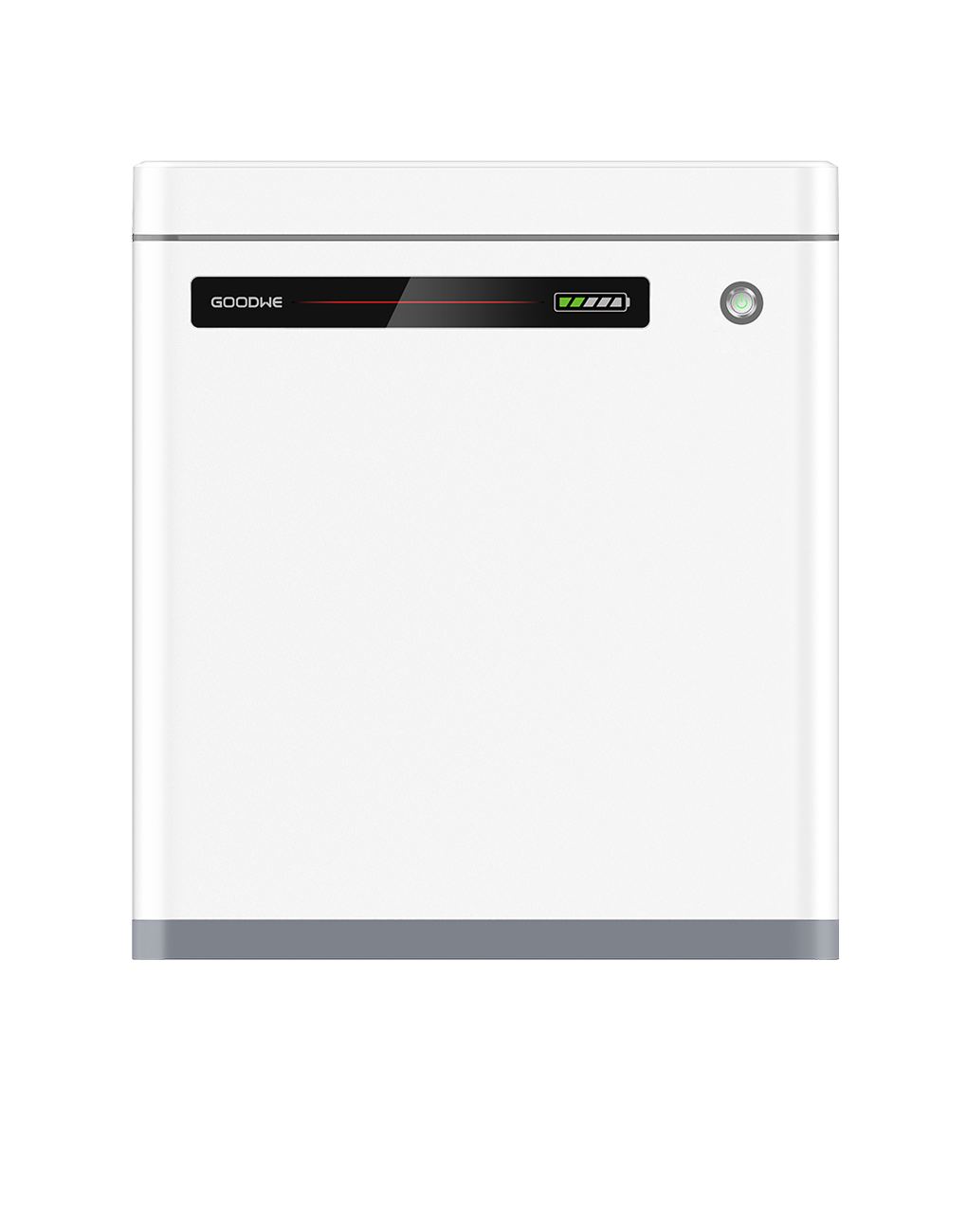

Lynx Home U Series
Low voltage battery
Lynx Home U Series is a low-voltage lithium battery specially designed for residential applications with superior performance. Compatible with GoodWe ES/EM/SBP inverters, Lynx Home U Series comes with GoodWe one-stop-shop solution saving you considerable time and effort. It can be used flexibly for self-consumption and backup applications with a wide capacity range scalable from 5.4 – 32.4 kWh. The installation and commissioning are easier and faster than ever with a simple Plug and Play wiring and module auto recognition during system setup. Meet this highly efficient solution for storing your solar power and use it whenever needed.
Lynx Home S Series
(North America excluded) 7.7-20.5 kWh
High voltage battery
GoodWe’s Lynx Home S Series is a high voltage battery that offers multiple energy storage options through an expandable modular design (3-8 modules combined), which further simplifies installation and O&M with multiple smart functions. The safest battery cell technology (LFP) comes with a high charging rate, ensuring superior performance and supplying robust power for your life.
Smart Energy Management System
GoodWe Smart Energy Management System (SEMS) is a cost-free monitoring platform which offers reliable operation of photovoltaic plants with maximum yield.SEMS allows operators to simultaneously monitor a diverse range of photovoltaic power plants in different locations in real time and control the installations. Extensive data processing, customized charts, and alarm and maintenance functions ensure that operators, operations managers and asset managers can comfortably and efficiently manage the systems, ensuring maximum yields.
SEMS includes a range of functions and features to ensure reliable operation and to deliver precise information to operators at the press of a button. It is accessible by multiple accounts with different levels of access for owners, installers and EPC companies.
4G KIT-EC / 4G KIT-AU
GoodWe 4G Module is easy to install with Plug-Play design and can support several operators worldwide, offering customers convenience and reliability especially in remote areas without access to Wi-Fi.
Smart Energy Controller
SEC1000 (On Gird) / SEC1000S (Storage)
The SEC is a smart energy controller entirely developed by GoodWe. When combined with a GoodWe solar inverter, it is able to achieve real-time data collection and analysis. Furthermore, the SEC can automatically adjust active power output, power factor and other parameters of a solar power plant. It can even limit AC output to the grid, which further distributes and allocates system resources more effectively. The SEC is composed of GoodWe's three-phase meter and control board. It can be connected with SEMS to control and manage the performance of inverters in each string. Small box, mighty functions!
Wi-Fi BOX / Wi-Fi KIT
· Data encrypted to ensure data security.
· Supports breakpoint retransmission - automatic disconnection of broken links, reconnection and subsequent transmission to prevent data loss.
· Remote upgrade - inverter program update without going on site.
· Pre-assembled, tested and shipped - no on-site installation required, stable performance.
5pin (LAN BOX) / USB (LAN KIT)
· High-speed and reliable transmission via Ethernet Cable.
· Supports encyption to ensure data security.
· Supports breakpoints which automatically save data when communication disconnection occurs, and resume transmission on reconnection, with no data loss.
· Supports remote upgrades allowing the inverter to be updated without needing to have a person physically on site.
