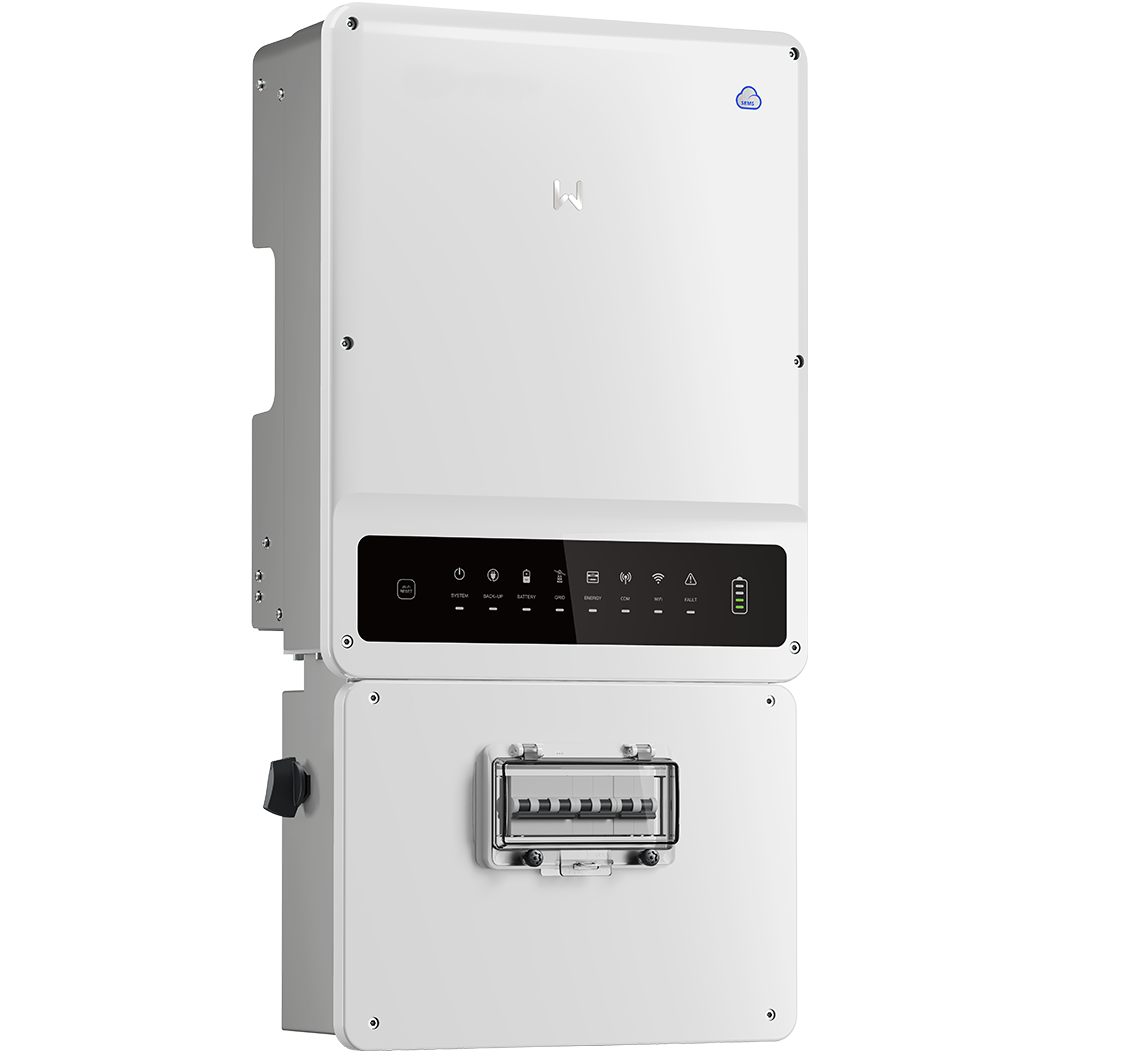

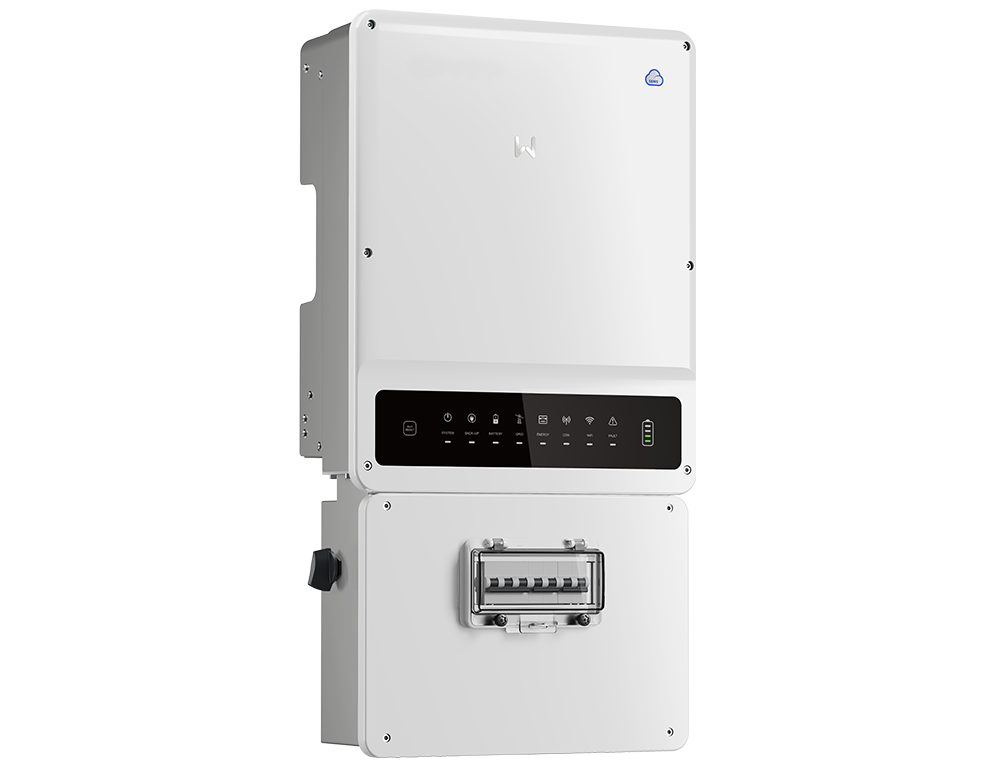

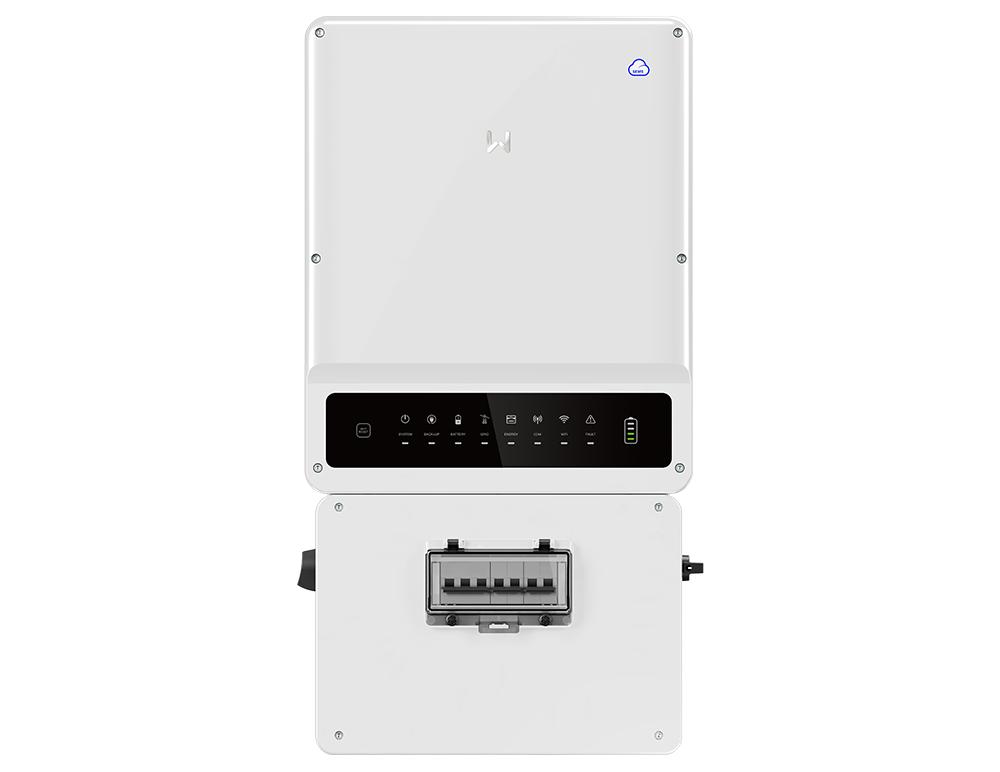

EHB Series

(South Africa only) 5-10 kW | Single phase | up to 4 MPPTs | Hybrid inverter (HV)

DOWNLOAD PDF >>

Scroll

Plug & Play connectors

Fanless cooling for quiet operation

EHB Series is a single-phase hybrid inverter specially designed to meet the increasing energy storage needs from the residential segment. It is the ultimate integrated multi-function system, follows a Plug & Play design and has an external communication connector, making the installation process quick and convenient. Supporting up to 50A battery charge/discharge current, EHB can easily supply power to critical loads when the grid is compromised. It is AFCI-ready and can support rapid shutdown function. All these outstanding features make this inverter a perfect match for application in South African households.


<10 ms UPS-level Switching


Smart home integration with multi-protocol communications


AFCI ready & Rapid shutdown


IP65 ingress protection


Plug & Play connectors

Fanless cooling for quiet operation

Friendly & Thoughtful Design

EHB Series removes all the complexities of the installation process with its well-designed integrated AC/DC breaker, Plug & Play connectors, external communication connector etc. This makes the installation much more convenient, saving not only costs but also time and space.


Plug & Play connectors


Fanless cooling for quiet operation


Flexible & Adaptable Applications

Featuring 4 MPPTs, the EHB 5-10kW Series is the perfect solution to feed solar power to large residential properties, offering you more choices and maximizing total solar generation.  The power supply ability in backup mode supports large loads for critical operations.


4 MPPTs – higher yields


Strong backup power supply

OVERVIEW


Model

GW5000-EHB

Battery Voltage Range (V)

80~495

Max. Continuous Charging / Discharging Current(A)

50/50

Max. Input Current per MPPT (A)

13/13/13

Max. Apparent Power Output to Utility Grid (VA)

5000

Back-up Nominal Apparent Power (VA)

5000

Model

GW6500-EHB

Battery Voltage Range (V)

80~495

Max. Continuous Charging / Discharging Current(A)

50/50

Max. Input Current per MPPT (A)

13/13/13/13

Max. Apparent Power Output to Utility Grid (VA)

6500

Back-up Nominal Apparent Power (VA)

6500

Model

GW8600-EHB

Battery Voltage Range (V)

80~495

Max. Continuous Charging / Discharging Current(A)

50/50

Max. Input Current per MPPT (A)

13/13/13/13

Max. Apparent Power Output to Utility Grid (VA)

8600

Back-up Nominal Apparent Power (VA)

8600

Model

GW0010-EHB

Battery Voltage Range (V)

80~495

Max. Continuous Charging / Discharging Current(A)

50/50

Max. Input Current per MPPT (A)

13/13/13/13

Max. Apparent Power Output to Utility Grid (VA)

10000

Back-up Nominal Apparent Power (VA)

10000
