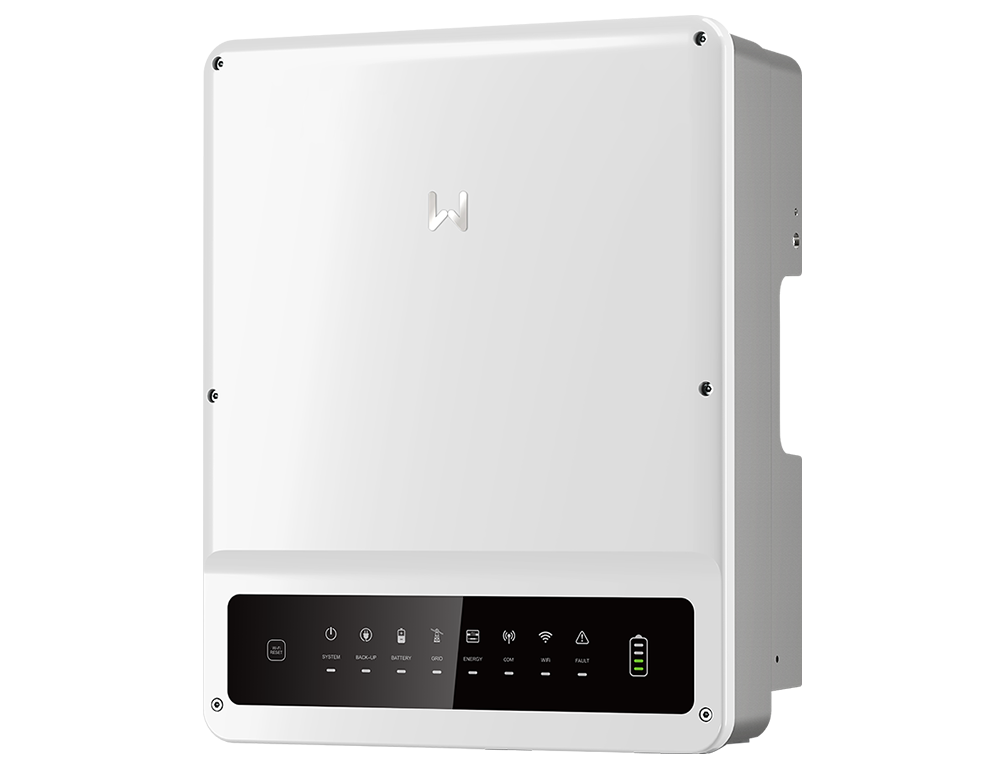

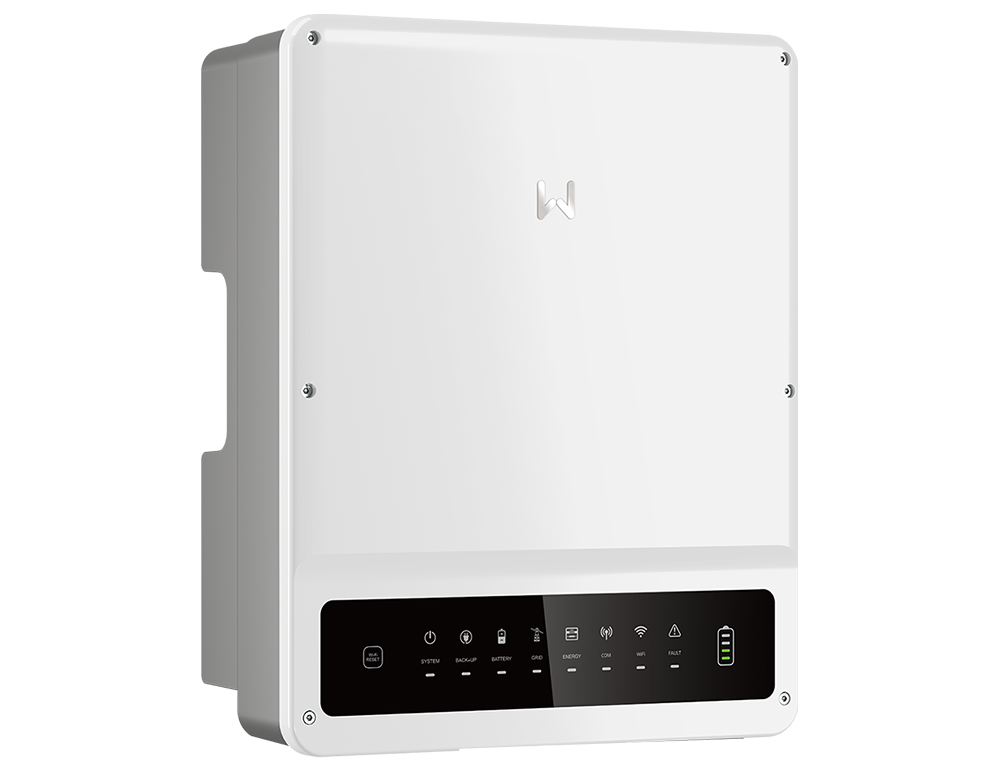

ET PLUS+ Series

5-10 kW | Three phase | 2 MPPTs | Hybrid inverter (HV)

DOWNLOAD PDF >>

Scroll

Fanless & Quiet

16A

ET PLUS+ Series integrates the technical strengths that make it one of the most adaptive options in the market for flexible residential needs. The series brings values of high power generation and charging power for optimal energy harvest, flexible applications enabled by smart load control and 100% unbalanced output, and sustainable system reliability and safety. It is a truly versatile quality investment piece that extends application scenarios and maximizes self-consumption ratios.


Smart load control


<10ms UPS-level switching


In-built Type II SPD on DC side


IP66 ingress protection


Fanless & Quiet

16A

Smart Control for Smart Energy

Take smart load control to customize the power generation to accommodate to your load consumption needs. Thanks to the integrated export power limit, ET PLUS+ Series can adapt to any power limit imposed by the local energy provider. Enjoy the smart home with smart energy control.


Smart load control


Power export limit

Flexible & Adaptable Applications

The ET PLUS+ Series offers a grid-connected version featuring GoodWe Battery Ready option to activate energy storage with one activation code — a simple way to future-proof your home for an energy storage system. Take smart load control to customize the power generation to accommodate to the load consumption needs or prioritize battery charge via PV Master App to adapt to different daily use scenarios. Enjoy the simple and flexible power generation and storage in control.


Battery ready option


100% unbalanced output


Forced battery charging

High Generation and Optimized Consumption

With 150% DC input oversizing, the series with 98.2% maximum efficiency is driven to massively increase the daily energy yield under various solar radiation conditions.

150%

150% DC oversizing

100%

100% unbalanced output

98.2%

98.2% max. efficiency

50%

Up to 50% higher max. charging/discharging power

OVERVIEW


Model

GW10KN-ET

Battery Voltage Range (V)

180~600

Max. Continuous Charging / Discharging Current(A)

25/25

Max. Input Current per MPPT (A)

16

Max. Apparent Power Output to Utility Grid (VA)

11000

Back-up Nominal Apparent Power (VA)

10000

Model

GW10K-ET

Battery Voltage Range (V)

180~600

Max. Continuous Charging / Discharging Current(A)

25/25

Max. Input Current per MPPT (A)

12.5

Max. Apparent Power Output to Utility Grid (VA)

11000

Back-up Nominal Apparent Power (VA)

10000

Model

GW8KN-ET

Battery Voltage Range (V)

180~600

Max. Continuous Charging / Discharging Current(A)

25/25

Max. Input Current per MPPT (A)

16

Max. Apparent Power Output to Utility Grid (VA)

8800

Back-up Nominal Apparent Power (VA)

8000

Model

GW8K-ET

Battery Voltage Range (V)

180~600

Max. Continuous Charging / Discharging Current(A)

25/25

Max. Input Current per MPPT (A)

12.5

Max. Apparent Power Output to Utility Grid (VA)

8800

Back-up Nominal Apparent Power (VA)

8000

Model

GW6.5KN-ET

Battery Voltage Range (V)

180~600

Max. Continuous Charging / Discharging Current(A)

25/25

Max. Input Current per MPPT (A)

16

Max. Apparent Power Output to Utility Grid (VA)

7150

Back-up Nominal Apparent Power (VA)

6500

Model

GW6.5K-ET

Battery Voltage Range (V)

180~600

Max. Continuous Charging / Discharging Current(A)

25/25

Max. Input Current per MPPT (A)

12.5

Max. Apparent Power Output to Utility Grid (VA)

7150

Back-up Nominal Apparent Power (VA)

6500

Model

GW5KN-ET

Battery Voltage Range (V)

180~600

Max. Continuous Charging / Discharging Current(A)

25/25

Max. Input Current per MPPT (A)

16

Max. Apparent Power Output to Utility Grid (VA)

5500

Back-up Nominal Apparent Power (VA)

5000

Model

GW5K-ET

Battery Voltage Range (V)

180~600

Max. Continuous Charging / Discharging Current(A)

25/25

Max. Input Current per MPPT (A)

12.5

Max. Apparent Power Output to Utility Grid (VA)

5500

Back-up Nominal Apparent Power (VA)

5000
