BH Series

3-6 kW | Single phase | AC-coupled retrofit inverter (HV)

DOWNLOAD PDF >>

Scroll

Fanless & quiet

Elegant & compact

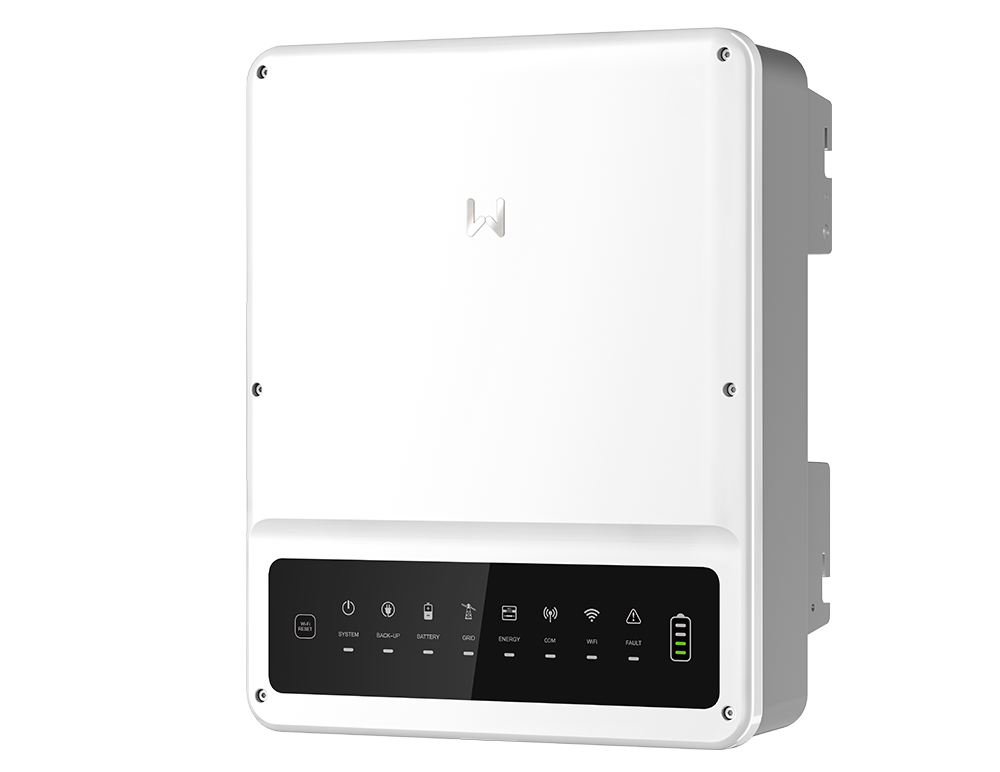

The GoodWe BH Series inverter is a single-phase, AC-coupled retrofit inverter compatible with a wide range of high voltage batteries from 85V to 460V. It is designed to maximize self-consumption with a UPS-level switching backup function. The pre-wired communication cables and AC connector’s Plug & Play simplify installation, operation, and maintenance.


Quality and robust components


Smart home integration with multi-protocol communications


IP65 ingress protection


<10 ms UPS-level switching


Fanless & quiet

Elegant & compact

Friendly & Thoughtful Design

BH Series is equipped with fanless natural convection cooling to realize quiet operation for users' peace of mind. The elegant and compact design is perfect for indoor installation.


Fanless cooling for quiet operation


Elegant and compact design


Flexible & Adaptable Applications

As a single-phase, AC-coupled retrofit HV inverter, BH Series can upgrade existing on-grid PV systems to storage systems.  With a wide battery voltage range of 85-460V, the inverter fits users' needs flexibly and makes the energy system construction much more effortless. The power supply ability in backup mode supports large loads for critical operations.


Strong backup power supply


Wide battery voltage range 85~460 V

OVERVIEW


Model

GW3K-BH

Battery Voltage Range (V)

85~400

Max. Continuous Charging / Discharging Current(A)

32/32

Nominal Output Voltage (V)

230

Max. Apparent Power Output to Utility Grid (VA)

3000/3300 (CEI 0-21)

Back-up Nominal Apparent Power (VA)

3000

Model

GW3600-BH

Battery Voltage Range (V)

85~460

Max. Continuous Charging / Discharging Current(A)

25/25

Nominal Output Voltage (V)

230

Max. Apparent Power Output to Utility Grid (VA)

3600/3960 (CEI 0-21)

Back-up Nominal Apparent Power (VA)

3600

Model

GW5000-BH

Battery Voltage Range (V)

85~460

Max. Continuous Charging / Discharging Current(A)

25/25

Nominal Output Voltage (V)

230

Max. Apparent Power Output to Utility Grid (VA)

5000/5500 (CEI 0-21)

Back-up Nominal Apparent Power (VA)

5000

Model

GW6000-BH

Battery Voltage Range (V)

85~460

Max. Continuous Charging / Discharging Current(A)

25/25

Nominal Output Voltage (V)

230

Max. Apparent Power Output to Utility Grid (VA)

6000/6600 (CEI 0-21)

Back-up Nominal Apparent Power (VA)

6000
