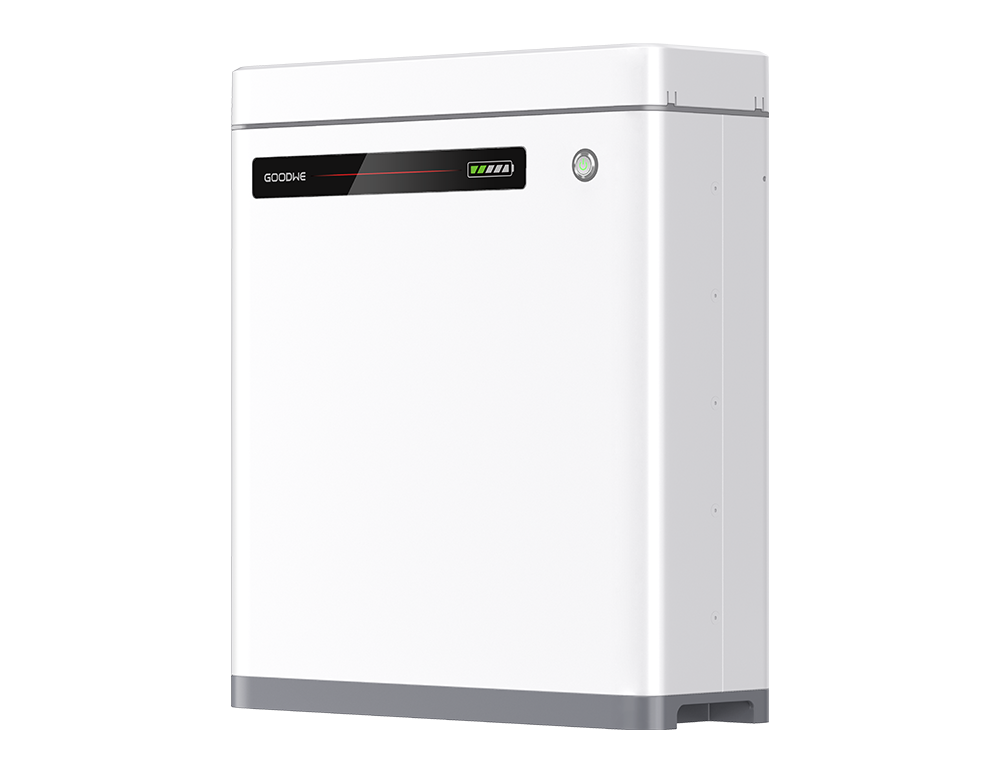

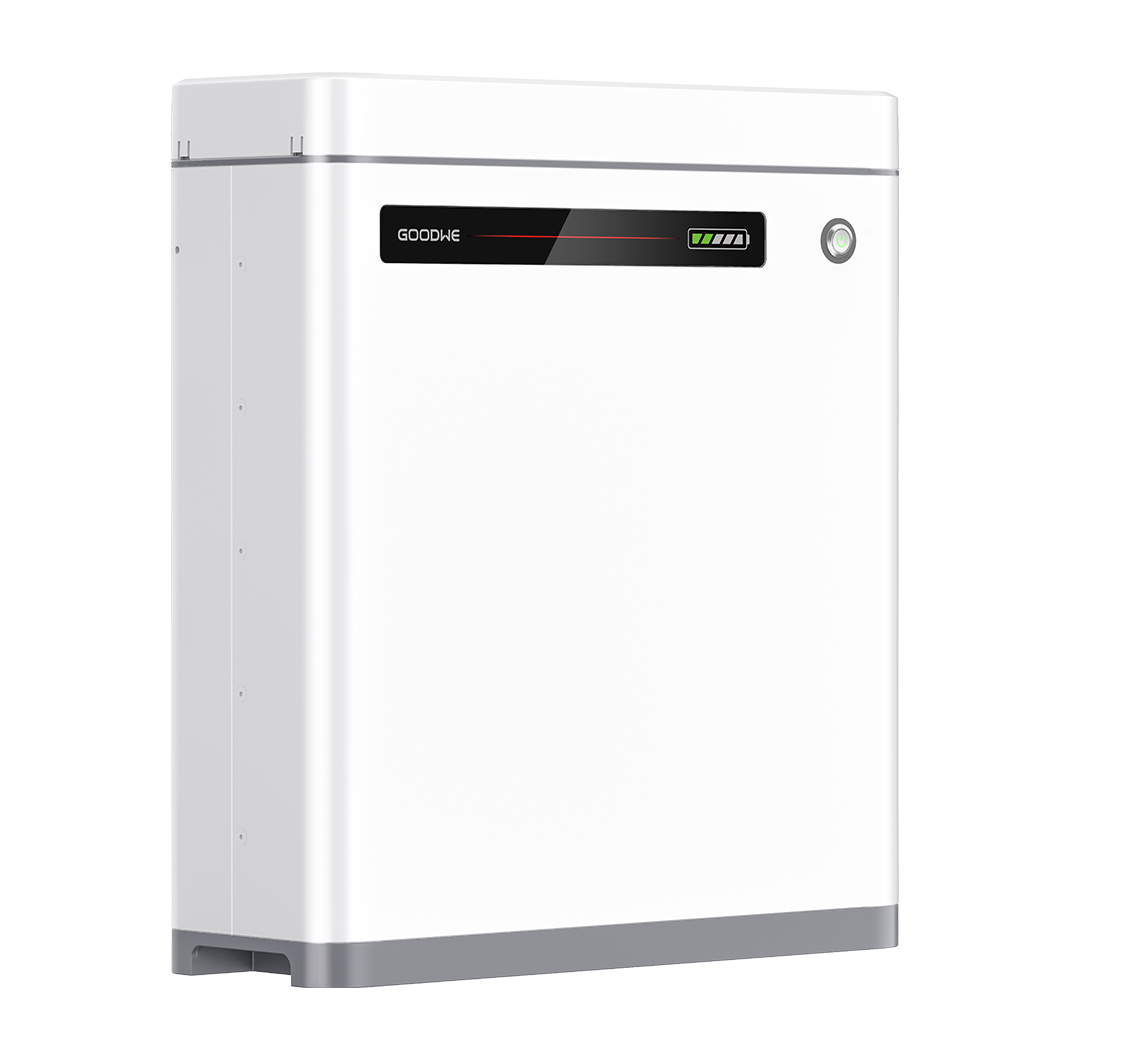

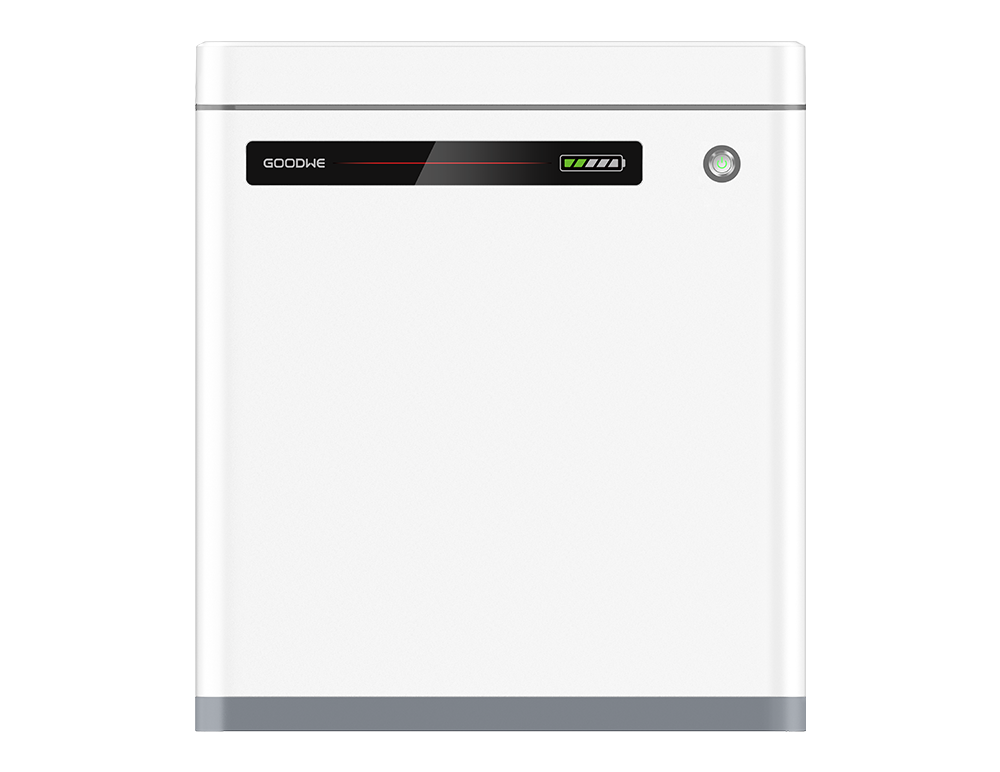

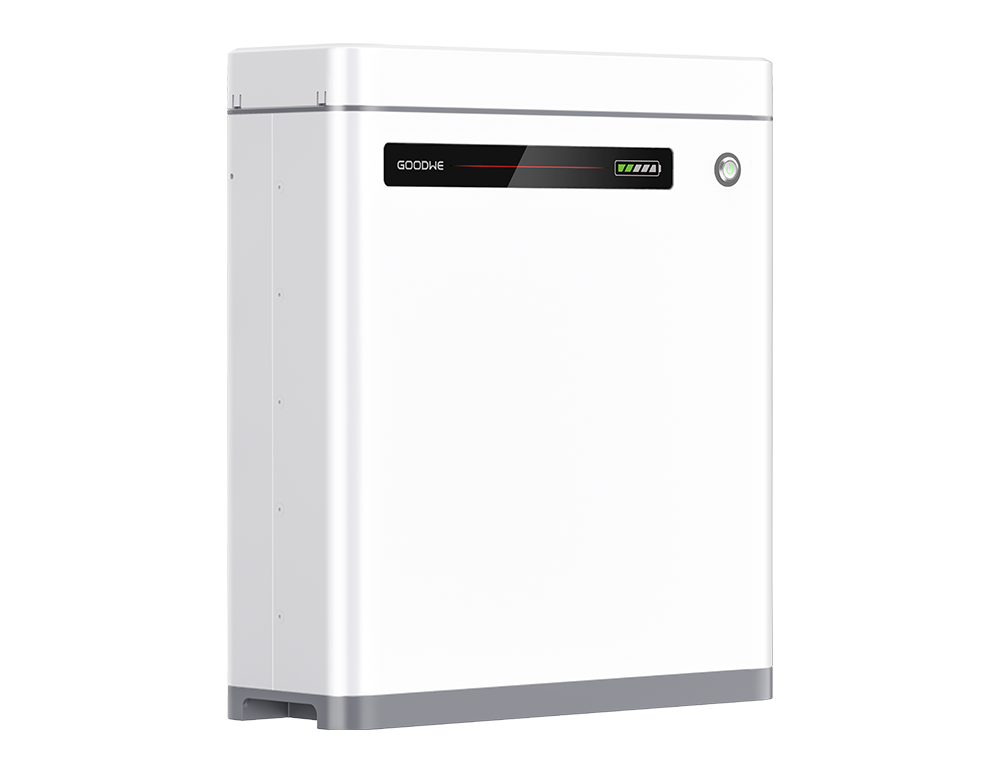

Lynx Home U Series

5.4-32.4 kWh | Low voltage battery

DOWNLOAD PDF >>

Scroll

Plug & Play

Auto recognition

Lynx Home U Series is a low-voltage lithium battery specially designed for residential applications with superior performance. Compatible with GoodWe ES/EM/SBP inverters, Lynx Home U Series comes with GoodWe one-stop-shop solution saving you considerable time and effort. It can be used flexibly for self-consumption and backup applications with a wide capacity range scalable from 5.4 – 32.4 kWh. The installation and commissioning are easier and faster than ever with a simple Plug and Play wiring and module auto recognition during system setup. Meet this highly efficient solution for storing your solar power and use it whenever needed.


Reliable LFP technology with high cycle stability


Remote diagnosis & update


Auto reboot after undervoltage


IP65 protection for outdoor installation safety


Plug & Play

Auto recognition

Friendly & Thoughtful Design

The stackable self-detecting modules are built for ultra-simplified assembly, and pre-wired communication cables provide Plug & Play wiring to skip the complex internal wiring and commissioning, bringing fast installations for an easy start.


Auto-recognition modules


Plug & Play wiring


Flexible & Adaptable Applications

Lynx Home U Series is compatible with GoodWe ES/EM/SBP inverters, allowing for a more effortless energy storage solution construction. With its wide capacity range scalable from 5.4 kWh to  32.4 kWh, Lynx Home U Series can be set to adapt to the flexible needs whenever you need.


5.4 – 32.4 kWh wide capacity range


Compatible with GoodWe ES/EM/SBP inverters


Compatible with single-phase hybrid and retrofit inverters

OVERVIEW


Model

LX U5.4-L

Usable Energy (kWh)

4.8

Nominal Voltage (V)

51.2

Nominal Charging / Discharging Current (A)

50

Installation Location

Wall-Mounted / Ground-Mounted

Enclosure Type

IP65

Model

2*LX U5.4-L

Usable Energy (kWh)

9.6

Nominal Voltage (V)

51.2

Nominal Charging / Discharging Current (A)

100

Installation Location

Wall-Mounted / Ground-Mounted

Enclosure Type

IP65

Model

3*LX U5.4-L

Usable Energy (kWh)

14.4

Nominal Voltage (V)

51.2

Nominal Charging / Discharging Current (A)

100

Installation Location

Wall-Mounted / Ground-Mounted

Enclosure Type

IP65

Model

4*LX U5.4-L

Usable Energy (kWh)

19.2

Nominal Voltage (V)

51.2

Nominal Charging / Discharging Current (A)

100

Installation Location

Wall-Mounted / Ground-Mounted

Enclosure Type

IP65

Model

5*LX U5.4-L

Usable Energy (kWh)

24.0

Nominal Voltage (V)

51.2

Nominal Charging / Discharging Current (A)

100

Installation Location

Wall-Mounted / Ground-Mounted

Enclosure Type

IP65

Model

6*LX U5.4-L

Usable Energy (kWh)

28.8

Nominal Voltage (V)

LFP (LiFePO4)

Nominal Charging / Discharging Current (A)

51.2

Installation Location

342

Enclosure Type

100
