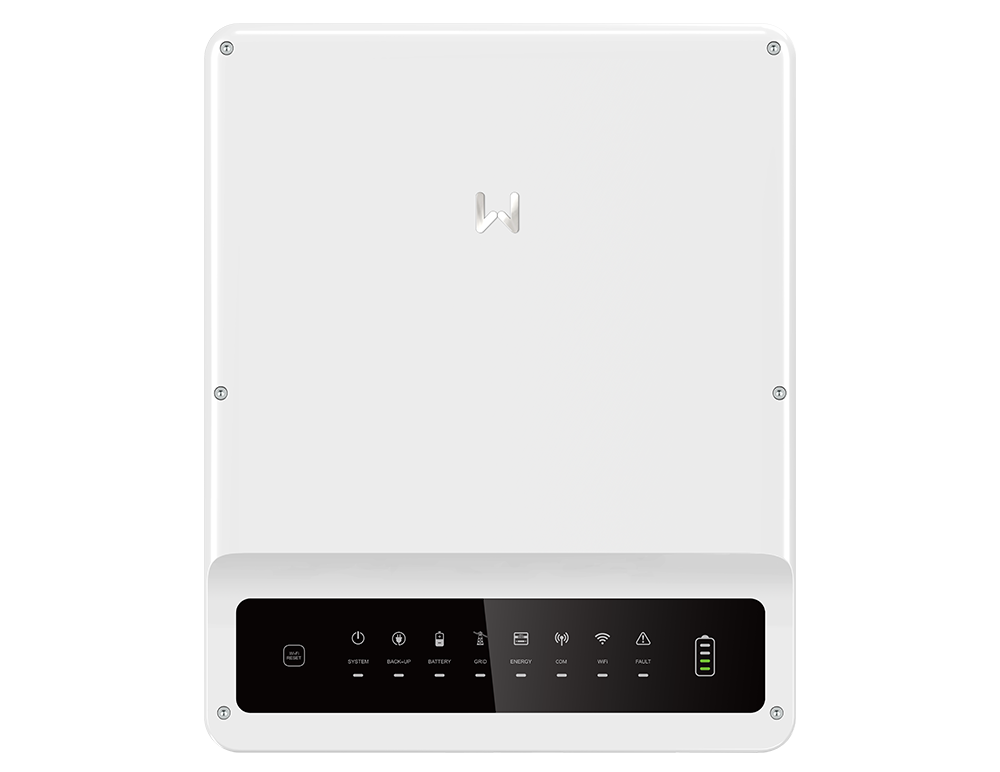

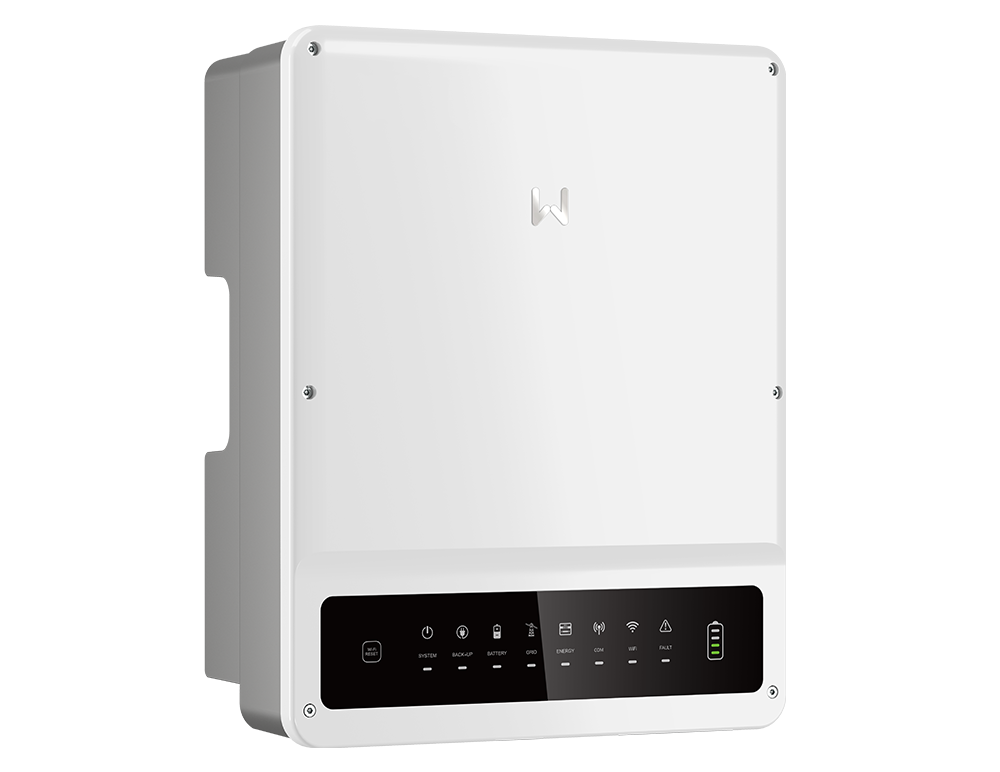

BT Series

5-10 kW | Three phase | AC-coupled retrofit inverter (HV)

DOWNLOAD PDF >>

Scroll

Fanless & quiet

Elegant & compact

The GoodWe BT series is an AC-coupled retrofit inverter, which is able to upgrade existing three-phase on-grid PV systems to storage systems. The AC-coupled solution can transform any three-phase on-grid PV system into an energy storage system with batteries, enhancing grid independence and self-consumption. It is compatible with high voltage Li-Ion batteries ranging from 180 to 600V and is also equipped with UPS-level switching for a stable and reliable power supply.


<10 ms UPS-level switching


Smart home integration with multi-protocol communications


IP65 ingress protection


Quality and robust components


Fanless & quiet

Elegant & compact

Smart Control for Smart Energy

BT Series can make a smart UPS-level switching to a back-up mode in less than 10 ms, ensuring the critical loads experience no interruption. Supporting a variety of communication protocols, BT Series makes the integration of smart home systems for users' custom needs possible. Easy, smart, and intuitive.


Smart home integration with multi-protocol communications


<10 ms UPS-level switching


Friendly & Thoughtful Design

BT Series is equipped with fanless natural convection cooling to realize quiet operation for users' peace of mind. The elegant and compact design is perfect for indoor installation.


Fanless cooling for quiet operation


Elegant and compact design

Flexible & Adaptable Applications

With the capacity of 110% AC outpout overloading, BT Series can generate 10% additional power compared to the nominal output, increasing the overall yield.With a wide battery voltage range of 85-450 V, the inverter fits users' needs flexibly and makes the energy system construction much more effortless.

110%

110% AC output overloading

450

Wide battery voltage range 85~450 V

OVERVIEW


Model

GW10K-BT

Battery Voltage Range (V)

180~600

Max. Continuous Charging / Discharging Current(A)

25/25

Nominal Output Voltage (V)

400/380, 3L/N/PE

Max. Apparent Power Output to Utility Grid (VA)

11000

Back-up Nominal Apparent Power (VA)

10000

Model

GW8K-BT

Battery Voltage Range (V)

180~600

Max. Continuous Charging / Discharging Current(A)

25/25

Nominal Output Voltage (V)

400/380, 3L/N/PE

Max. Apparent Power Output to Utility Grid (VA)

8800

Back-up Nominal Apparent Power (VA)

8000

Model

GW6K-BT

Battery Voltage Range (V)

180~600

Max. Continuous Charging / Discharging Current(A)

25/25

Nominal Output Voltage (V)

400/380, 3L/N/PE

Max. Apparent Power Output to Utility Grid (VA)

6600

Back-up Nominal Apparent Power (VA)

6000

Model

GW5K-BT

Battery Voltage Range (V)

180~600

Max. Continuous Charging / Discharging Current(A)

25/25

Nominal Output Voltage (V)

400/380, 3L/N/PE

Max. Apparent Power Output to Utility Grid (VA)

5500

Back-up Nominal Apparent Power (VA)

5000
