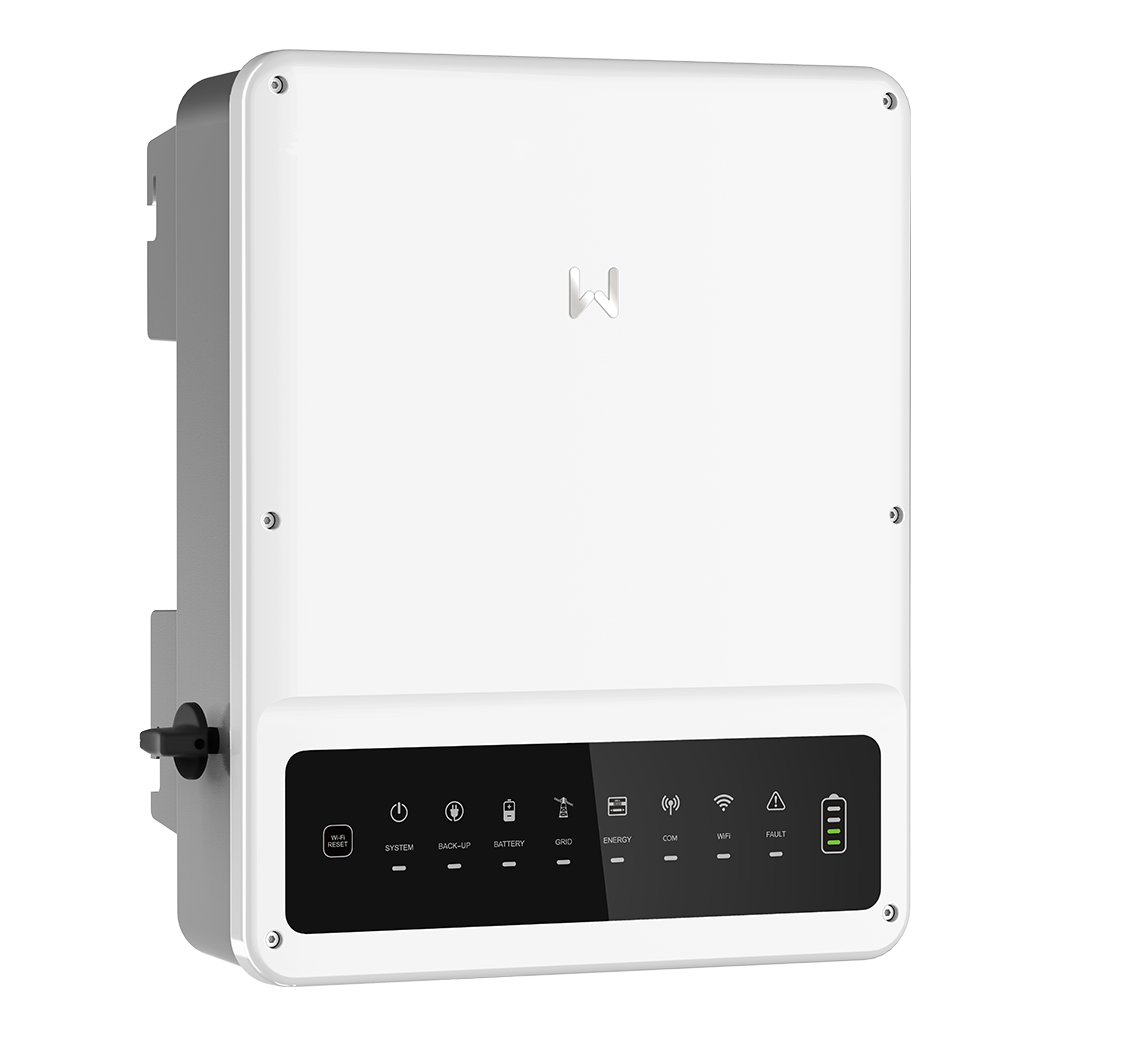

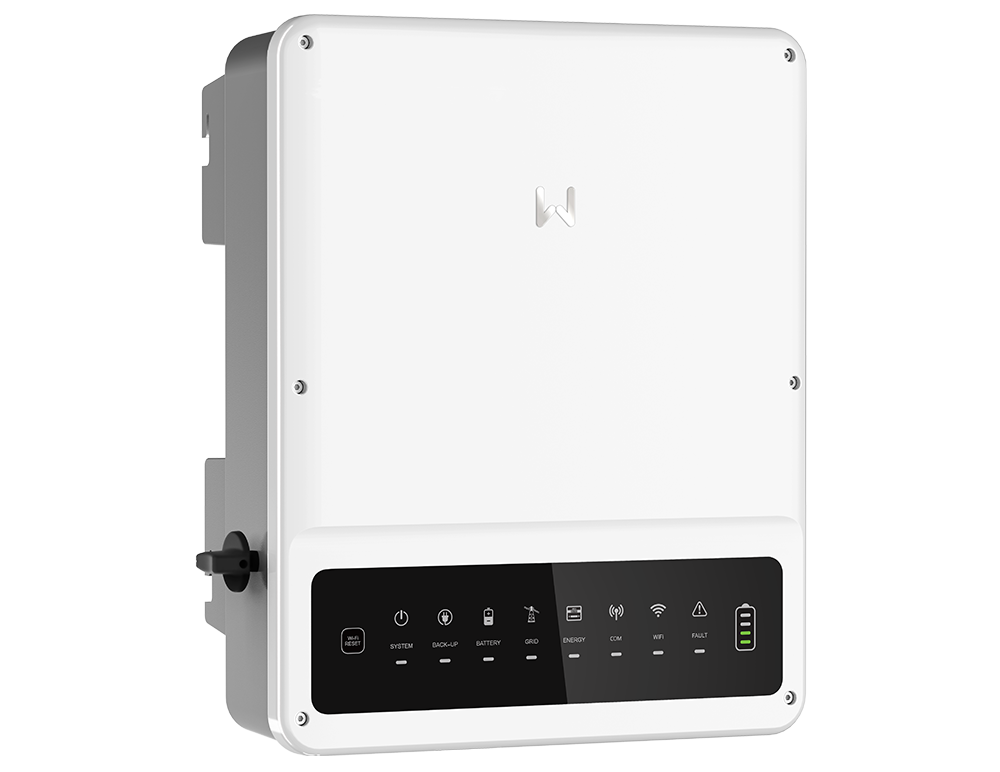

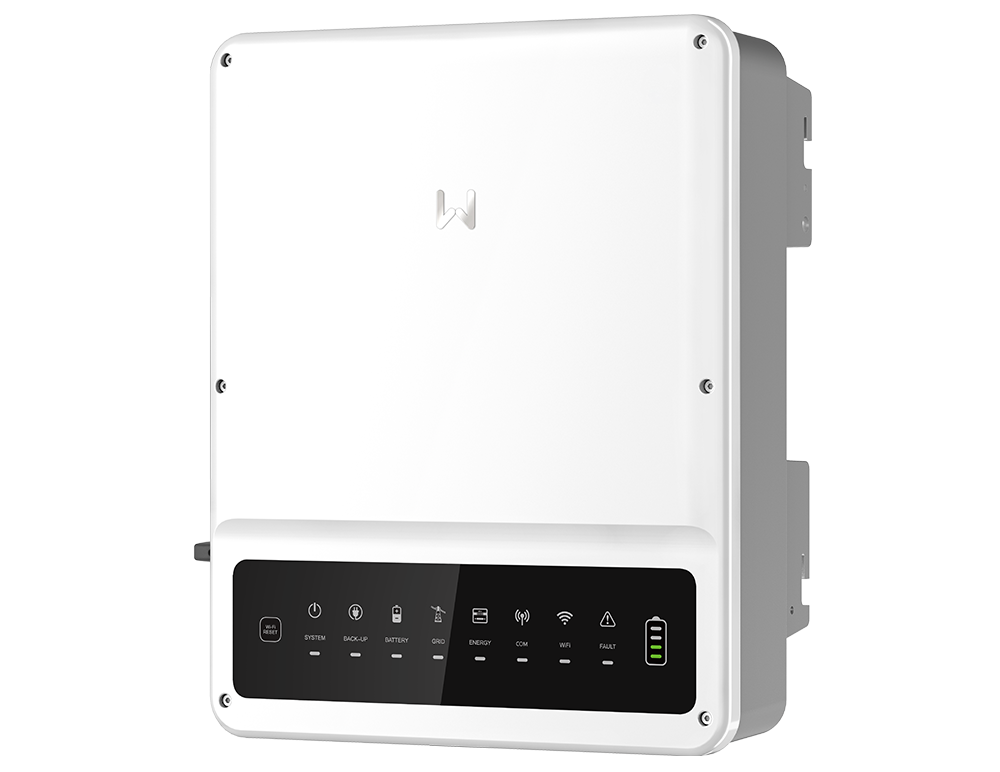

EH Series

3.6-6 kW | Single phase | 2 MPPTs | Hybrid ready (HV)

DOWNLOAD PDF >>

Scroll

Fanless & quiet

Elegant & compact

The EH is compatible with high voltage batteries (85-450V) to empower a flexible system design. As the core of reliable electricity supply, EH series can automatically realize the UPS-level switching to the back-up mode in less than 10 ms, ensuring that critical loads experience with no interruption. Being communicative by supporting multiple communication protocols, it allows for smart home integration and maximized system status transparency. It future-proves the extension for your power system by offering a Battery Ready option for users who might wish to acquire a complete energy storage solution eventually. By simply purchasing an activation code, users can easily upgrade EH to a complete energy storage solution.


Smart home integration with multi-protocol communications


IP65 ingress protection


<10 ms UPS-level switching


Quality and robust components


Fanless & quiet

Elegant & compact

Smart Control for Smart Energy

EH Series can make a smart UPS-level switching to back-up mode in less than 10 ms, ensuring the critical loads experience no interruption. Supporting a variety of communication protocols, EH Series makes the integration of smart home systems for users' custom needs possible. Easy, smart, and intuitive.


<10 ms UPS-level switching


Smart home integration with multi-protocol communications


Flexible & Adaptable Applications

The power supply ability in backup mode supports large loads for critical operations. With a wide battery voltage range of 85-450V, the inverter fits users' needs flexibly and makes the energy system construction much more effortless.


Strong backup power supply


Wide battery voltage range 85~450 V

OVERVIEW


Model

GW6000-EH

Battery Voltage Range (V)

85~460

Max. Continuous Charging / Discharging Current(A)

25/25

Max. Input Current per MPPT (A)

12.5/12.5

Max. Apparent Power Output to Utility Grid (VA)

6000/6600 (CEI 0-21)

Back-up Nominal Apparent Power (VA)

6000

Model

GW5000-EH

Battery Voltage Range (V)

85~460

Max. Continuous Charging / Discharging Current(A)

25/25

Max. Input Current per MPPT (A)

12.5/12.5

Max. Apparent Power Output to Utility Grid (VA)

5000/5500 (CEI 0-21)

Back-up Nominal Apparent Power (VA)

5000

Model

GW3600-EH

Battery Voltage Range (V)

85~460

Max. Continuous Charging / Discharging Current(A)

25/25

Max. Input Current per MPPT (A)

12.5/12.5

Max. Apparent Power Output to Utility Grid (VA)

3600/3960 (CEI 0-21)

Back-up Nominal Apparent Power (VA)

3600
