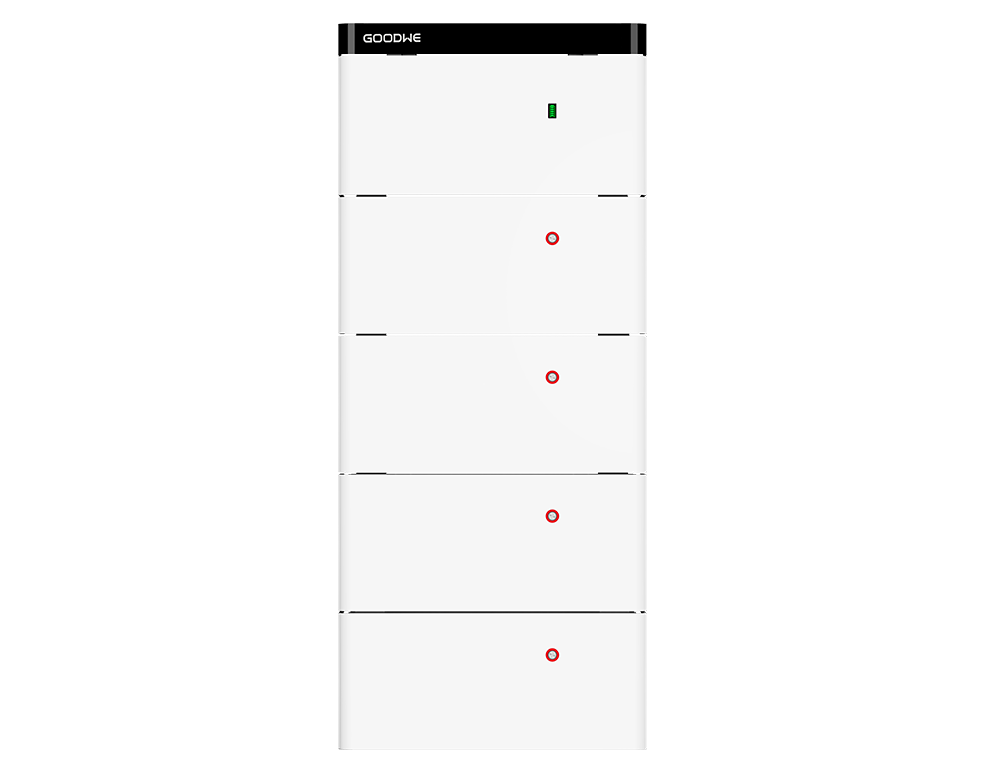

Lynx Home S Series

(North America excluded) 7.7-20.5 kWh | High voltage battery

DOWNLOAD PDF >>

Scroll

Rapid charge

IP65

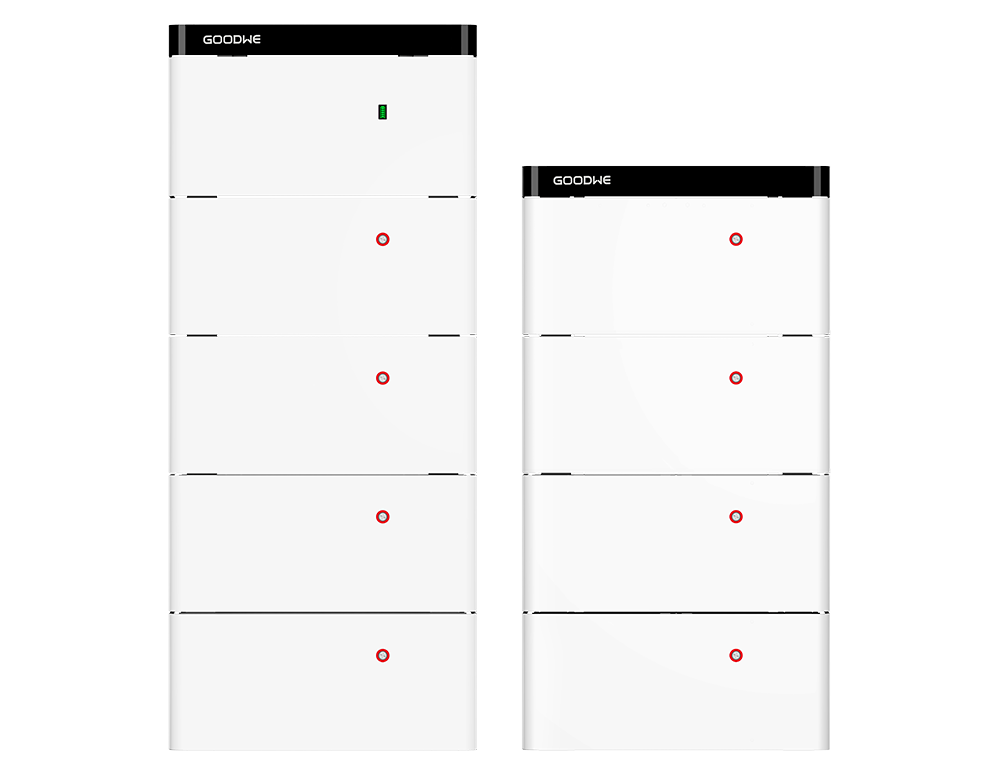

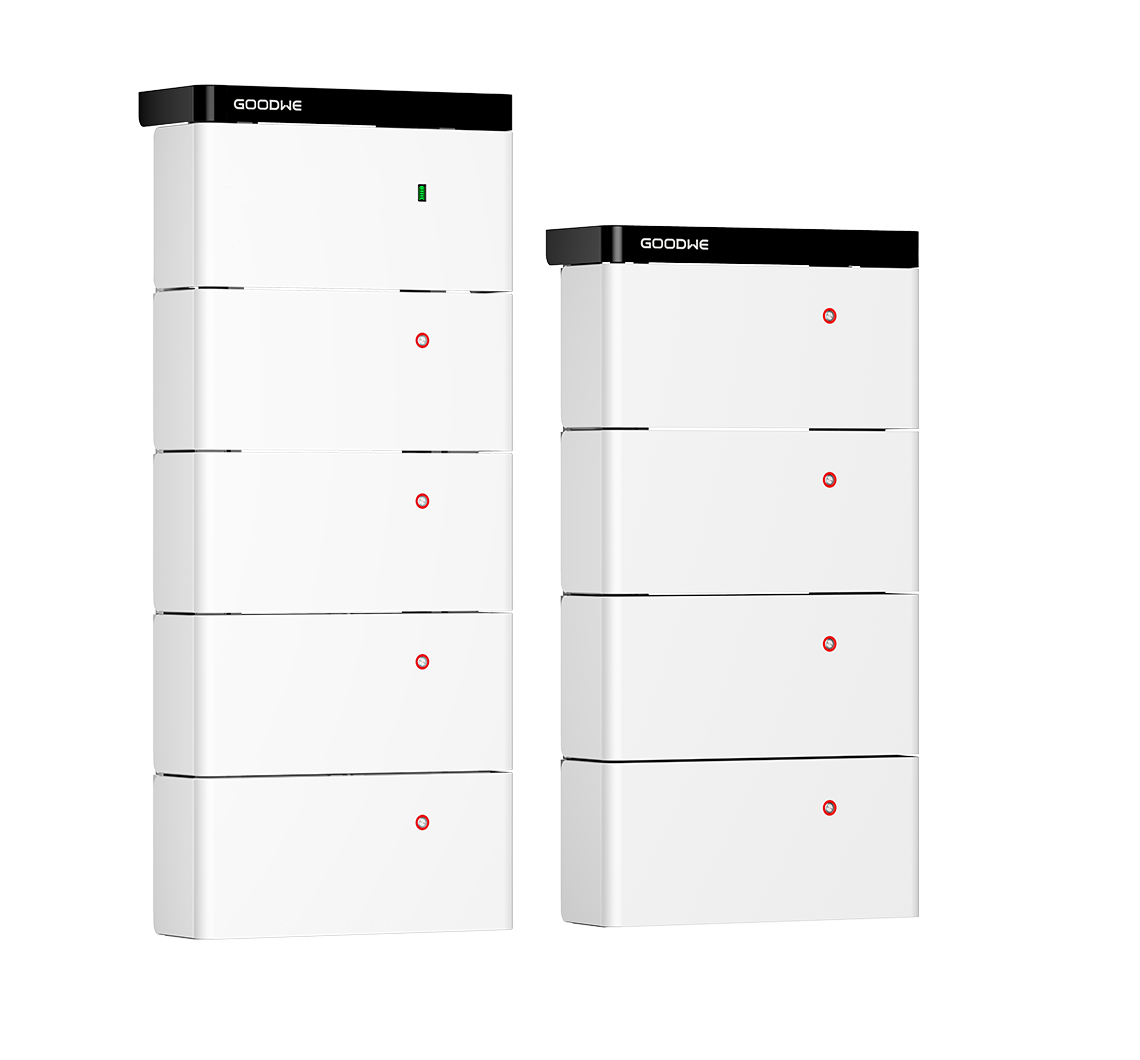

GoodWe’s Lynx Home S Series is a high voltage battery that offers multiple energy storage options through an expandable modular design (3-8 modules combined), which further simplifies installation and O&M with multiple smart functions. The safest battery cell technology (LFP) comes with a high charging rate, ensuring superior performance and supplying robust power for your life.


Ultra rapid charge


Auto under-voltage reboot


Remote diagnosis & upgrade


IP65 protection level


Rapid charge

IP65

Charge your battery within one hour

When Lynx Home S Series batteries are compatible with inverters that allows 50A max. charging current, the whole system can be fully charged within only one hour.


Easy to install and maintain

The GoodWe Lynx Home S Series is especially designed with IP65 for more flexible and easier installation indoor or outdoor. With inbuilt remote diagnosis & upgrade and auto under-voltage reboot functions, Lynx Home S Series helps you economize on the time-consuming installations and maintenance with minimalized efforts.


Auto under-voltage reboot


Remote diagnosis & upgrade


Wall-/floor-mounted Installation

OVERVIEW


Model

LX S7.5-H

Usable Energy (kWh)

6.91

Cell Type

LFP (LiFePO4)

Rated Voltage (V)

153.6

Weight (kg)

126

Max Charge/Discharge Current (A)

50

Model

LX S10-H

Usable Energy (kWh)

9.22

Cell Type

LFP (LiFePO4)

Rated Voltage (V)

204.8

Weight (kg)

163

Max Charge/Discharge Current (A)

50

Model

LX S13-H

Usable Energy (kWh)

11.52

Cell Type

LFP (LiFePO4)

Rated Voltage (V)

256

Weight (kg)

200

Max Charge/Discharge Current (A)

50

Model

LX S15-H

Usable Energy (kWh)

13.83

Cell Type

LFP (LiFePO4)

Rated Voltage (V)

307.2

Weight (kg)

237

Max Charge/Discharge Current (A)

50

Model

LX S18-H

Usable Energy (kWh)

16.13

Cell Type

LFP (LiFePO4)

Rated Voltage (V)

358.4

Weight (kg)

274

Max Charge/Discharge Current (A)

50

Model

LX S20-H

Usable Energy (kWh)

18.43

Cell Type

LFP (LiFePO4)

Rated Voltage (V)

409.6

Weight (kg)

311

Max Charge/Discharge Current (A)

50
