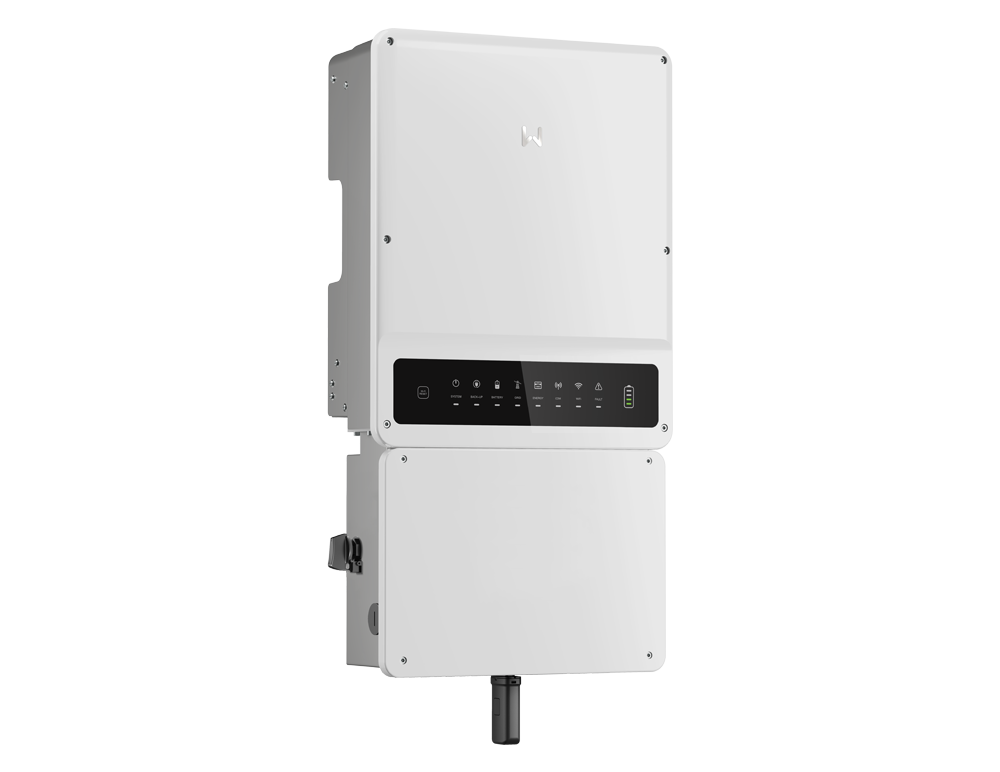

A-ES Series

(Americas Only) 5-9.6 kW | Split phase | up to 4 MPPTs | Hybrid inverter (HV)

DOWNLOAD PDF >>

Scroll

150% oversizing

AFCI

AC bypass

The GoodWe A-ES seies is a split-phase hybrid inverter designed to increase self-consumption of your generated solar energy. GoodWe A-ES is compatible with high voltage (80-495V) batteries with a power capacity ranging from 5 kW to 9.6 kW. With up to 4 MPPTs, the A-ES inverter seamlessly adapts to complex residential rooftops. Equipped with rapid battery charge functionality and perfectly capable of powering large loads in back-up mode (up to 9.6 kW).


Optional AC bypass switch


4 MPPTs & 150% DC input oversizing


Integrated AFCI & rapid shutdown


In-built smart meter


150% oversizing

AFCI

AC bypass

Integrated AFCI & Rapid Shutdown

The GoodWe A-ES has been designed to meet the safety regulations of the American market, including Arc Fault Circuit Interrupter and Rapid Shutdown. GoodWe does not only deliver efficiency, reliability, but security as well.


4 MPPTs & 150% DC Input Oversizing

Up to 4 MPPTs, the A-ES (5-9.6 kW) is the perfect solution to feed solar power to large residential properties, covering all the corners of your rooftop and maximizing total solar generation. With 150% DC input oversizing capability, the A-ES series is driven to its full capacity by extra reflections added to the back of bifacial panels, designed to increase power output even under low solar radiation.

4

UP TO 4 MPPTS

150%

DC INPUT OVERSIZING

OVERVIEW


Model

GW5000A-ES

Battery Voltage Range (V)

80~495

Max. Charging Current(A)

50

Max. Discharging Current (A)

50

Number of MPPTs / Strings per MPPT

2/1

Output Voltage Range (Vac)

211 to 264 @240

Model

GW6000A-ES

Battery Voltage Range (V)

80~495

Max. Charging Current(A)

50

Max. Discharging Current (A)

50

Number of MPPTs / Strings per MPPT

2/1

Output Voltage Range (Vac)

211 to 264 @240

Model

GW7000A-ES

Battery Voltage Range (V)

80~495

Max. Charging Current(A)

50

Max. Discharging Current (A)

50

Number of MPPTs / Strings per MPPT

4/1

Output Voltage Range (Vac)

211 to 264 @240

Model

GW7600A-ES

Battery Voltage Range (V)

80~495

Max. Charging Current(A)

50

Max. Discharging Current (A)

50

Number of MPPTs / Strings per MPPT

4/1

Output Voltage Range (Vac)

211 to 264 @240

Model

GW8600A-ES

Battery Voltage Range (V)

80~495

Max. Charging Current(A)

50

Max. Discharging Current (A)

50

Number of MPPTs / Strings per MPPT

4/1

Output Voltage Range (Vac)

211 to 264 @240

Model

GW9600A-ES

Battery Voltage Range (V)

80~495

Max. Charging Current(A)

50

Max. Discharging Current (A)

50

Number of MPPTs / Strings per MPPT

4/1

Output Voltage Range (Vac)

211 to 264 @240
