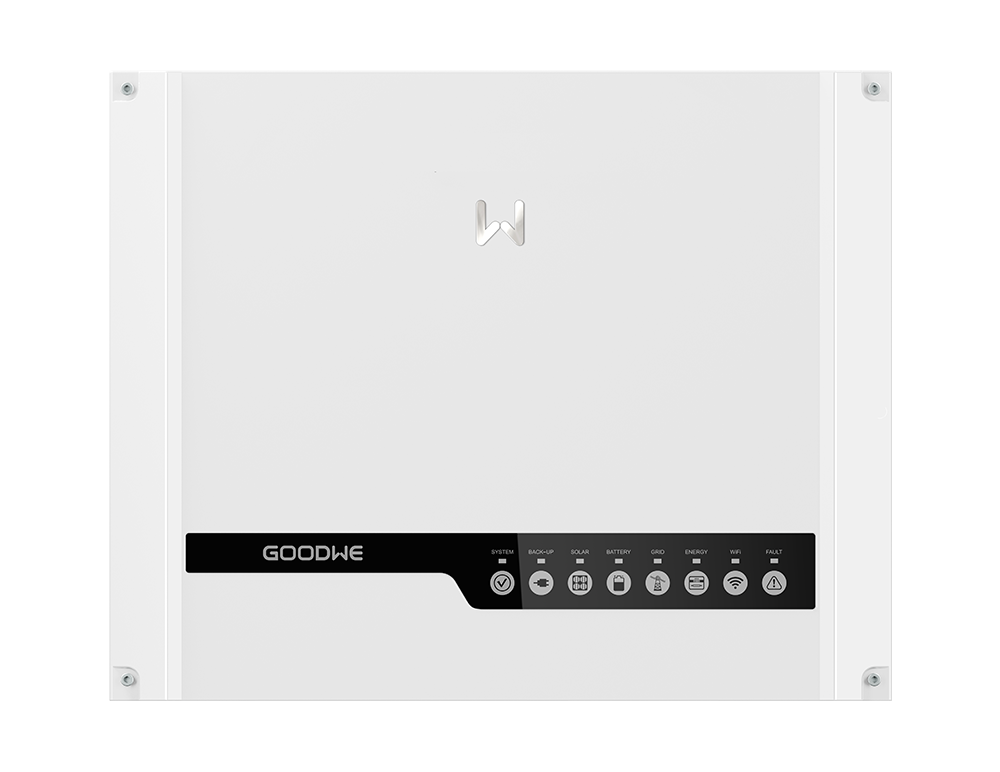

ES Series

3.6-5 kW | Single phase | 2 MPPTs | Hybrid inverter (LV)

DOWNLOAD PDF >>

Scroll

UPS-level Switching

100A

The GoodWe ES series bi-directional energy storage inverter can be used for both on-grid and off-grid PV systems, with the ability to control the flow of energy intelligently. During the day, the PV array generates electricity which can be provided either to the loads, fed into the grid or charge the battery, depending on the economics and set-up. The electricity stored can be released when the loads require it during the night, including inductive loads such as air conditioners or refrigerators. Additionally, the power grid can also charge storage devices via the inverter. An all-round intelligent system for maximum energy flexibility.


Charge controller and inverter integrated


Up to 100A max. charging/discharging current


Export control (zero export)


IP65 dustproof and waterproof


<10 ms UPS-level switching


Fanless design, long lifespan


UPS-level Switching

100A

4.6 kW Charging/discharging Capacity

With up to 100A maximum charging/discharging current, GoodWe ES series can charge batteries with 4.6 kW power at once.


IP65 Protection Level

GoodWe ES Series is equipped with IP65 protection level, which allows both indoor and outdoor installation.

OVERVIEW


Model

GW3648D-ES

Battery Voltage Range (V)

48

Max. Charging Current(A)

75

Max. Discharging Current (A)

75

Number of MPPTs

2

Number of Strings per MPPT

1

Model

GW5048D-ES

Battery Voltage Range (V)

48

Max. Charging Current(A)

100

Max. Discharging Current (A)

100

Number of MPPTs

2

Number of Strings per MPPT

1
