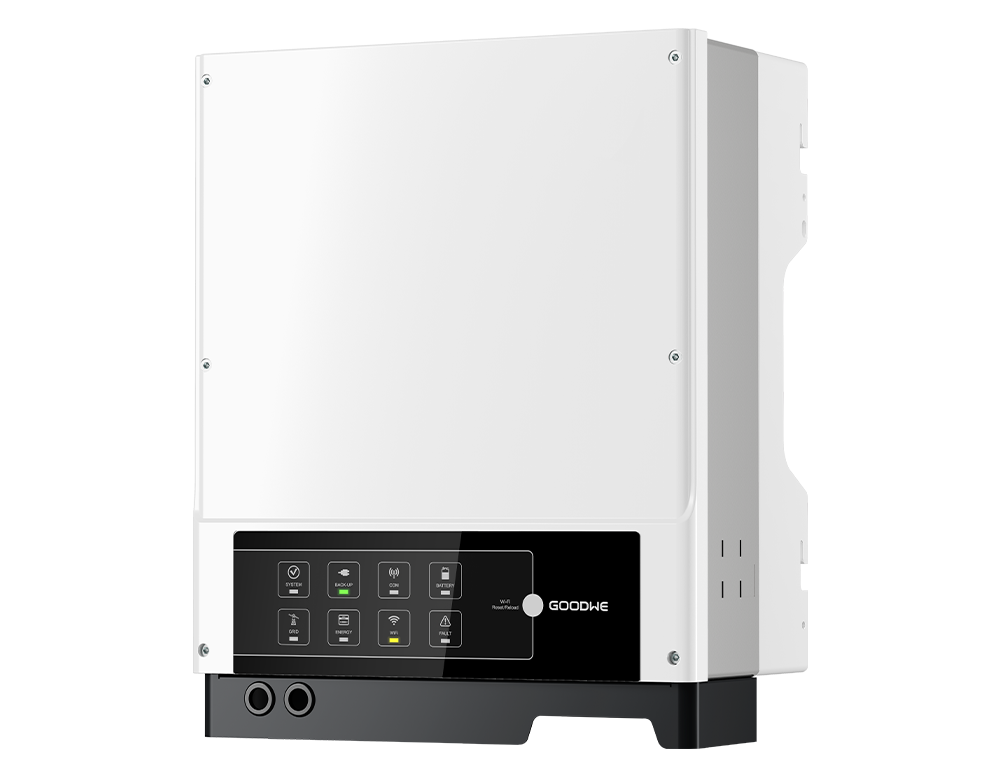

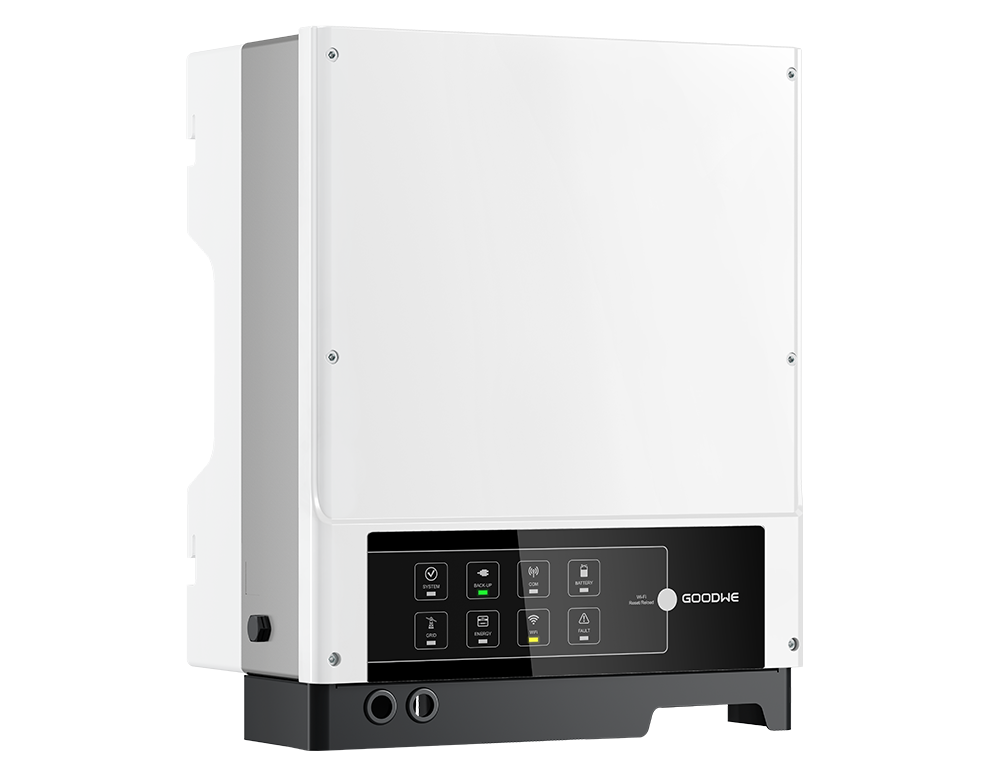

SBP Series

3.6-5 kW | Single phase | AC-coupled retrofit inverter (LV)

DOWNLOAD PDF >>

Scroll

Fanless & Quiet

Elegant & compact

The GoodWe SBP series is the world’s first AC-coupled battery storage retrofit solution with UPS function for single-phase and three-phase systems. It can effectively upgrade any existing string inverter system by adding a backup battery. Capable of being grid-interactive, it allows users to store surplus power and sell it back to the grid when demand peaks and the price of electricity is at its highest. With a UPS-level switching function (switching time <10 ms), the GoodWe SBP provides an uninterruptible power supply to inductive loads such as air conditioners or refrigerators. It runs reliably under even the most extreme conditions with metal aluminium housing with IP65 protection.


IP65 ingress protection


Quality and robust components


Smart home integration with multi-protocol communications


<10 ms UPS-level switching


Fanless & Quiet

Elegant & compact

Smart Control for Smart Energy

SBP Series can make a smart UPS-level switching to back-up mode in less than 10 ms, ensuring the critical loads experience no interruption. Supporting a variety of communication protocols, SBP series makes the integration of smart home systems for users' custom needs possible. Easy, smart, and intuitive.


<10 ms UPS-level switching


Smart home integration with multi-protocol communications


Friendly & Thoughtful Design

SBP Series is equipped with fanless cooling to realize quiet operation for users' peace of mind. The elegant and compact design is perfect for indoor installation.


Fanless cooling for quiet operation


Elegant and compact design

OVERVIEW


Model

GW5000S-BP

Battery Voltage Range (V)

40~60

Max. Continuous Charging / Discharging Current(A)

100/100

Nominal Output Voltage (V)

230

Max. Apparent Power Output to Utility Grid (VA)

5000

Back-up Nominal Apparent Power (VA)

5000

Model

GW3600S-BP

Battery Voltage Range (V)

40~60

Max. Continuous Charging / Discharging Current(A)

75/75

Nominal Output Voltage (V)

230

Max. Apparent Power Output to Utility Grid (VA)

3680

Back-up Nominal Apparent Power (VA)

3680
