IP65
10000-cycle

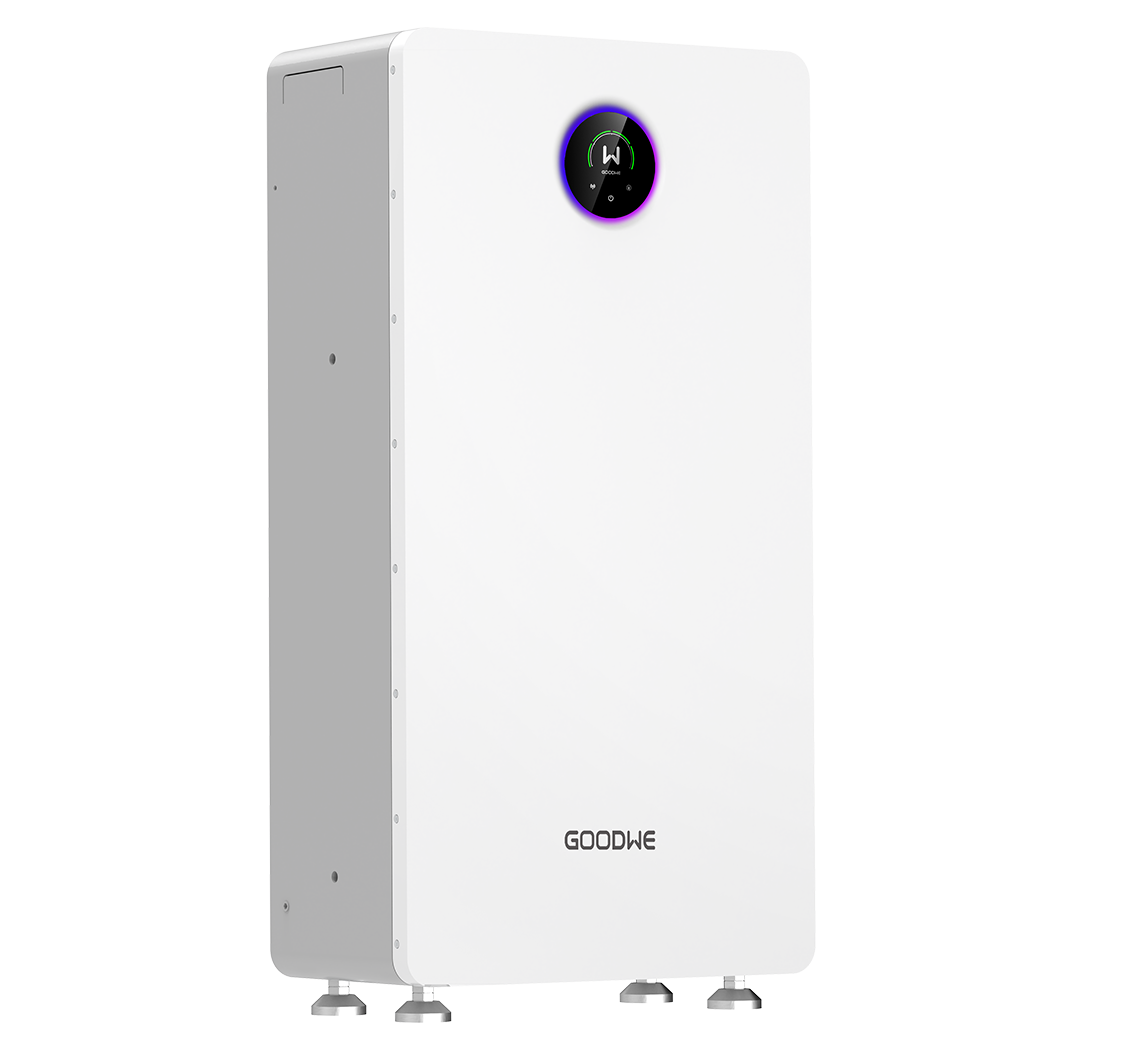

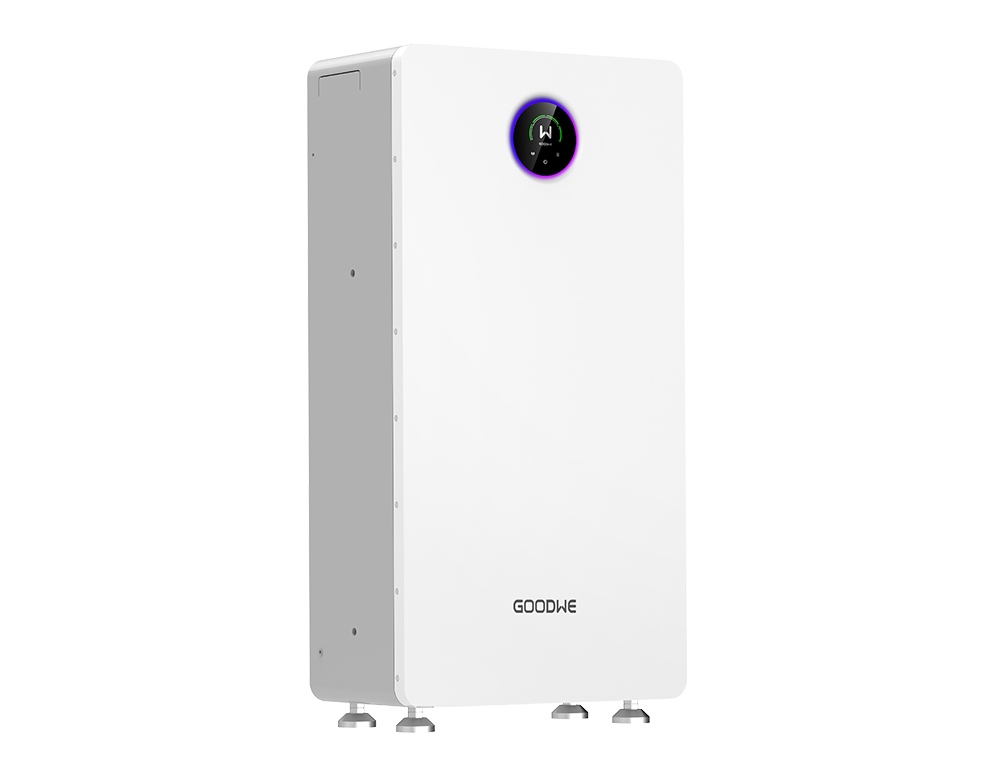

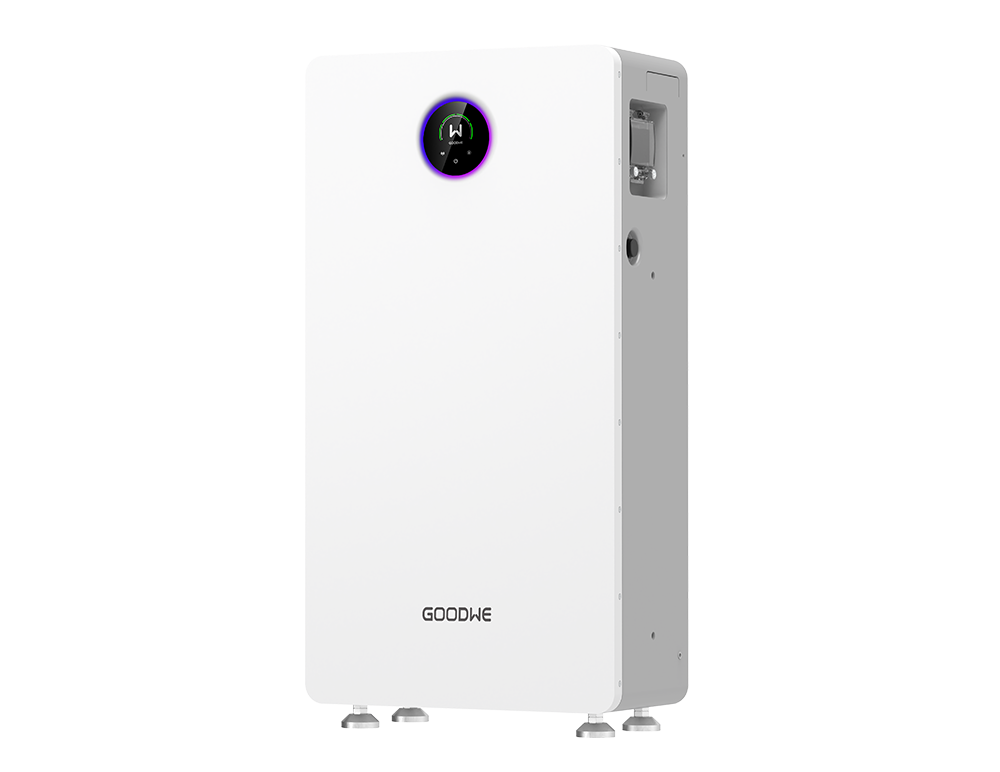

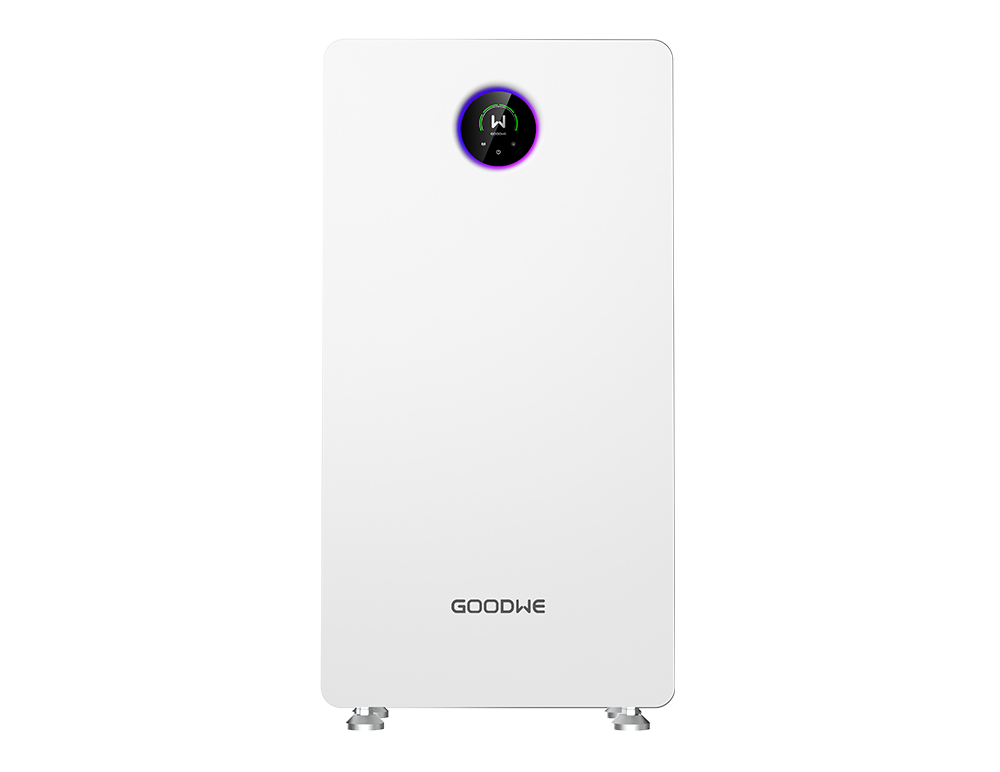

The Lynx A G4 Series 16kWh battery is a high-capacity, low-voltage energy storage solution designed for residential use. It allows homeowners to store excess solar energy for peak demand and backup power, increasing energy independence and maximizing self-consumption. Fully compatible with GoodWe low-voltage inverters, it delivers seamless integration and optimized performance for a reliable and efficient home energy experience.
314Ah Cells, 10000 Cycles: Built for long-term reliability
Thermal-Electric Separation & cell-level heat isolation
Dual-Terminal Daisy-Chain Design: No busbar needed, full flexibility
IP65 & C5M Protection: Longer life & higher durability
IP65
10000-cycle
High Performance
Engineered for demanding energy needs, the system delivers strong and stable power output by combining high-rate charge/discharge capability with durable, high-capacity cells, ensuring reliable long-term performance.
314Ah Cells, 10000 Cycles: Built for long-term reliability
-20°C to 55°C Operation: Harsh environment ready
Multi-layer Safety
The Lynx A G4 Series battery features a multi-layer safety design that safeguards system operation—combining insulation, isolation, and active protection to minimize risks across diverse environments.
IP65 & C5M Protection: Longer life & higher durability
Thermal-Electric Separation & cell-level heat isolation
Aerosol Fire Suppression System: Active fire control
Flexible Installation & Scalable Design
Built for ultimate flexibility, enabling versatile installation, effortless expansion, and simplified wiring to meet evolving energy needs.
Install Your Way, Move with Ease: Wall or floor mounting with optional wheels
Up to 30 Units Parallel: Scale power as you grow
Dual-Terminal Daisy-Chain Design: No busbar needed, cleaner wiring & lower cost
OVERVIEW
Model
GW16.1-BAT-LV-G10
Usable Energy (kWh)
≥14.9
Nominal Voltage (V)
51.2
Max. Charge / Disharge Current (A)
157 / 200
Weight (kg)
≤122
Ingress Protection Rating
IP65
