XS PLUS+ Series

0.7-3kW | Single Phase | 1 MPPT

DOWNLOAD PDF >>

Scroll

A4-sized

Fanless & quiet

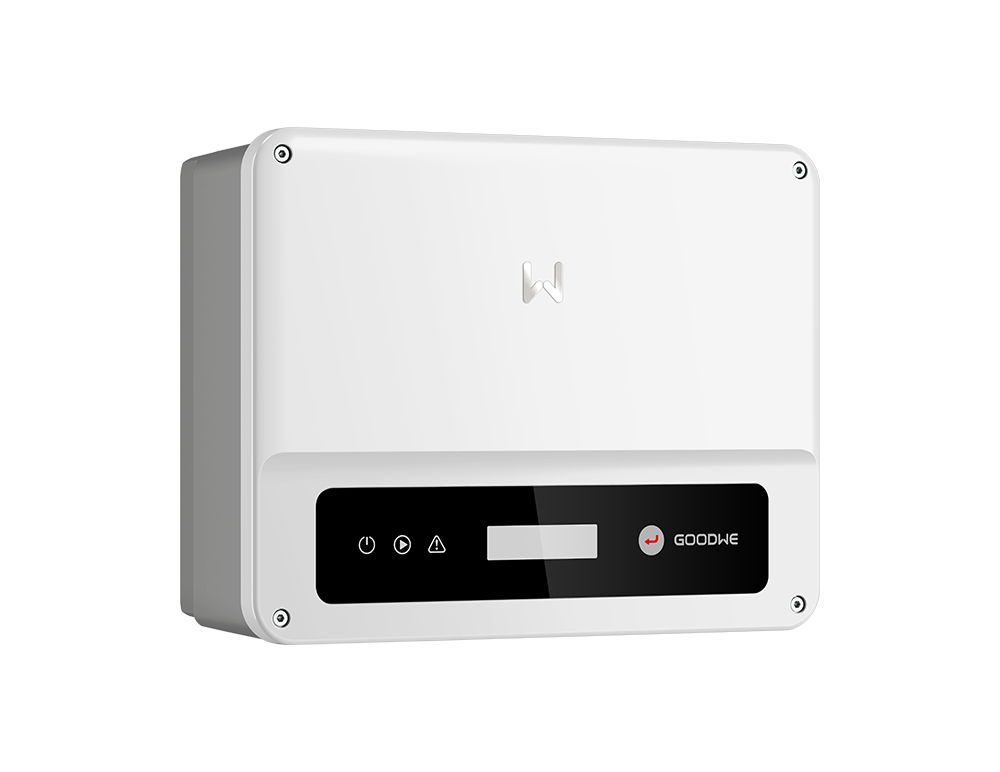

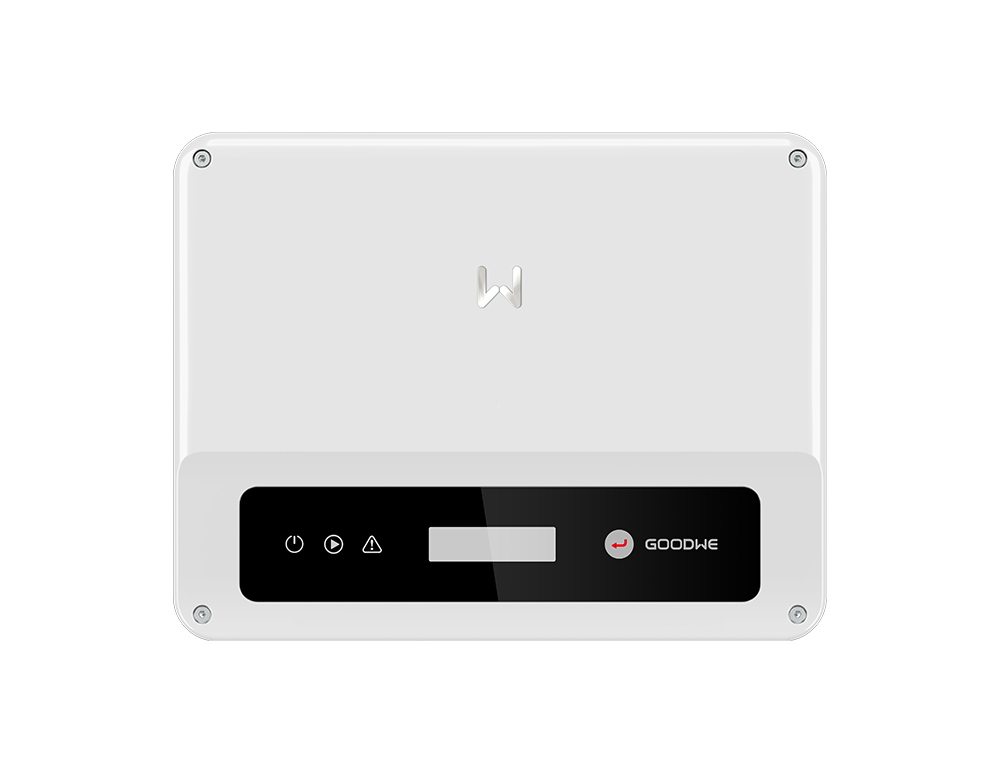

GoodWe XS Plus+ series is an ultra-small residential solar inverter specifically designed to bring comfort and quiet operation as well as high efficiency to households. Its capacity ranges from 0.7 kW to 3.0 kW and its most outstanding characteristic is lightweight, which is only 5.8 kg and as well as its extremely compact size equivalent to an A4 paper, that make it particularly easy to carry & install. Remarkably, it offers 130% of DC input oversizing, and it's able to achieve maximum European efficiency of 97.2% for maximum performance. Conveniently, the communication options available on this inverter are both LAN and Wi-Fi for smart home integration.



Load consumption monitoring


Power export limit


IP65 ingress protection


Quality and robust components


A4-sized

Fanless & quiet

Smart Control & Monitoring

Users can enjoy smart energy management with 24-hour load consumption monitoring enabled by GoodWe HomeKit 1000. Thanks to the integrated export power limit, XS Plus Series can adapt to the power limit imposed by the local energy provider. Smart solution, smart energy.


Load consumption monitoring


Power export limit


Friendly & Thoughtful Design

Weighing less than 6 kg, the inverter can be easily installed, and a compact A4 size and the fanless natural convection cooling is perfect for indoor installation.


Fanless design for quiet operation


A4 size with light weight

High Power Generation

Even though the XS Plus Series is extremely compact and tiny, it doesn’t mean standard features are sacrificed. The XS Plus is still equipped with 130% DC oversizing capability which allows full load output during extreme weather conditions. With the capacity of 110% AC outpout overloading, XS Plus Series can generate 10% additional power compared to the nominal output, increasing the overall yield. The 40 V start-up voltage allows the inverter to kick in earlier during the day and presents more power generation.

130%

Up to 130% DC input oversizing

110%

Up to 110% AC output overloading

40V

40V start-up voltage

OVERVIEW


Model

GW3000-XS-11

Max. Input Voltage (V)

600

Max. Input Current per MPPT (A)

15

Number of MPP trackers/Number of Strings per MPPT

1/1

Weight (kg)

5.8

Nominal Output Voltage (V)

220/230

Model

GW2500-XS-11

Max. Input Voltage (V)

600

Max. Input Current per MPPT (A)

15

Number of MPP trackers/Number of Strings per MPPT

1/1

Weight (kg)

5.8

Nominal Output Voltage (V)

220/230

Model

GW700-XS-11

Max. Input Voltage (V)

500

Max. Input Current per MPPT (A)

15

Number of MPP trackers/Number of Strings per MPPT

1/1

Weight (kg)

5.8

Nominal Output Voltage (V)

230

Model

GW1000-XS-11

Max. Input Voltage (V)

500

Max. Input Current per MPPT (A)

15

Number of MPP trackers/Number of Strings per MPPT

1/1

Weight (kg)

5.8

Nominal Output Voltage (V)

230

Model

GW1500-XS-11

Max. Input Voltage (V)

500

Max. Input Current per MPPT (A)

15

Number of MPP trackers/Number of Strings per MPPT

1/1

Weight (kg)

5.8

Nominal Output Voltage (V)

230

Model

GW2000-XS-11

Max. Input Voltage (V)

500

Max. Input Current per MPPT (A)

15

Number of MPP trackers/Number of Strings per MPPT

1/1

Weight (kg)

5.8

Nominal Output Voltage (V)

230
