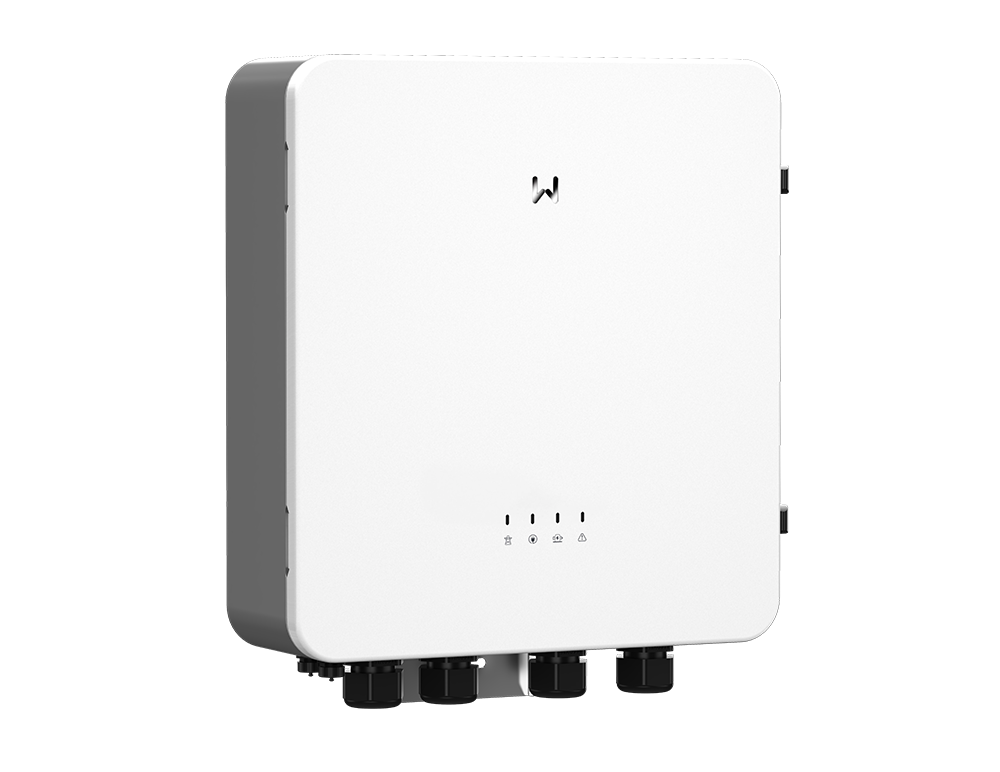

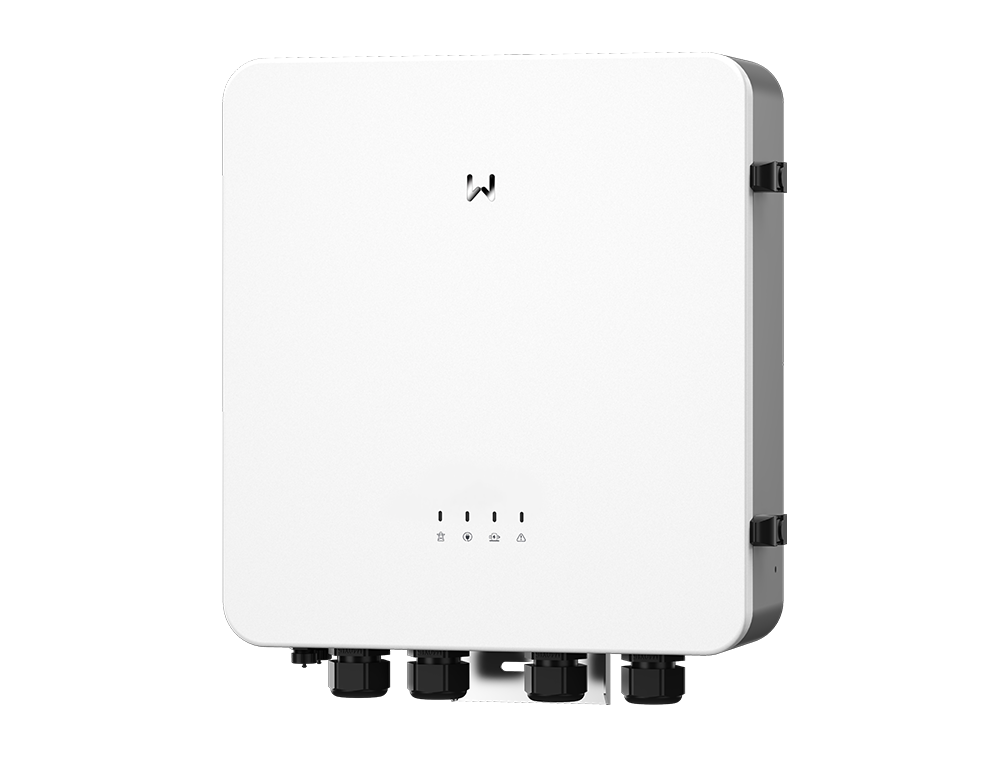

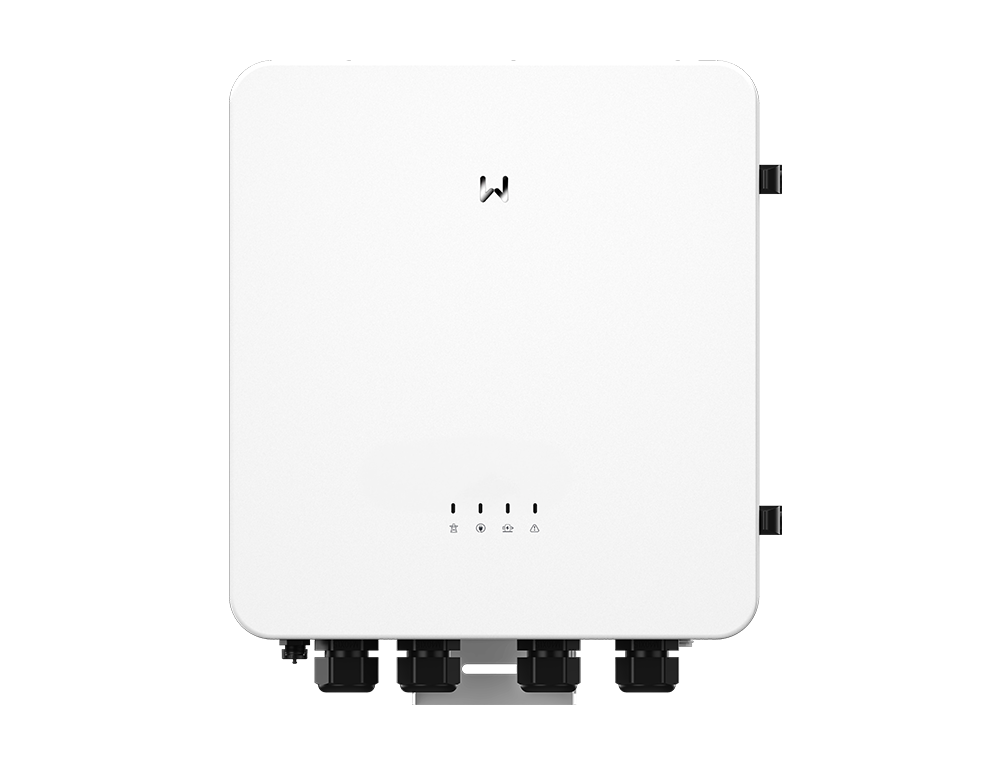

The Residential Static Transfer Switch (STS) is an intelligent switching solution designed for the ESA Series All-in-One energy storage system, supporting both single-phase and three-phase applications. It enables fast and seamless transitions between grid-connected and backup operation, ensuring uninterrupted power supply for essential household loads. During grid outages, the STS enables seamless transfer of critical loads to the ESA system and smooth reconnection once grid power is restored, enhancing home energy resilience, reliability, and energy independence.
＜4 ms Seamless Switching, No Load Disruption
Up to 100 A Bypass Current, Whole-Home Backup Ready
High-Power Load Support, Fast Response, Stable Power
Flexible Integration with ESA All-in-One (Single & Three-Phase)
Automatic Generator Control, Smarter Off-Grid Backup
Simplified Installation, Lower System Cost
OVERVIEW
Model
GW60K-STS-G10
Nominal Voltage (V)
220 / 380, 230 / 400, 240 / 415, 3L / N / PE
Voltage Range (V)
114 ~ 280
Max. Bypass Current (A)
100
Ingress Protection Rating
IP54
Model
GW30K-STS-G10
Nominal Voltage (V)
220 / 380, 230 / 400, 240 / 415, 3L / N / PE
Voltage Range (V)
114 ~ 280
Max. Bypass Current (A)
63
Ingress Protection Rating
IP54
