SMT Series

50-60kW ∣Up to 6 MPPTS∣Three-phase

DOWNLOAD PDF >>

Scroll

200V-950V

Fuse-free

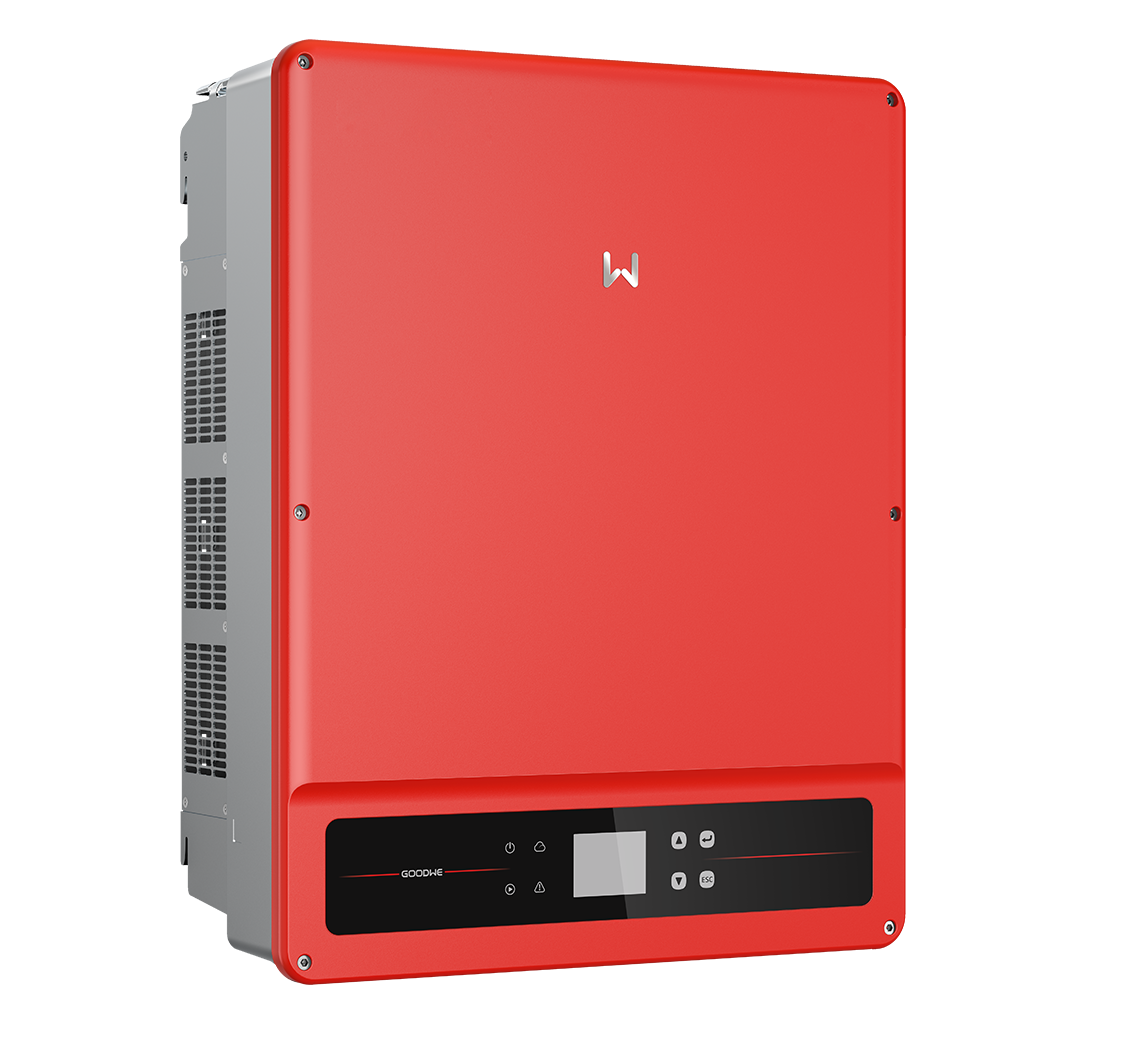

GoodWe SMT 50-60kW Series inverter is ideal for medium and large-scale commercial installations.

Harvest solar energy and generate environmental-friendly power for increased return on investment brought by high yields with your commercial PV system. Its unique fuse-free design makes it exceptionally easy to maintain for operators, saving time and money. The superb safety design provides reliable protections in outdoor installation and guarantees stable usage and generation even in extreme conditions. SMT 50-60kW Series is a pioneering inverter for your business and value.



Remote data monitoring


Multi-protocol compatibility


Type II Surge Protection for both DC and AC


IP65 ingress protection


200V-950V

Fuse-free

Friendly & Thoughtful Design

200V-950V wide input operating voltage range allows the solar system to start at an early stage, fully utilizing the daytime to maximizing solar powered energy generation. The fuse-free design without consumable parts significantly reduces the operating time and costs.


200V-950V wide input operating voltage range


Fuse-free design


High Power Generation for High Return

With max. 15A DC input current per string, the SMT 50-60kW Series is compatible with different types of high-power modules, which ensures more solar power absorption making it one of the most productive inverters on the market. Up to 6 MPP trackers guarantee optimal energy production even in shade. The maximum energy yields brings you high return of investment (ROI) for your business.

15

Maximum 15 A DC input current per string

6

Up to 6 MPPTs

150%

150% DC input oversizing

110%

110% AC output overloading

98.8%

98.8% Max. Efficiency

OVERVIEW


Model

GW60KS-MT

Max. Input Voltage (V):

1100

Max. Input Current per MPPT (A):

30

Number of MPP trackers/Number of Strings per MPPT:

6/2

Max. Efficiency :

98.6%

Nominal Output Voltage (V) :

400, 3L/N/PE or 3L/PE

Model

GW50KS-MT

Max. Input Voltage (V):

1100

Max. Input Current per MPPT (A):

30

Number of MPP trackers/Number of Strings per MPPT:

5/2

Max. Efficiency :

98.6%

Nominal Output Voltage (V) :

400, 3L/N/PE or 3L/PE
