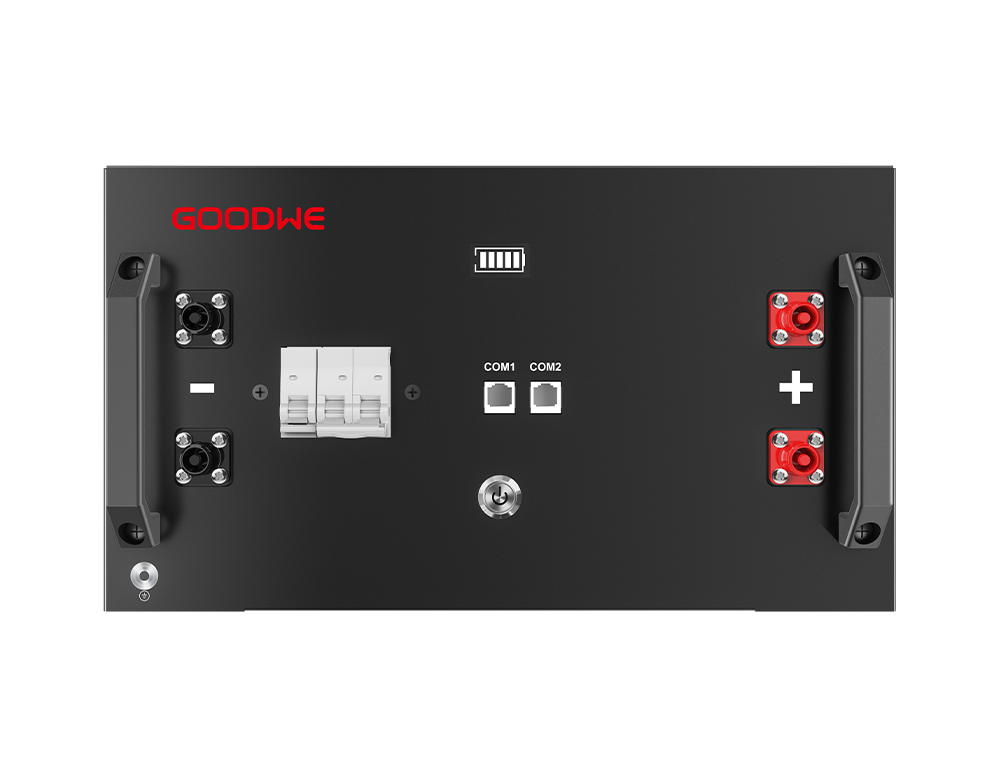

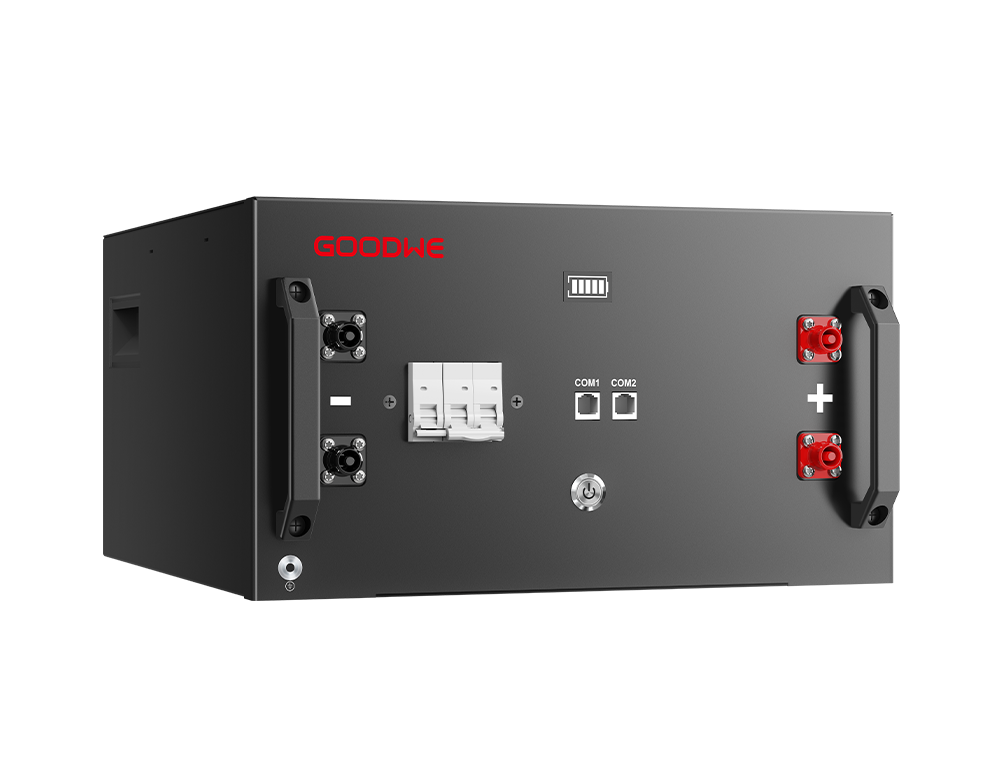

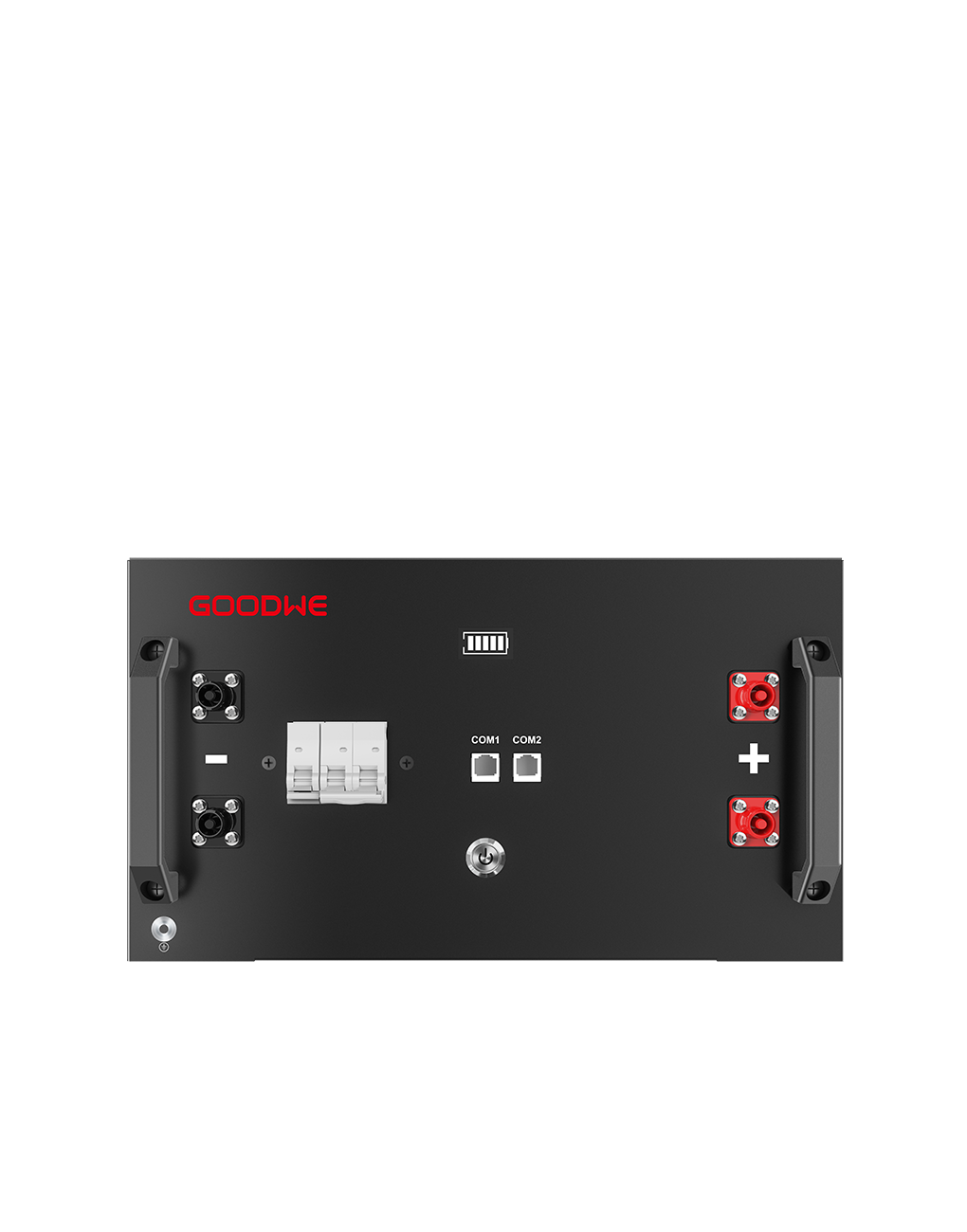

GoodWe’s SECU-A Series is a low voltage lithium battery, which is made from safe and durable lithium iron phosphate. The battery follows a modular design, making it extendable. As a plug and play device, it can be installed easily and quickly. Thanks to their safe design, the batteries can be connected together in parallel.
Safe & Reliable
Expandable Modular Design
Long Lifespan
OVERVIEW
Model
6*SECU A5.4-20
Usable Energy (kWh)
32.4
Nominal Voltage (V)
51.2
Nominal Dis- / Charge Current (A)
100 / 100
Installation Location
Grounded / Cabinet
Enclosure Type
IP20
Model
5*SECU A5.4-20
Usable Energy (kWh)
27.0
Nominal Voltage (V)
51.2
Nominal Dis- / Charge Current (A)
100 / 100
Installation Location
Grounded / Cabinet
Enclosure Type
IP20
Model
4*SECU A5.4-20
Usable Energy (kWh)
21.6
Nominal Voltage (V)
51.2
Nominal Dis- / Charge Current (A)
100 / 100
Installation Location
Grounded / Cabinet
Enclosure Type
IP20
Model
3*SECU A5.4-20
Usable Energy (kWh)
16.2
Nominal Voltage (V)
51.2
Nominal Dis- / Charge Current (A)
100 / 100
Installation Location
Grounded / Cabinet
Enclosure Type
IP20
Model
2*SECU A5.4-20
Usable Energy (kWh)
10.8
Nominal Voltage (V)
51.2
Nominal Dis- / Charge Current (A)
100 / 100
Installation Location
Grounded / Cabinet
Enclosure Type
IP20
Model
SECU A5.4-20
Usable Energy (kWh)
5.4
Nominal Voltage (V)
51.2
Nominal Dis- / Charge Current (A)
50 / 50
Installation Location
Grounded / Cabinet
Enclosure Type
IP20
