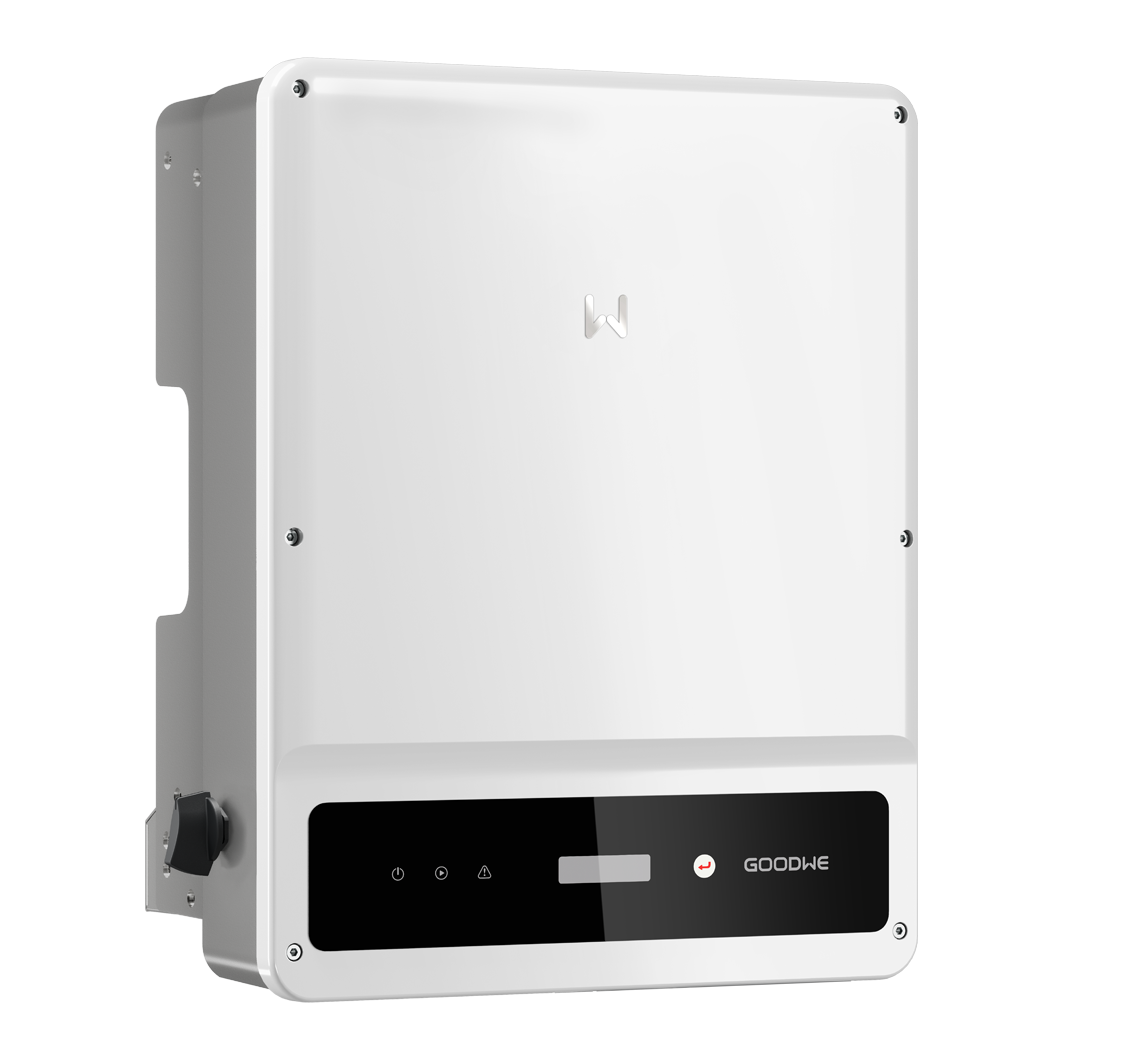

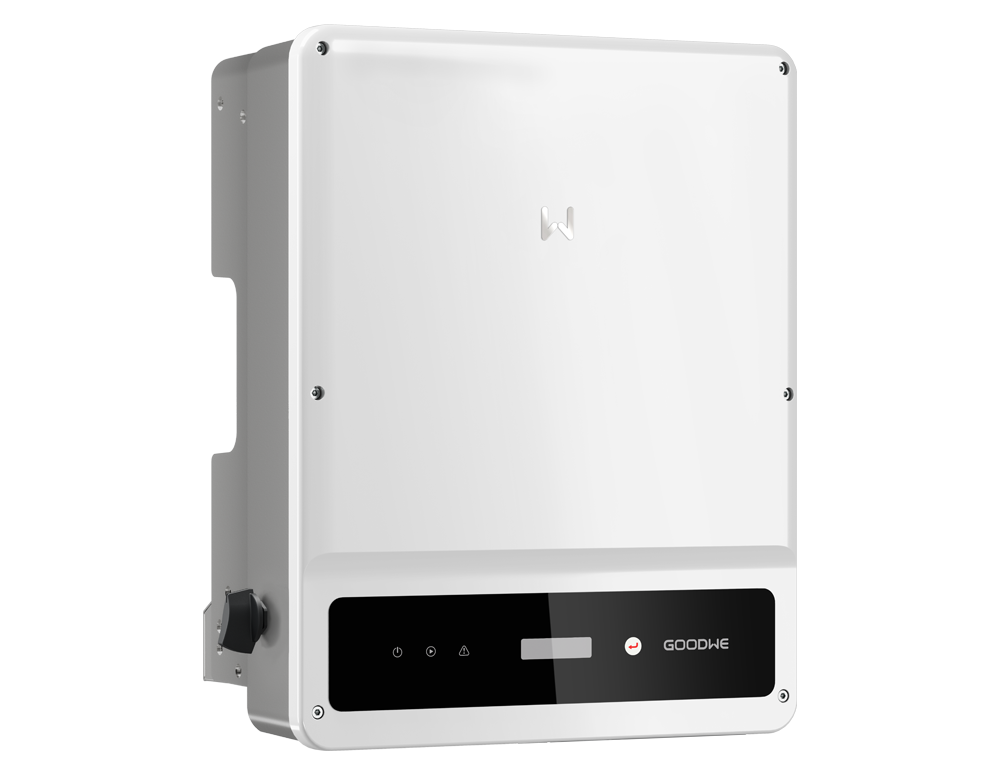

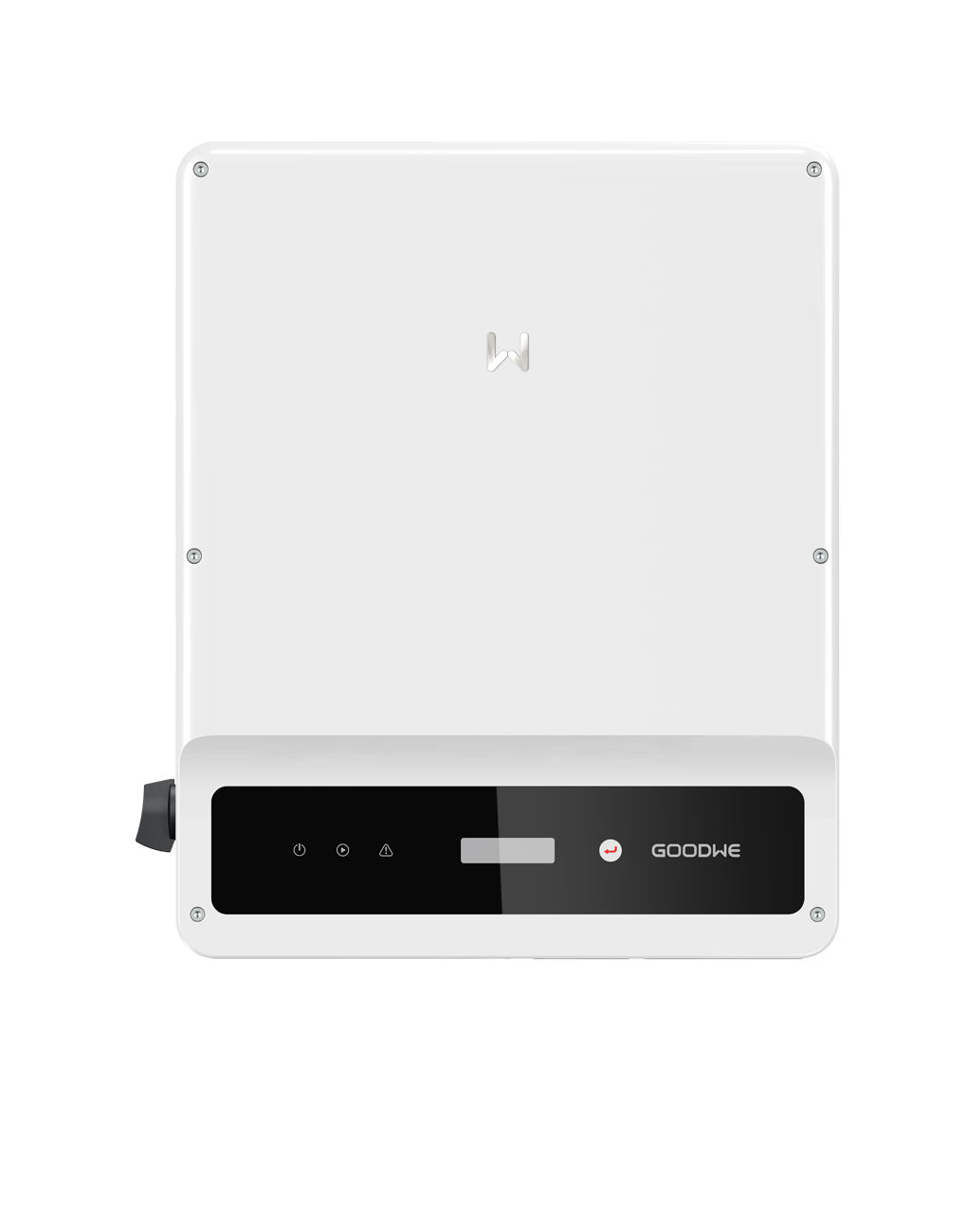

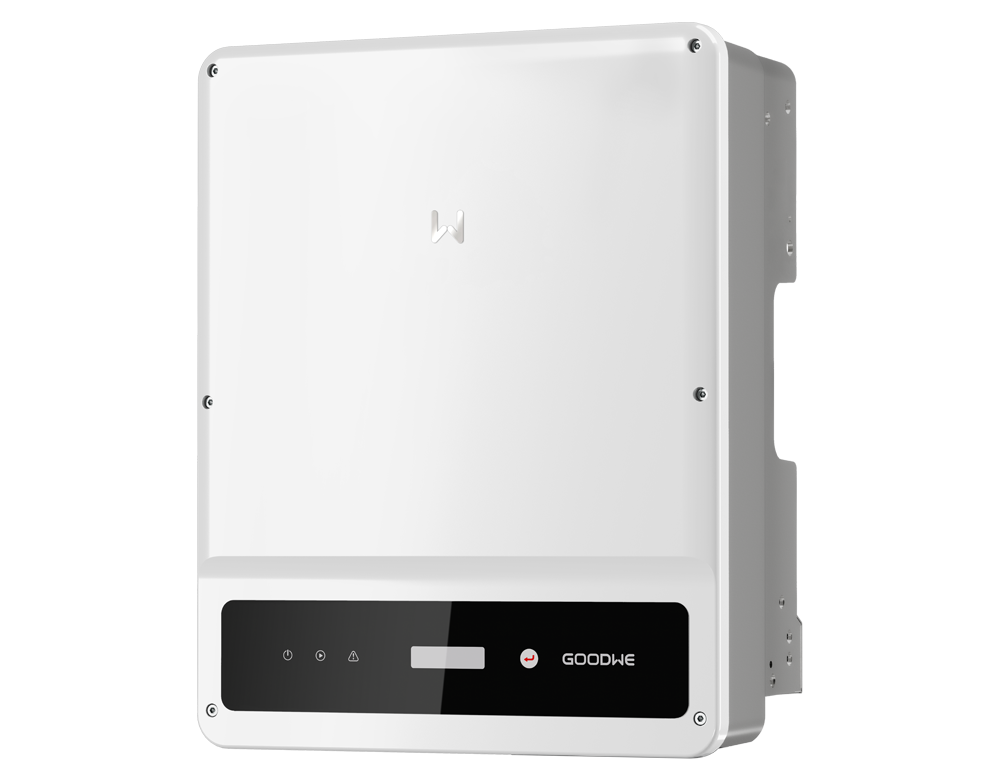

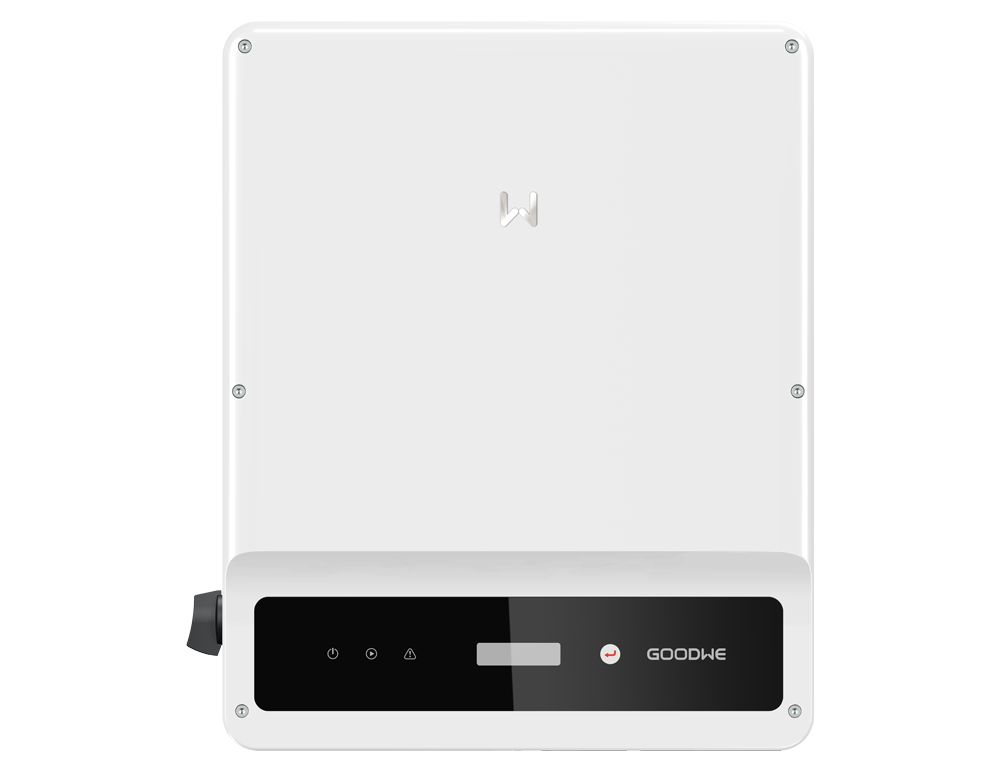

SDT G2 PLUS+ Series

4-20 kW | Three Phase | 2 MPPTs

DOWNLOAD PDF >>

Scroll

Elegant & compact

Fanless & quiet

The GoodWe 4-20 kW SDT G2 PLUS+ series inverter is specially designed for three-phase residential and small commercial projects. The integrated features of high efficiency allow for optimized power generation during the inverter's service cycle. With its lightweight and easy-to-install design, the SDT G2 inverter offers comfort and great convenience for operators and installers. Users can also take all-around smart control of energy management utilizing the featuring 24-hour load consumption monitoring enabled by GoodWe HK3000. Meet the perfect choice of maximum energy yield for residential and small-scale commercial usage.


Smart Shadow Scan with adjustable scan interval


Multi-protocol compatibility for smart home integration


Optional exchangeable DC Type II SPD & SPD failure alarm


Optional Arc Fault Circuit Interrupter (AFCI)


Elegant & compact

Fanless & quiet

Superb Safety & Reliability

Safety First. With optional Arc Fault Circuit Interrupter (AFCI), the inverter is able to detect arc fault failure, sending alarms through monitoring systems and breaking the circuit simultaneously. Optional Type II Surge Protection Device (SPD) on both sides protects the system from and lightning hazards in extreme environments. GoodWe not only delivers efficiency, reliability, but security as well.


Optional AFCI reducing risks of fire


Optional exchangeable DC Type II SPD & SPD failure alarm

High Power Generation

The SDT G2 PLUS+ Series can generate 10% additional power compared to the nominal output, increasing the overall yield. The high input current maximizes the generation thanks to its compatibility with high-power PV modules. The low startup voltage extends the generation time from early morning to late evening.

110%

110% AC output overloading

16

Up to 16 A max. DC input current per string

98.4%

98.4% max. efficiency to minimalize energy loss

OVERVIEW


Model

GW6000-SDT-20

Max. Input Voltage (V):

1000

Max. Input Current per MPPT (A):

16

Number of MPP trackers/Number of Strings per MPPT:

2/1

Weight (kg) :

15.0

Nominal Output Voltage (V) :

400, 3L/N/PE

Model

GW4000-SDT-20

Max. Input Voltage (V):

1000

Max. Input Current per MPPT (A):

16

Number of MPP trackers/Number of Strings per MPPT:

2/1

Weight (kg) :

15.0

Nominal Output Voltage (V) :

400, 3L/N/PE

Model

GW5000-SDT-20

Max. Input Voltage (V):

1000

Max. Input Current per MPPT (A):

16

Number of MPP trackers/Number of Strings per MPPT:

2/1

Weight (kg) :

15.0

Nominal Output Voltage (V) :

400,3L/N/PE

Model

GW20K-SDT-20

Max. Input Voltage (V):

1100

Max. Input Current per MPPT (A):

30

Number of MPP trackers/Number of Strings per MPPT:

2/2

Weight (kg) :

26.0

Nominal Output Voltage (V) :

380/400/415, 3L/N/PE

Model

GW17K-SDT-20

Max. Input Voltage (V):

1100

Max. Input Current per MPPT (A):

30

Number of MPP trackers/Number of Strings per MPPT:

2/2

Weight (kg) :

26.0

Nominal Output Voltage (V) :

380/400/415, 3L/N/PE

Model

GW15K-SDT-20

Max. Input Voltage (V):

1100

Max. Input Current per MPPT (A):

30

Number of MPP trackers/Number of Strings per MPPT:

2/2

Weight (kg) :

26.0

Nominal Output Voltage (V) :

380/400/415, 3L/N/PE

Model

GW12KLV-SDT-20

Max. Input Voltage (V):

800

Max. Input Current per MPPT (A):

30

Number of MPP trackers/Number of Strings per MPPT:

2/2

Weight (kg) :

26.0

Nominal Output Voltage (V) :

220/127, 3L/N/PE

Model

GW12K-SDT-20

Max. Input Voltage (V):

1100

Max. Input Current per MPPT (A):

30

Number of MPP trackers/Number of Strings per MPPT:

2/2

Weight (kg) :

23.5

Nominal Output Voltage (V) :

380/400/415, 3L/N/PE

Model

GW10K-SDT-20

Max. Input Voltage (V):

1100

Max. Input Current per MPPT (A):

15

Number of MPP trackers/Number of Strings per MPPT:

2/1

Weight (kg) :

20.5

Nominal Output Voltage (V) :

380/400/415, 3L/N/PE

Model

GW8000-SDT-20

Max. Input Voltage (V):

1100

Max. Input Current per MPPT (A):

15

Number of MPP trackers/Number of Strings per MPPT:

2/1

Weight (kg) :

20.5

Nominal Output Voltage (V) :

380/400/415, 3L/N/PE
