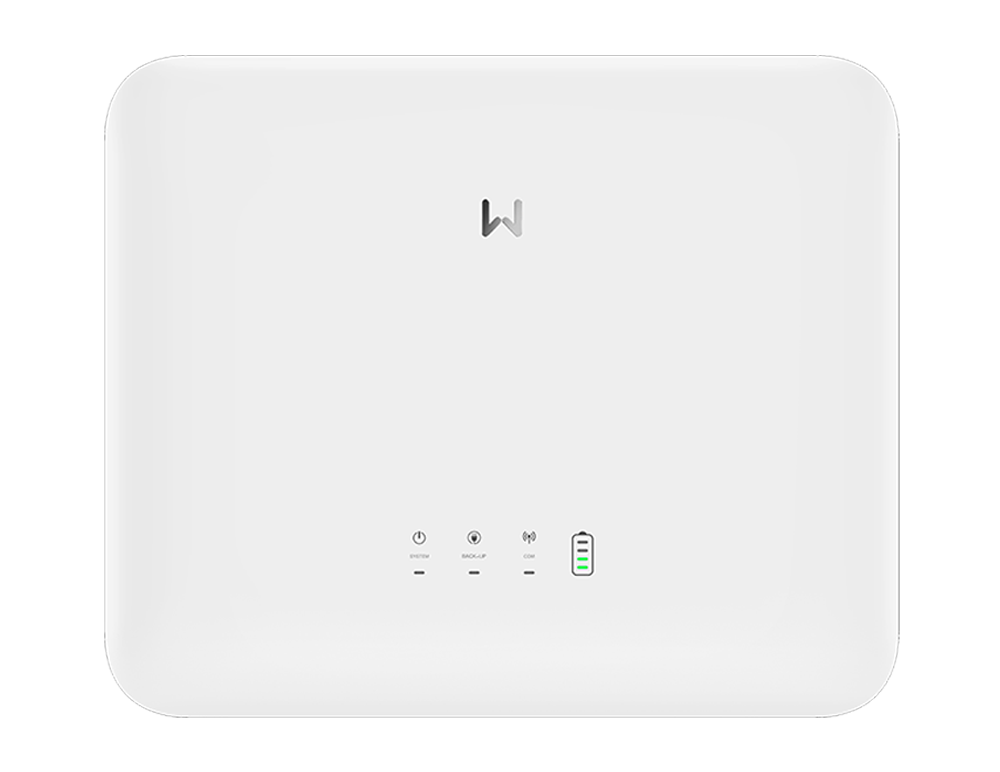

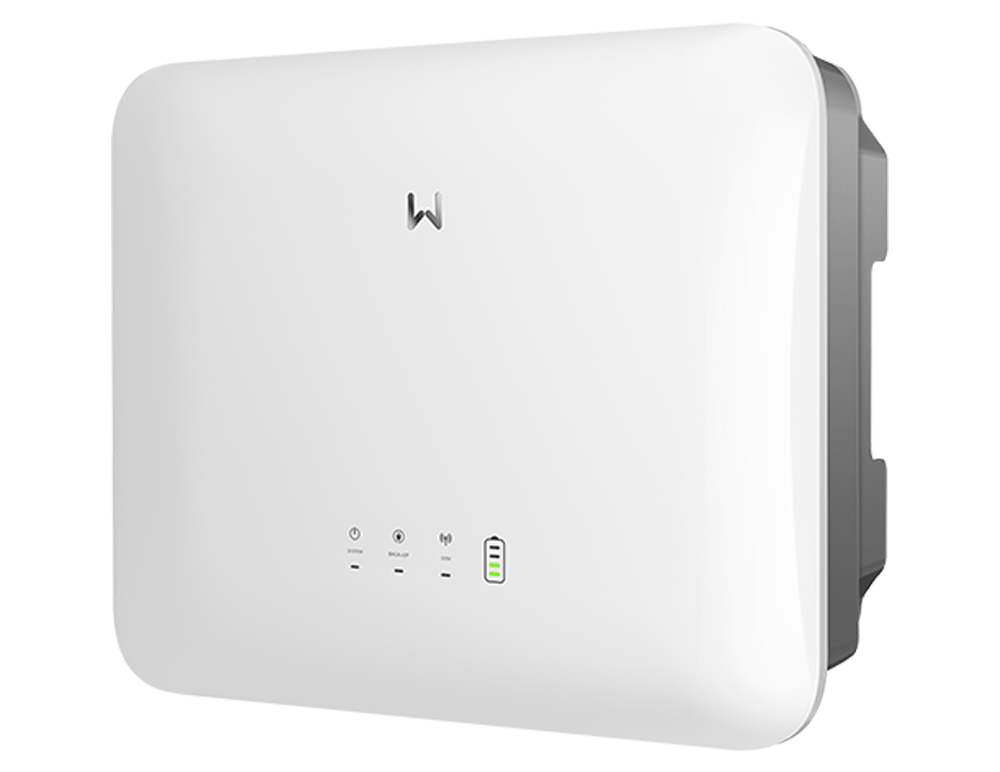

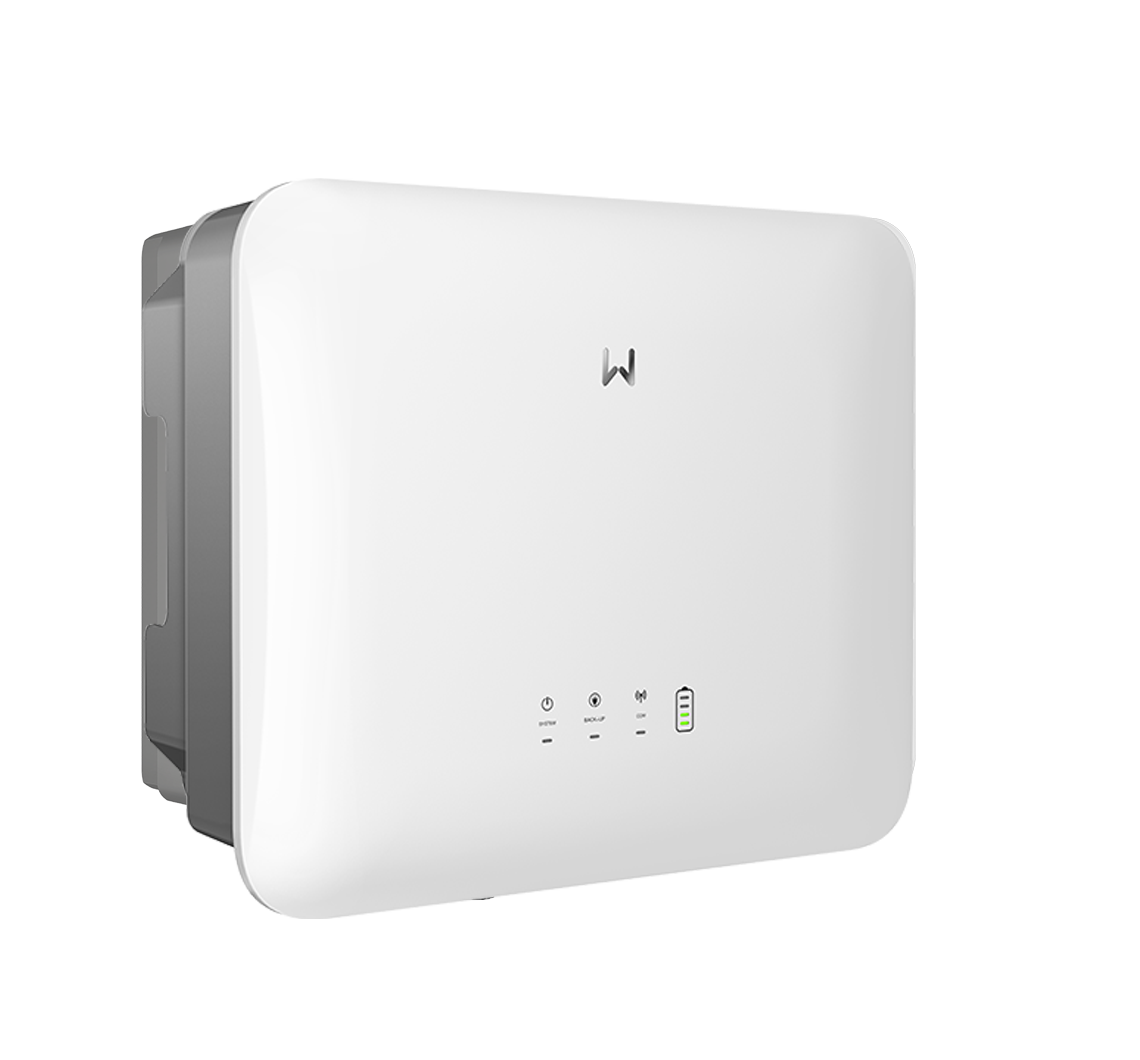

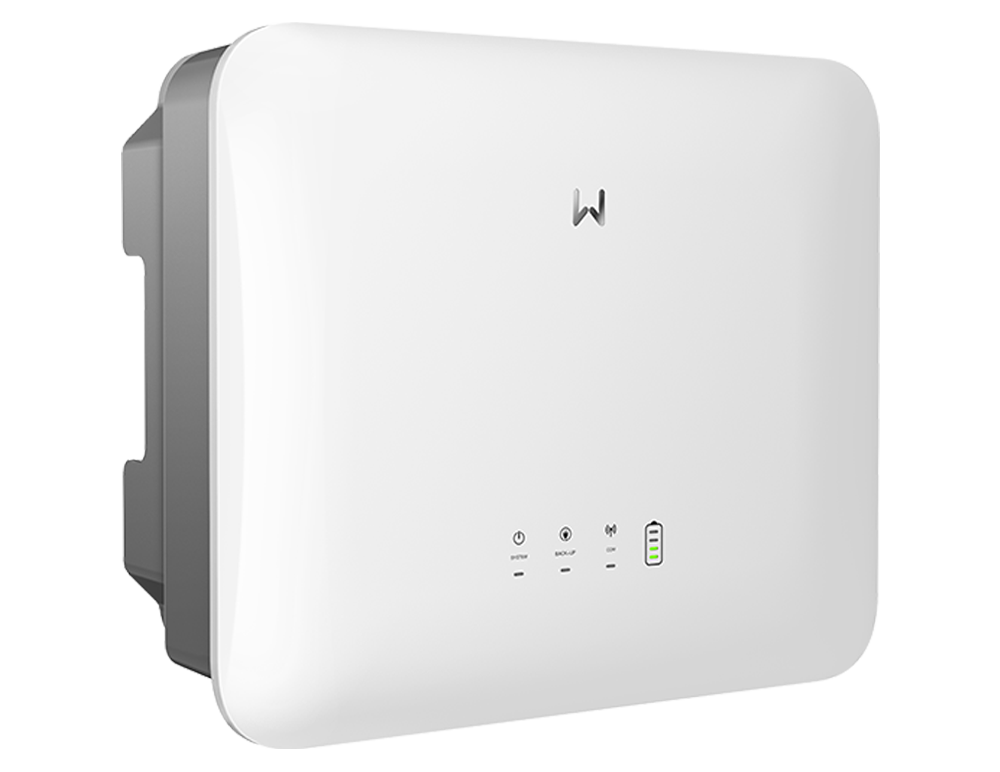

SBP G2 Series

3.6-6 kW │ Single Phase | AC-coupled retrofit inverter (LV)

DOWNLOAD PDF >>

Scroll

Plug & Play

Elegant & compact

The GoodWe SBP G2 Series is an AC-coupled retrofit solution, which is able to upgrade an existing single-phase or three-phase on-grid PV system into an energy storage system by adding a battery. The inverter is compatible with low-voltage batteries ranging from 40 to 60V and allows surplus electricity to be stored in the battery for later use. The integrated plug-and-play solution, compact design, and minimal weight simplify its installation, operation, and maintenance. Importantly, the inverter can automatically realize UPS-level switching to the back-up mode in less than 10ms, ensuring a stable and reliable power supply. An all-round intelligent system for optimized power usage and maximized return on investment.


<10 ms UPS-level switching


Elegant and compact design


IP65 ingress protection


Remote Shutdown


Plug & Play

Elegant & compact

Smart Control for Smart Energy

SBP G2 Series can make a smart UPS-level switching to a back-up mode in less than 10 ms, ensuring the critical loads experience no interruption. Supporting a variety of communication protocols, SBP G2 Series makes the integration of smart home systems for users' custom needs possible. Easy, smart, and intuitive.


<10 ms UPS-level switching


Smart home integration with multi-protocol communications


Flexible & Adaptable Applications

GoodWe SBP G2 is suitable for both single-phase & three-phase systems, adapting to various architecture conditions of users. As an AC-coupled battery storage retrofit inverter, it can effectively upgrade an existing single-phase or three-phase on-grid PV system into an energy storage system by adding a battery.


AC-coupled battery storage retrofit solution


Suitable for both single-phase & three-phase systems

OVERVIEW


Model

GW6000-SBP-20

Battery Voltage Range (V)

40~60

Max. Continuous Charging / Discharging Current(A)

120/120

Nominal Output Voltage (V)

220 / 230 / 240

Max. Apparent Power Output to Utility Grid (VA)

6000

Back-up Nominal Apparent Power (VA)

6000

Model

GW5000-SBP-20

Battery Voltage Range (V)

40~60

Max. Continuous Charging / Discharging Current(A)

120/120

Nominal Output Voltage (V)

220 / 230 / 240

Max. Apparent Power Output to Utility Grid (VA)

5000

Back-up Nominal Apparent Power (VA)

5000

Model

GW3600-SBP-20

Battery Voltage Range (V)

40~60

Max. Continuous Charging / Discharging Current(A)

75/75

Nominal Output Voltage (V)

220 / 230 / 240

Max. Apparent Power Output to Utility Grid (VA)

3680

Back-up Nominal Apparent Power (VA)

3680
