MT Series

50-80 kW | Three phase | 4 MPPTs

DOWNLOAD PDF >>

Scroll

PLC 2.0

99.0% efficiency

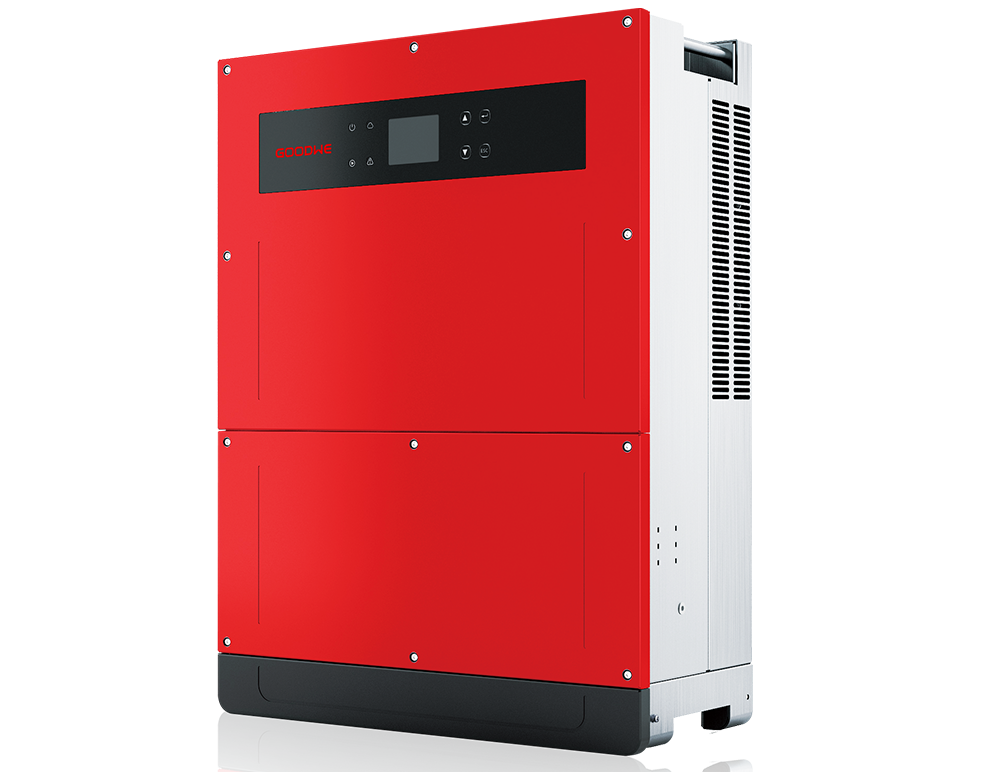

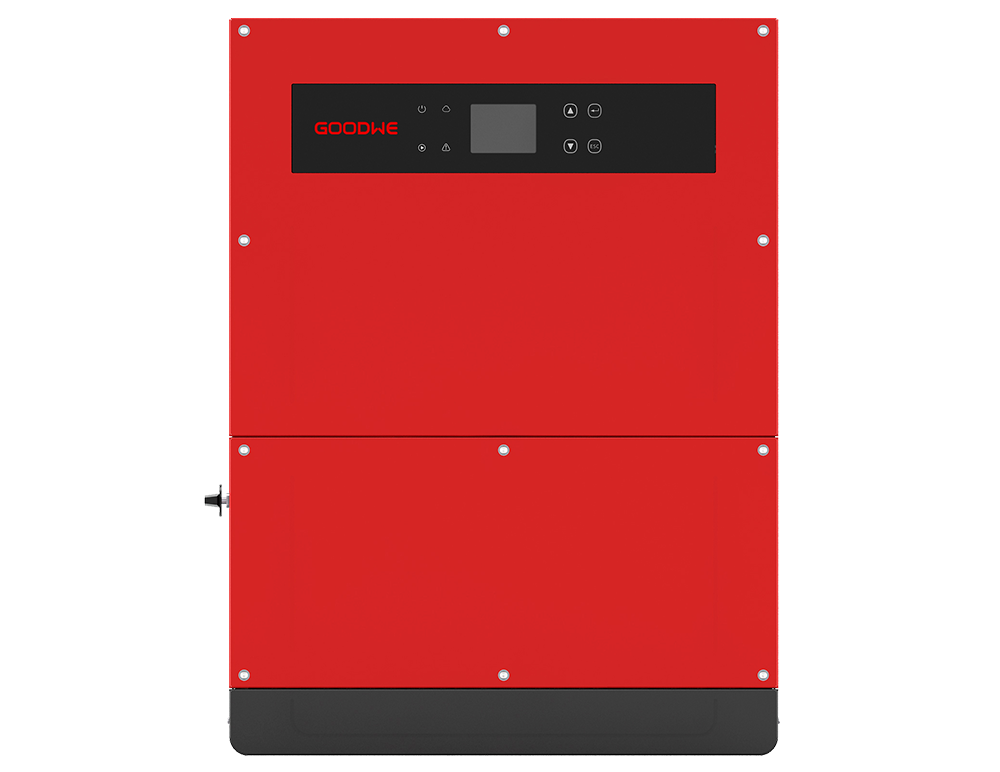

GoodWe MT series inverter is suited for medium and large scale commercial rooftops and ground-mounted solar PV systems where maximum versatility and profitability are important. With its compact design and power boost function, the Goodwe MT series of the new generation can provide a 150% continuous maximum AC output power overload, offering a faster return on investment. The start-up voltage is 200 V, much lower than other products, which makes the inverter start up earlier, therefore generating more power over time.


String level monitoring


Up to 150% DC input oversizing


Up to 115% AC output overloading


Up to 99% max. efficiency


Full-load running at 50ºC


Power line communication


PLC 2.0

99.0% efficiency

Four MPPTs Maximize Output

Improve your energy harvest with four MPP trackers to minimize output losses caused by partial shading and other mismatch effects.


High Generation

With 150% DC input oversizing capability, the MT allows users to significantly expand the solar array and drive increased power output even under low solar radiation.

150%

DC INPUT OVERSIZING

115%

AC OUTPUT OVERLOADING

OVERVIEW


Model

GW50KN-MT

Max. Input Voltage (V)

1100

Max. Input Current per MPPT (A)

33/33/22/22

Number of Strings per MPPT

3/3/2/2

Nominal Output Power (kW)

50

Nominal Output Voltage (V)

400,default 3L+N+PE, 3L+PE optional insettings

Model

GW60KN-MT

Max. Input Voltage (V)

1100

Max. Input Current per MPPT (A)

33

Number of Strings per MPPT

3/3/3/3

Nominal Output Power (kW)

60

Nominal Output Voltage (V)

400,default 3L+N+PE, 3L+PE optional insettings

Model

GW50KBF-MT

Max. Input Voltage (V)

1100

Max. Input Current per MPPT (A)

30

Number of Strings per MPPT

2/2/2/2

Nominal Output Power (kW)

50

Nominal Output Voltage (V)

400,default 3L+N+PE, 3L+PE optional insettings

Model

GW60KBF-MT

Max. Input Voltage (V)

1100

Max. Input Current per MPPT (A)

44

Number of Strings per MPPT

3/3/3/3

Nominal Output Power (kW)

60

Nominal Output Voltage (V)

400,default 3L+N+PE, 3L+PE optional insettings

Model

GW75KBF-MT

Max. Input Voltage (V)

1100

Max. Input Current per MPPT (A)

39

Number of Strings per MPPT

3/3/3/3

Nominal Output Power (kW)

75

Nominal Output Voltage (V)

500, 3L /PE

Model

GW80KBF-MT

Max. Input Voltage (V)

1100

Max. Input Current per MPPT (A)

33

Number of Strings per MPPT

3/3/3/3

Nominal Output Power (kW)

80

Nominal Output Voltage (V)

540, 3L /PE

Model

GW70KMV-MT

Max. Input Voltage (V)

1100

Max. Input Current per MPPT (A)

44

Number of Strings per MPPT

3/3/3/3

Nominal Output Power (kW)

70

Nominal Output Voltage (V)

480, 3L /PE

Model

GW70KHV-MT

Max. Input Voltage (V)

1100

Max. Input Current per MPPT (A)

44

Number of Strings per MPPT

3/3/3/3

Nominal Output Power (kW)

70

Nominal Output Voltage (V)

500, 3L /PE

Model

GW80KHV-MT

Max. Input Voltage (V)

1100

Max. Input Current per MPPT (A)

44

Number of Strings per MPPT

3/3/3/3

Nominal Output Power (kW)

80

Nominal Output Voltage (V)

540, 3L /PE

Model

GW75K-MT

Max. Input Voltage (V)

1100

Max. Input Current per MPPT (A)

44

Number of Strings per MPPT

4(standard)/3(optional,support bifacial module)

Nominal Output Power (kW)

75

Nominal Output Voltage (V)

400,default 3L+N+PE, 3L+PE optional insettings

Model

GW80K-MT

Max. Input Voltage (V)

1100

Max. Input Current per MPPT (A)

39

Number of Strings per MPPT

4(standard)/3(optional,support bifacial module)

Nominal Output Power (kW)

80

Nominal Output Voltage (V)

400,default 3L+N+PE, 3L+PE optional insettings
