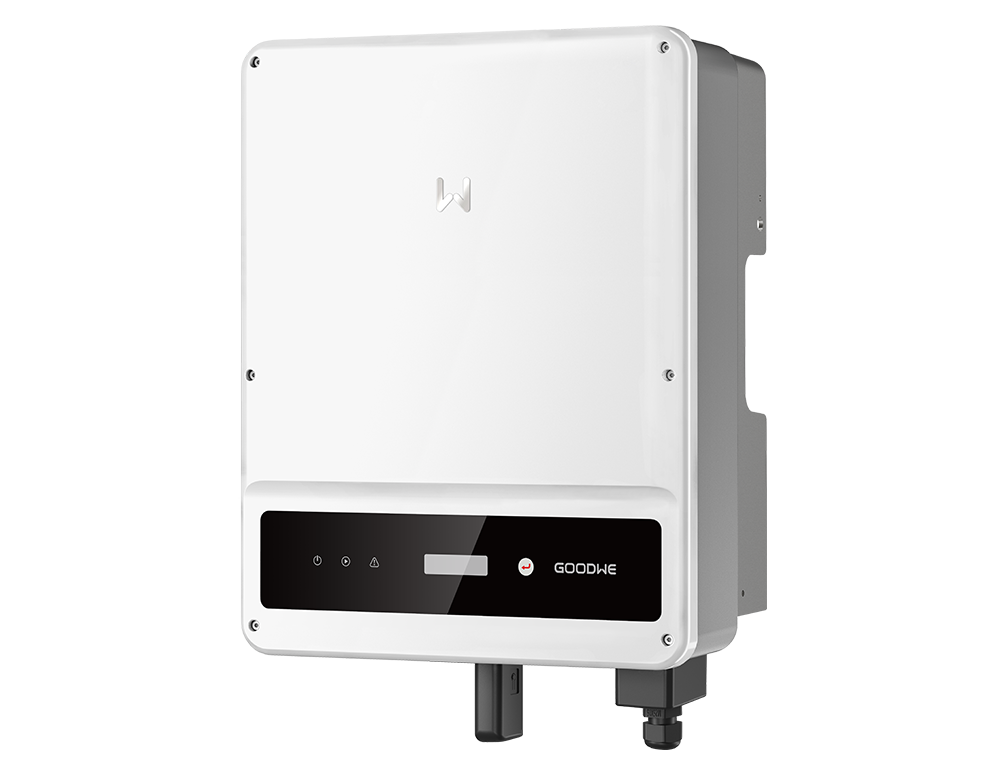

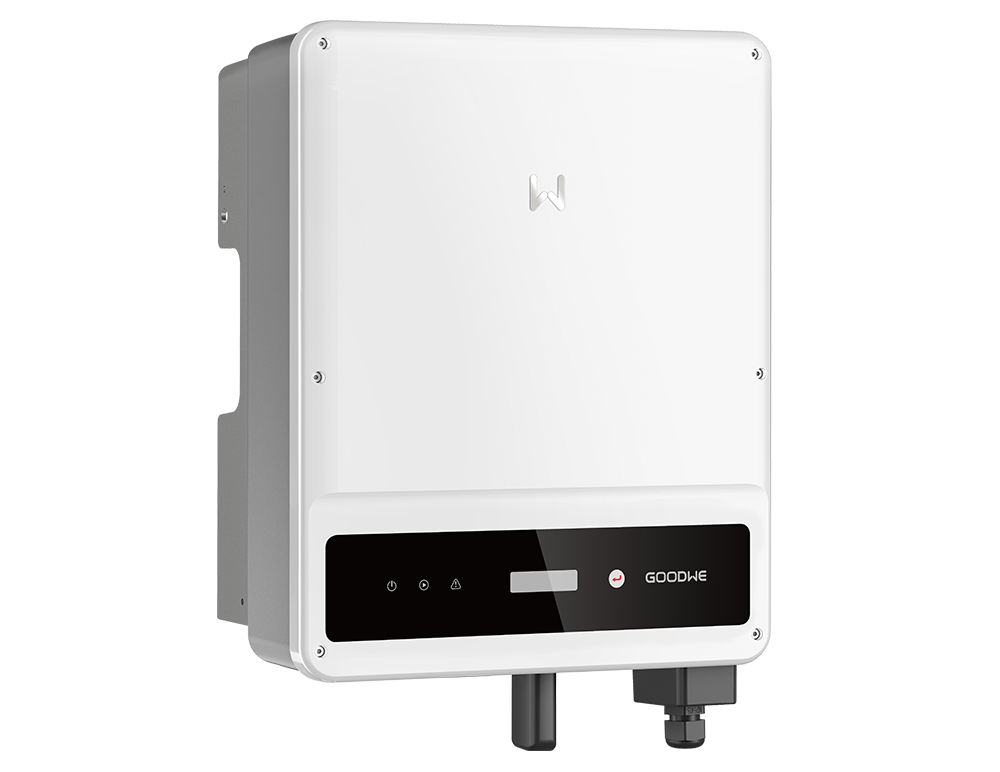

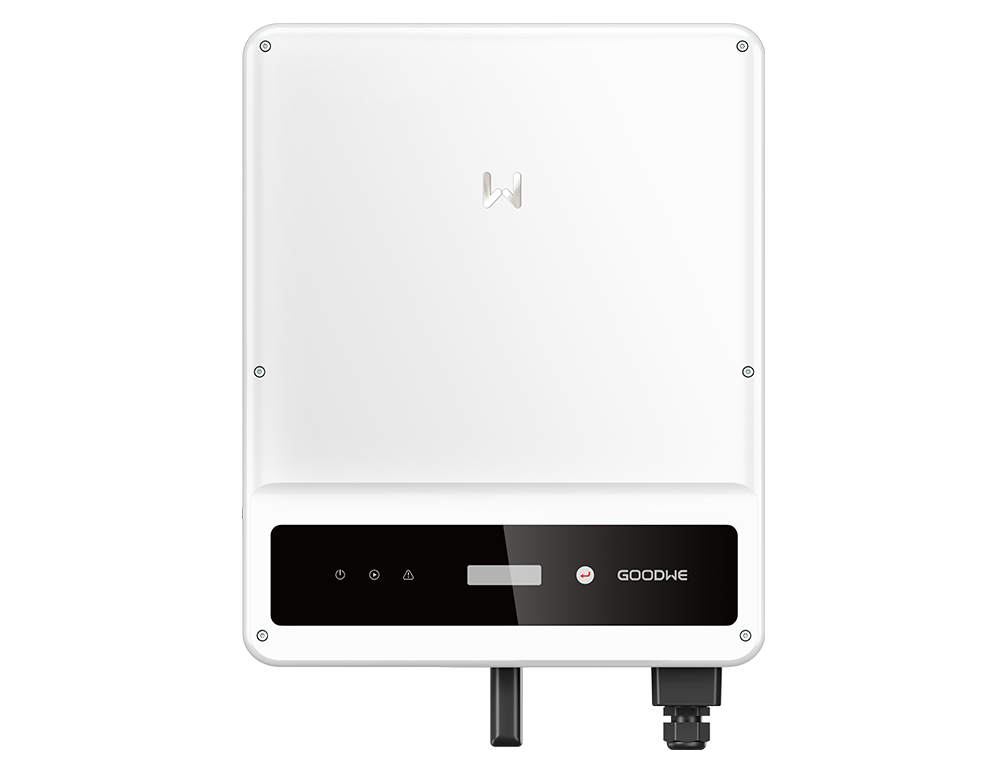

MS Series

5-10 kW | Single phase | 3 MPPTs

DOWNLOAD PDF >>

Scroll

Fanless & quiet

Elegant & compact

The MS Series of 5-10kW single phase inverter with 3 MPPTs for complex rooftops is a powerful and versatile solution for the expanding needs of residential usage. It is truly a champion over the competition in terms of DC oversizing, offering as much as 200% and achieving up to 110% AC overloading. With a startup voltage of only 80V, the MS series can generate electricity earlier than equivalent products. This considerably low startup voltage means that the solar system can generate power from dawn to dusk to harness as much solar energy as possible, even in very weak sunshine or poor weather conditions.


Power export limit


Load consumption monitoring


IP65 ingress protection


Quality and robust components


Fanless & quiet

Elegant & compact

Smart Control & Monitoring

Users can enjoy smart energy management with 24-hour load consumption monitoring enabled by GoodWe HomeKit 10001. Thanks to the integrated export power limit, MS Series can adapt to any power limit imposed by the local energy provider. Smart solution, smart energy.


Load consumption monitoring


Power export limit


Friendly & Thoughtful Design

MS Series is equipped with fanless natural convection cooling to realize quiet operation for users' peace of mind. The elegant and compact design is perfect for indoor installation.


Fanless cooling for quiet operation


Elegant and compact design

High Power Generation

MS Series is designed to achieve the maximum yield and present lower energy costs.The 80 V start-up voltage allows the inverter to kick in earlier during the day and presents more power generation. With the maximum efficiency, DC input oversizing and AC output overloading capabilities, the MS series is driven to its full capacity by adding extra reflections from the backside of bi-facial panels, to increase the power output under low solar radiation conditions.

97.7%

97.7% max. efficiency

3

3 MPPTs

80

80V startup voltage

110%

Up to 110% AC output overloading

200%

Up to 200% DC input oversizing

OVERVIEW


Model

GW5000-MS

Max. Input Voltage (V):

600

Max. Input Current per MPPT (A):

16

Number of MPP trackers/Number of Strings per MPPT:

3/1

Weight (kg) :

22.5

Nominal Output Voltage (V) :

220/230/240

Model

GW6000-MS

Max. Input Voltage (V):

600

Max. Input Current per MPPT (A):

16

Number of MPP trackers/Number of Strings per MPPT:

3/1

Weight (kg) :

22.5

Nominal Output Voltage (V) :

220/230/240

Model

GW7000-MS

Max. Input Voltage (V):

600

Max. Input Current per MPPT (A):

16

Number of MPP trackers/Number of Strings per MPPT:

3/1

Weight (kg) :

22.5

Nominal Output Voltage (V) :

220/230/240

Model

GW8500-MS

Max. Input Voltage (V):

600

Max. Input Current per MPPT (A):

16

Number of MPP trackers/Number of Strings per MPPT:

3/1

Weight (kg) :

22.5

Nominal Output Voltage (V) :

220/230/240

Model

GW10K-MS

Max. Input Voltage (V):

600

Max. Input Current per MPPT (A):

16

Number of MPP trackers/Number of Strings per MPPT:

3/1

Weight (kg) :

22.5

Nominal Output Voltage (V) :

220/230/240
