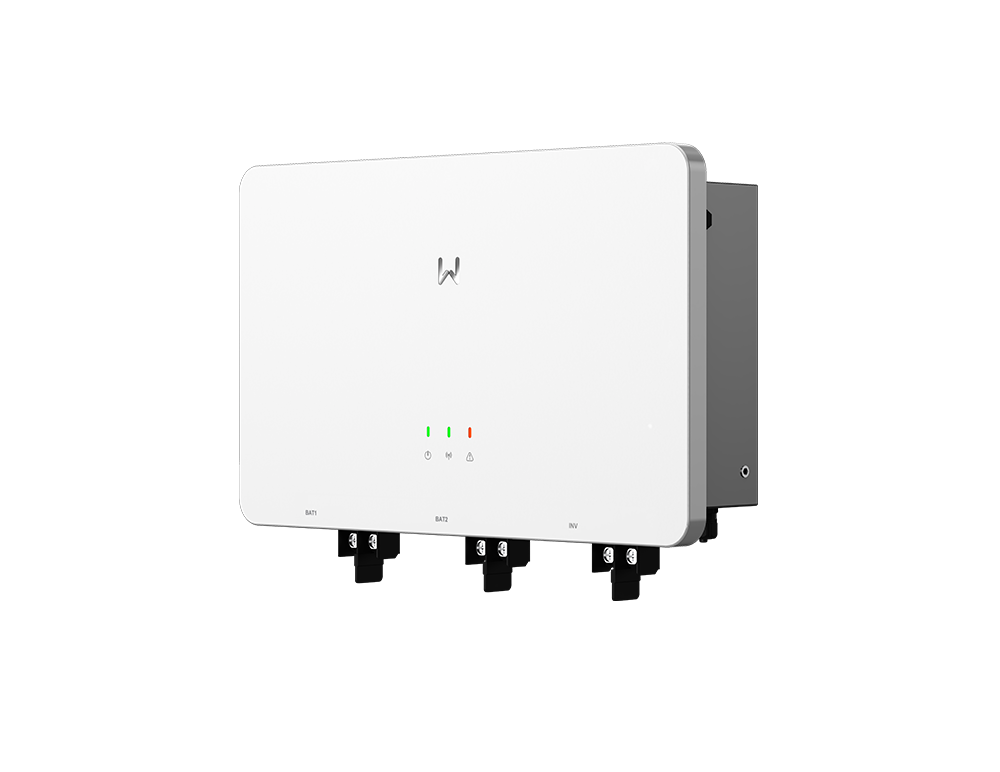

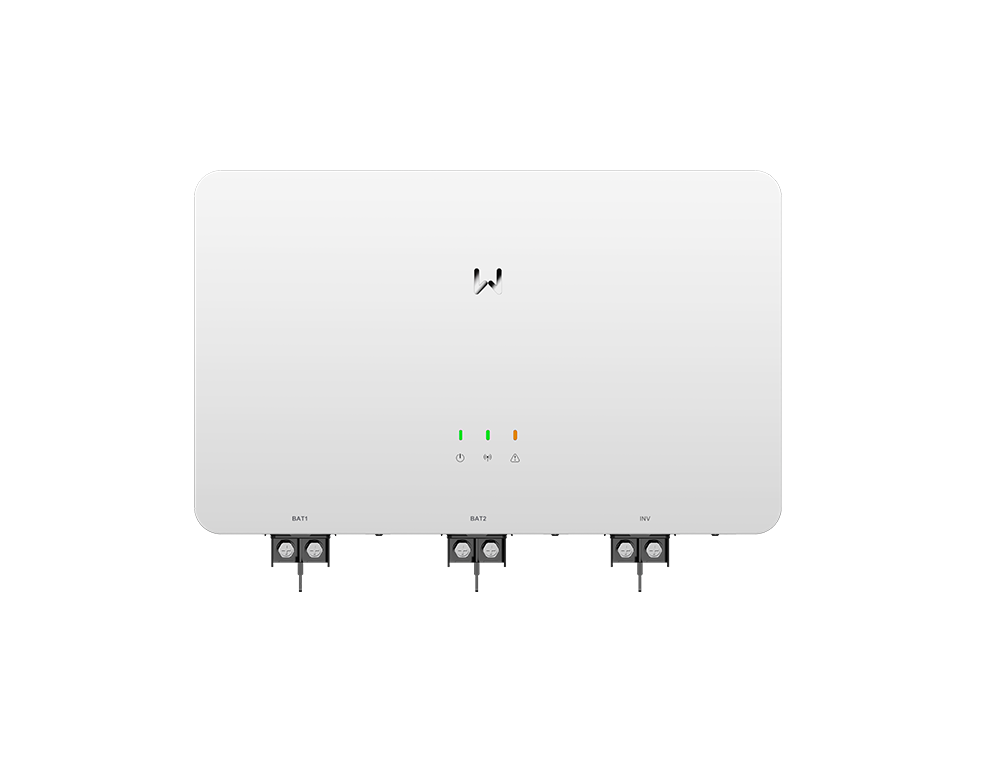

The GW12/2-MPU-LVO-G10 is a low-voltage battery mix parallel unit designed to support flexible O&M for existing installations. It supports mixing two different low-voltage batteries, including new and old batteries within the same series, helping installers simplify battery replacement without replacing the full battery set. With two battery inputs and one inverter output, it supports up to 30 battery clusters in parallel and up to 12 kW output, with IP65 protection for reliable wall-mounted installation.
Flexible mixing across GoodWe low-voltage battery series
Mixes new and old batteries in the same series
Dual battery inputs for up to 30 parallel clusters
Up to 12 kW maximum output.
Supports battery mixing with busbars and combiner boxes
Compatible with ES Uniq and ET LV
OVERVIEW
-31.png)
-32.png)
Model
GW12/2-MPU-LVO-G10
Battery Voltage Range (V)
40 ~ 60
Max. Output Current (A)
240
Max. Output Power (kW)
12
Peak Output Power (kW)
18 (10S)
Maximum Number of Batteries Supported in Parallel
30P
