Stackable, auto-recognition
Plug & Play

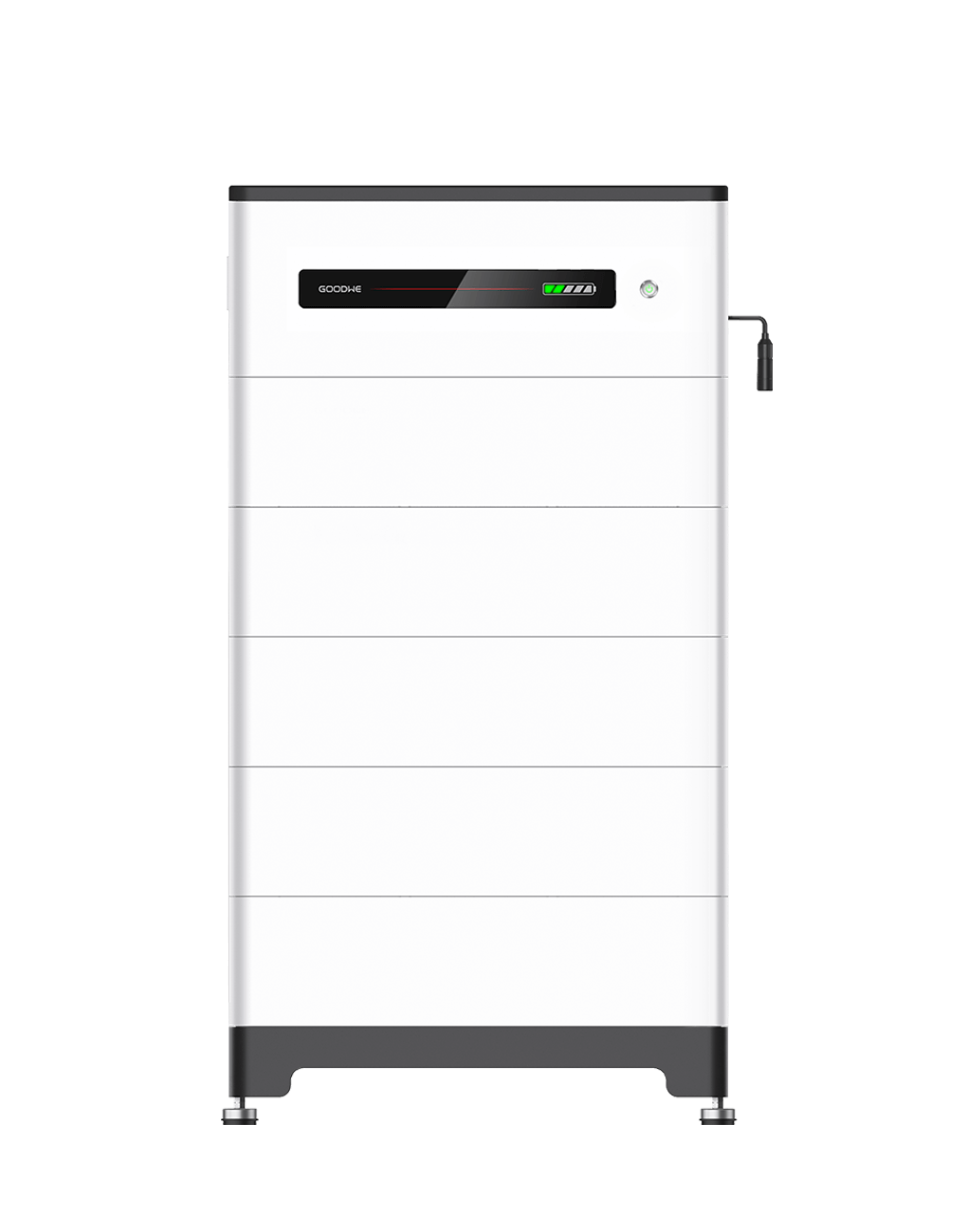

GoodWe high-voltage battery Lynx Home F Plus+ Series is a perfect match and a highlight of GoodWe one-stop-shop energy storage solution realizing the remote monitoring of the whole energy storage system with a single App. It offers a wide capacity range from 6.6kWh to 16.4kWh, and the expandable parallel connection of up to 8 towers allows for a maximum capacity of 131kWh. Therefore, it provides comprehensive energy storage options to meet demanding project requirements, from self-consumption optimization to backup usage. The stackable self-detecting modules make the system especially easy to install and maintain. The reliable lithium iron phosphate (LFP) battery cell technology ensures maximum safety and a longer life cycle. Moreover, Lynx Home F PLUS+ is compatible with GoodWe BH/EH/BT/ET inverters. Get ready with Lynx Home F PLUS+ Series for robust power storage for your life.
Remote diagnosis & update
Reliable LFP technology with high cycle stability
IP55 protection for outdoor installation safety
Auto reboot after undervoltage
Stackable, auto-recognition
Plug & Play
Smart Control for Smart Energy
Lynx Home F Plus+ Series accommodates smart remote monitoring of the whole energy storage system and remote update. It can also automatically reboot if the supply voltage is high enough again after an undervoltage fault occurs. Take smart control of your smart energy.
Remote diagnosis & update
Auto reboot after undervoltage
Friendly & Thoughtful Design
The stackable auto-recognition modules are built for ultra-simplified assembly, and pre-wired communication cables provide Plug & Play wiring to skip the complex internal wiring and commissioning, bringing fast installations for an easy start.
Stackable auto-recognition modules
Plug & Play wiring
Flexible & Adaptable Applications
Featuring compatibility with GoodWe BH/EH/BT/ET energy storage inverters, Lynx Home F Series is an ideal choice to support the GoodWe one-stop energy storage solution. It accommodates remote monitoring of the whole energy storage system with a single App on-the-go, saving the bother of cross-platform management.
16.5
6.6 – 16.5 kWh wide capacity range
131
Up to 8 towers in parallel (131 kWh)
1,3
Suitable for 1 and 3 phase, hybrid and retrofit inverters
OVERVIEW
Model
LX F6.6-H
Usable Energy (kWh)
6.55
Nominal Voltage (V)
204.8
Nominal Charging / Discharging Current (A)
25/25
Installation Location
Ground-Mounted
Enclosure Type
IP55
Model
LX F9.8-H
Usable Energy (kWh)
9.83
Nominal Voltage (V)
307.2
Nominal Charging / Discharging Current (A)
25/25
Installation Location
Ground-Mounted
Enclosure Type
IP55
Model
LX F13.1-H
Usable Energy (kWh)
13.1
Nominal Voltage (V)
409.6
Nominal Charging / Discharging Current (A)
25/25
Installation Location
Ground-Mounted
Enclosure Type
IP55
Model
LX F16.4-H
Usable Energy (kWh)
16.38
Nominal Voltage (V)
512
Nominal Charging / Discharging Current (A)
25/25
Installation Location
Ground-Mounted
Enclosure Type
IP55
