314Ah
10,000-cycle

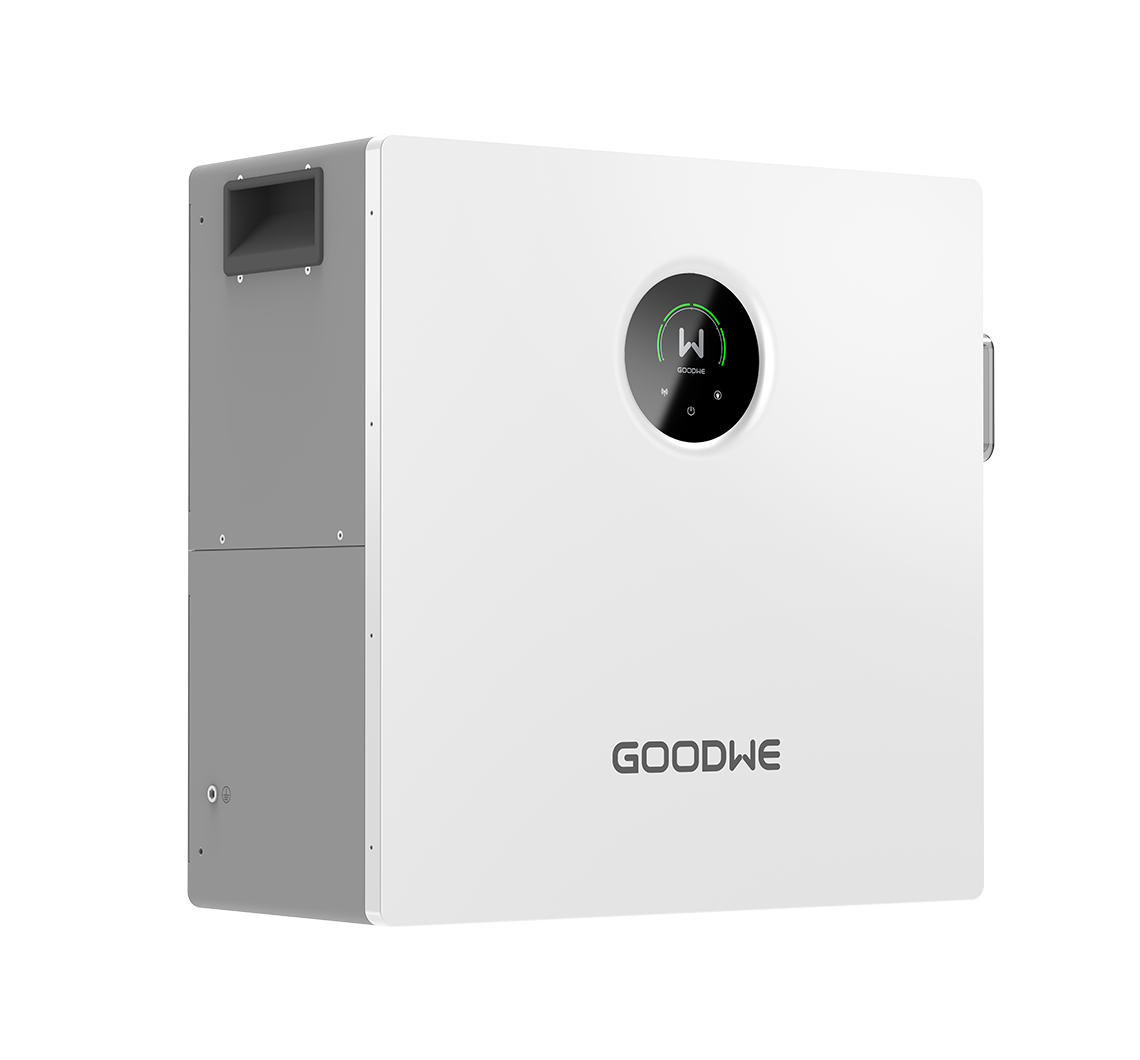

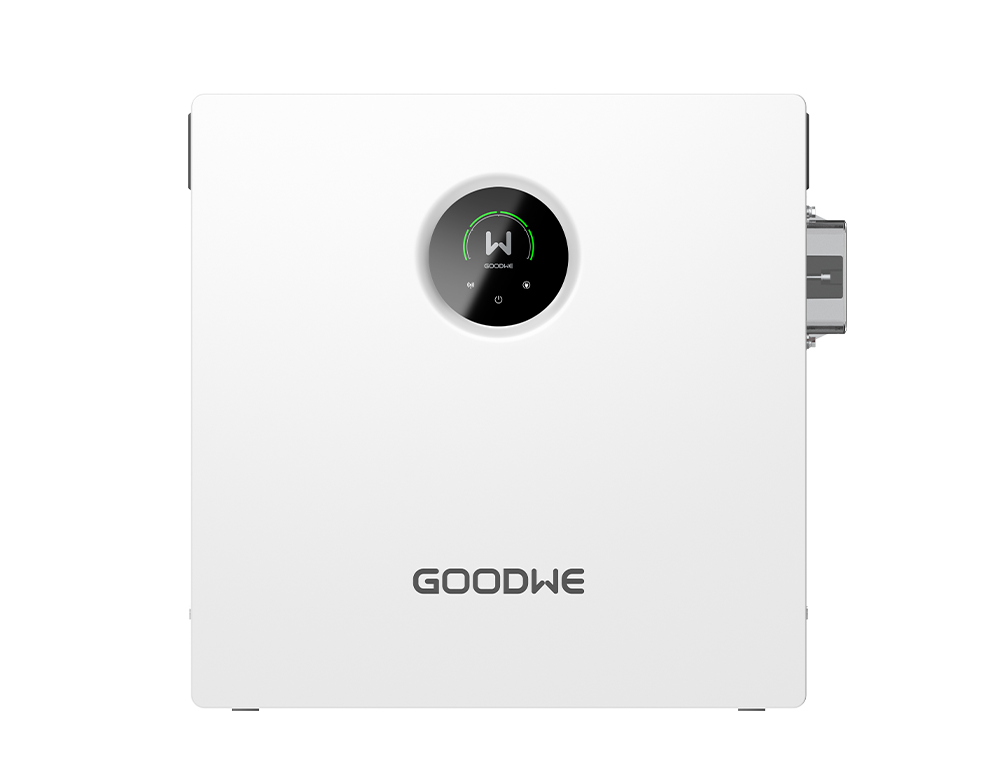

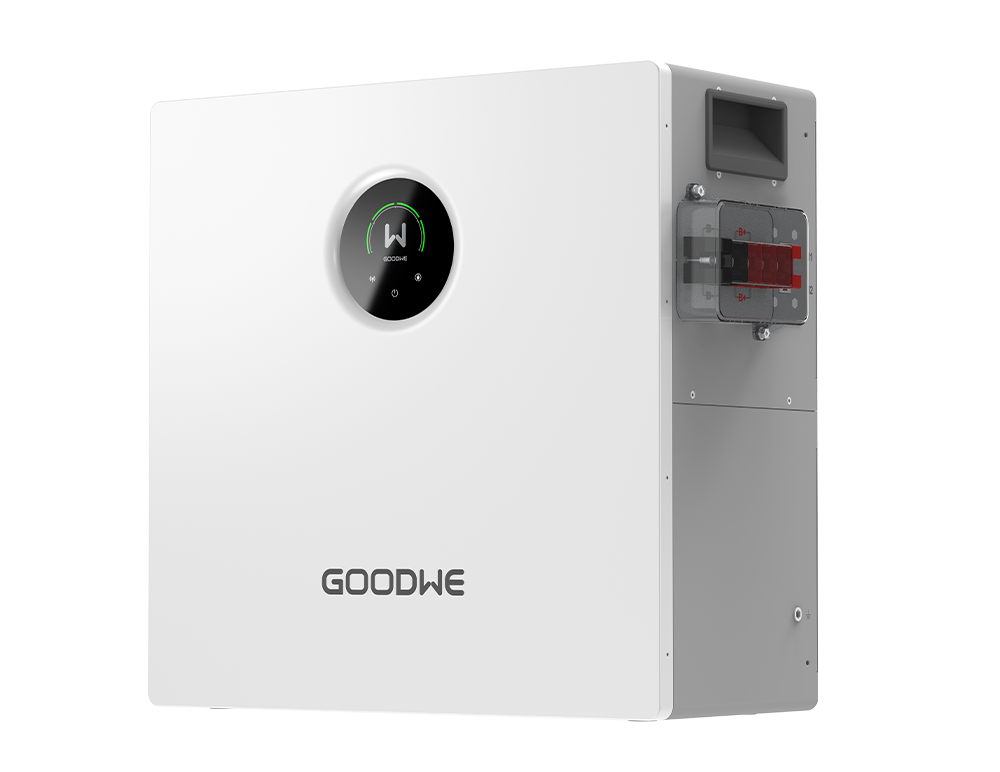

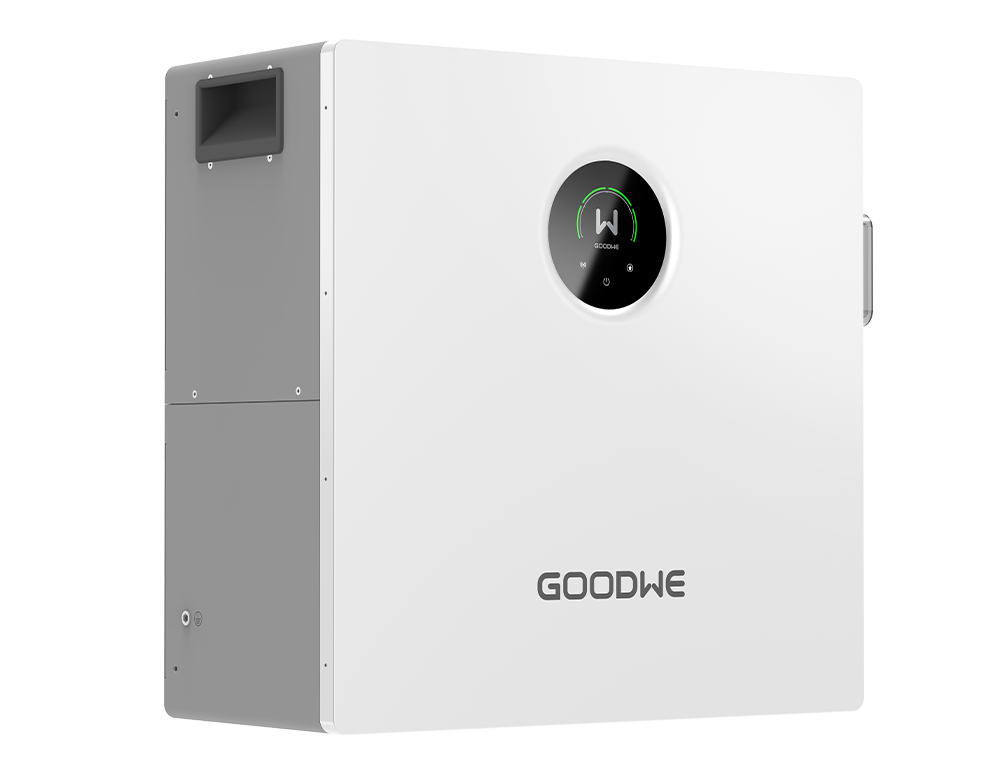

The Lynx A G4 Series is a family of next-generation low-voltage energy storage solutions for residential applications. With a unified family design and flexible capacity options, it adapts to a wide range of household energy needs. Equipped with high-capacity 314Ah LFP cells and integrated DC-DC optimization technology, the series delivers reliable performance, scalable expansion, and seamless compatibility with GoodWe low-voltage inverters. Combining safety, flexibility, and affordability, the Lynx A G4 Series is designed for modern homes and distributed energy systems.
314Ah Cells, 10000 Cycles: Long-lasting reliability
Built-in DC/DC: Mix capacities. Mix old & new batteries
130% Overload (10s): Supports peak loads
1PH & 3PH Compatibility: Fits more installation scenarios
314Ah
10,000-cycle
Reliable Power, Built to Last
Built with high-capacity 314Ah cells and enhanced overload capability, the system delivers reliable energy performance and long-term durability, providing confidence for demanding backup and off-grid applications.
314Ah Cells, 10000 Cycles: Long-lasting reliability
130% Overload (10s): Supports peak loads
Flexible Expansion & Compatibility
From battery compatibility to installation options, the system offers greater deployment freedom with support for mixed battery configurations, both single-phase and three-phase inverters, and multiple mounting methods.
Built-in DC/DC: Mix capacities. Mix old & new batteries
1PH & 3PH Compatibility: Fits more installation scenarios
Wall & Floor Mounting: Flexible installation
Smart & Elegant by Design
Designed with intelligent battery balancing and a modern home-friendly aesthetic, delivering not only reliable energy performance but also a seamless fit into everyday living spaces.
Modern Home Aesthetics: Compact and elegant
Active Balancing: Voltage and SOC optimization
OVERVIEW
Model
GW5.0-BAT-LVI-G10
Rated Energy (kWh)
5
Max. Output Power (System) (kW)
2.5
Peak Output Power (System) (kW)
3.75 (3s)
Cycle Life
≥10000
Ingress Protection
IP20
