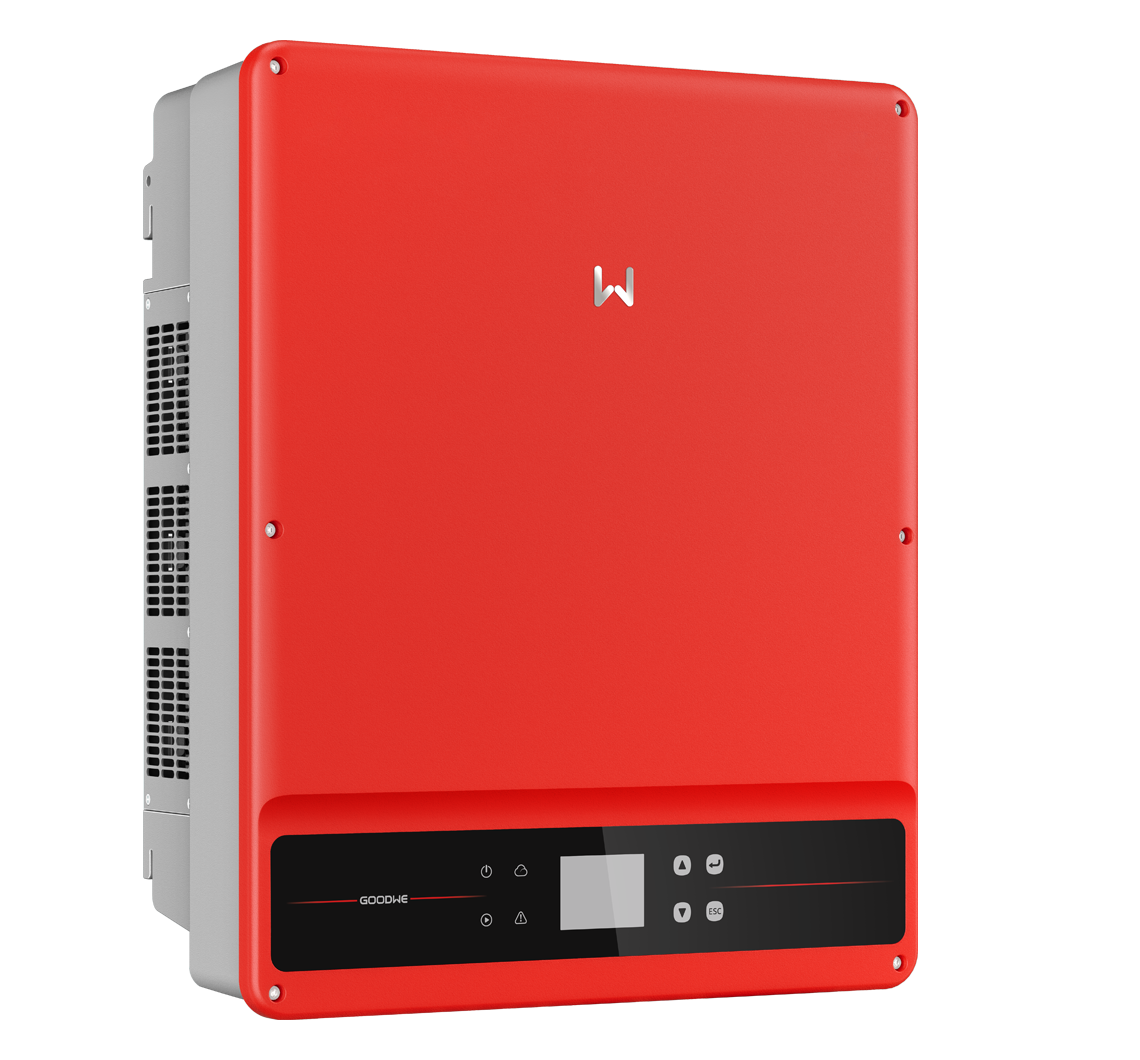

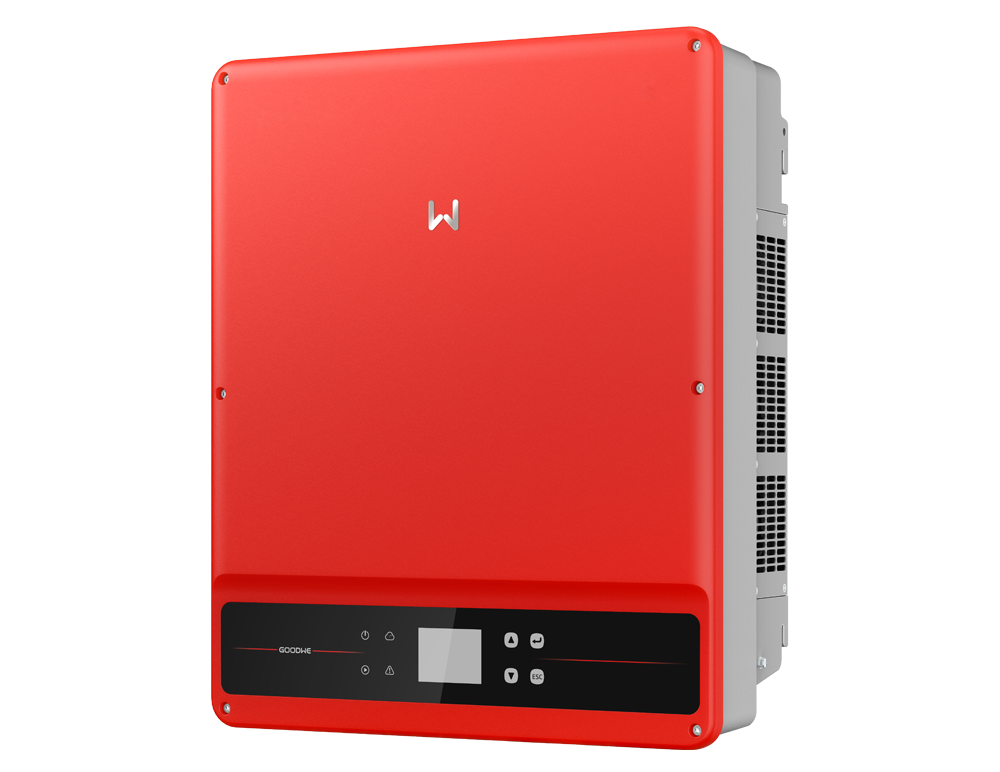

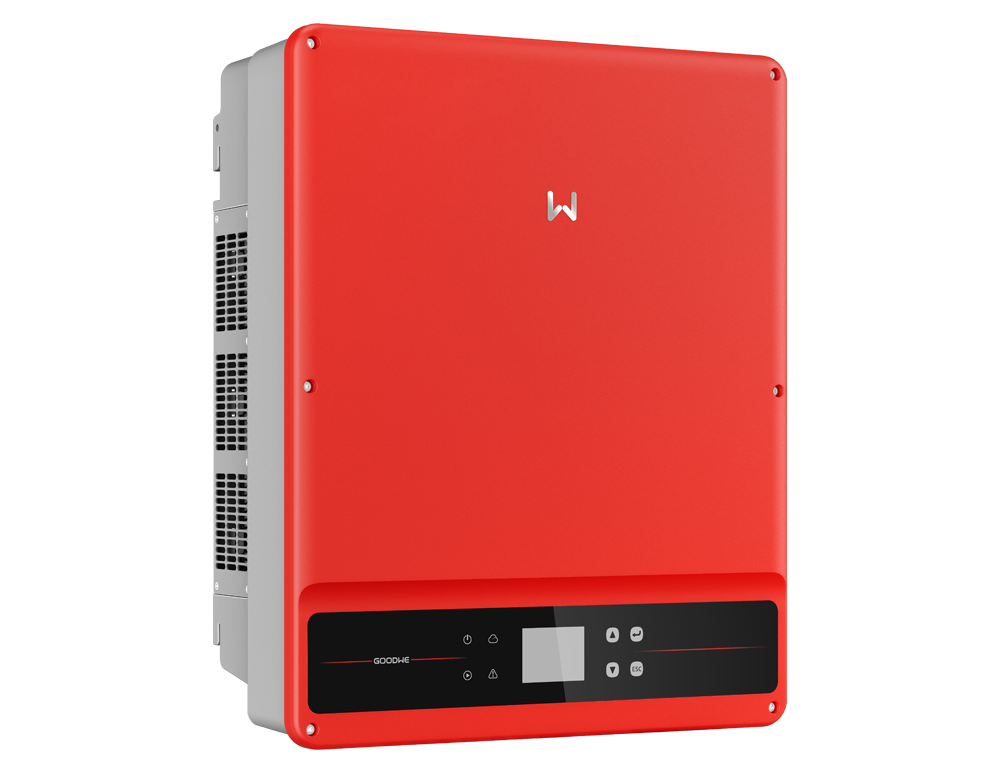

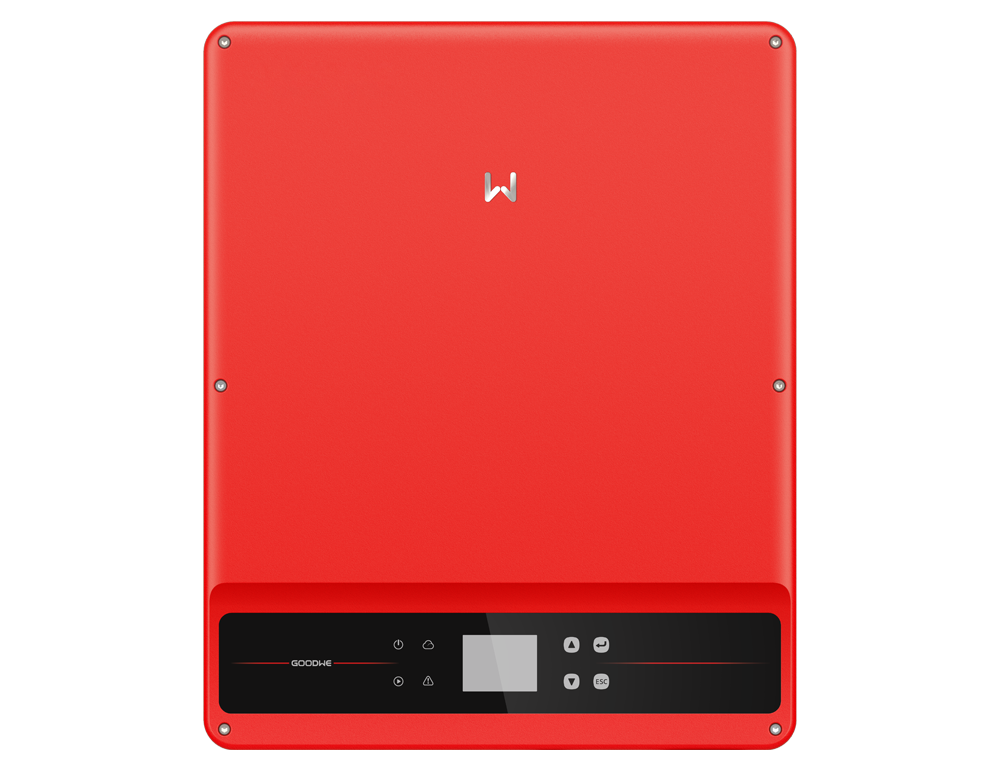

LVSMT Series

12-20 kW | Three phase | 3 MPPTs

DOWNLOAD PDF >>

Scroll

Low voltage

Latin

98.8%

GoodWe's LVSMT series three-phase inverter is designed with low voltage power input, specifically tailored to small commercial PV applications. Developed as an efficient response to South American market needs for low-voltage inverters above 10 kW, the GoodWe LVSMT series is applicable to the different grid voltage ranges in the region, which mainly cover 208 V, 220 V and 240 V. With the GoodWe LVSMT series inverter, the system configuration can be simplified by avoiding the installation of an expensive transformer which adversely affects the system’s conversion efficiency.


Max. efficiency up to 98.8%


Full-load running at 50°C


String level monitoring


130% DC input oversizing


110% AC output overloading


PLC Communication


Low voltage

Latin

98.8%

200V-950V Wide MPPT Volatge Range

Wide MPPT Range enables the solar system to start at an early stage, fully utilising the daytime to maximise solar powered energy generation, giving the highest yield.


Compatitable with High Power Module

LVSMT is designed to meet the increasing demand for 182 mm and 210 mm high power modules. With large current input and 130% DC oversizing and 110% AC overloading capacity, the system efficiency is enormously enhanced.


DC input current 15A


130% DC input oversizing


110% AC output overloading

OVERVIEW


Model

GW12KLV-MT

Max. Input Voltage (V)

800

Max. Input Current per MPPT (A)

30

Number of Strings per MPPT

2/2/2

Nominal Output Power (kW)

12

Nominal Output Voltage (V)

220V,3L/PE

Model

GW15KLV-MT

Max. Input Voltage (V)

800

Max. Input Current per MPPT (A)

30

Number of Strings per MPPT

2/2/2

Nominal Output Power (kW)

15

Nominal Output Voltage (V)

220V,3L/PE

Model

GW20KLV-MT

Max. Input Voltage (V)

800

Max. Input Current per MPPT (A)

30

Number of Strings per MPPT

2/2/2

Nominal Output Power (kW)

20.7

Nominal Output Voltage (V)

220V,3L/PE
