ESA Series

5 kW+10.8 kWh | Single phase| Home storage solution (LV)

DOWNLOAD PDF >>

Scroll

All-in-one

Pre-wired

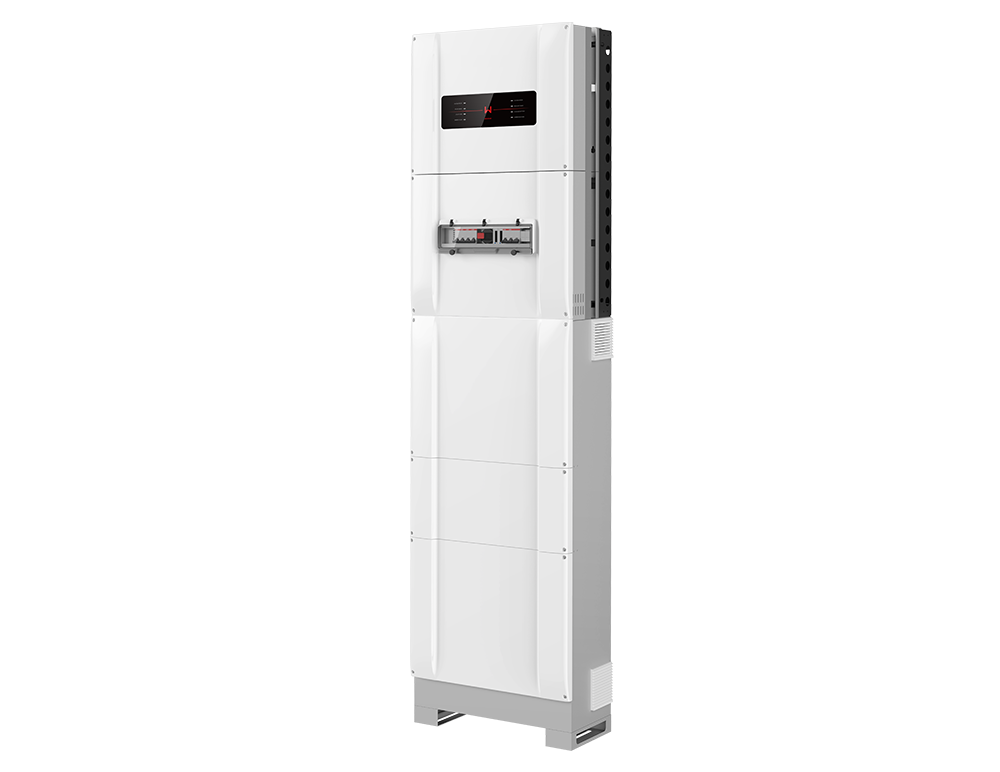

GoodWe ESA Series is an all-in-one solar and storage solution that integrates the inverter, battery charger, UPS-level switching, and battery enclosure into a pre-wired modular system for easier and faster installation. The compact, elegantly designed, and robust unit is IP65 rated, so it can be mounted either inside or outside withstanding all weather conditions and brings a reduction of installation time of up to 50%.


Reliable LFP technology with high cycle stability


Smart home integration with multi-protocol communications


<10 ms UPS-level switching


IP65 ingress protection


All-in-one

Pre-wired

Friendly & Thoughtful Design

The exquisite ESA series occupies less space and offers neater installation than a split storage system in order to create a high-performance system that is aesthetically pleasing. This masterpiece perfectly integrates with a 5 kW hybrid inverter with a 10.8 kWh Lithium battery inside. The lightweight, maneuverable system makes installation a breeze, and its aesthetically appealing design styles up your home interior.


All-in-one modularized design


Pre-wired components


Appealing design adding style to your house


Flexible & Adaptable Applications

The smart hybrid system has been designed to flexibly suit user’s needs.  The modular system is expandable with battery storage to allow for easy upgrades and future extension of the power system.


100A maximum charging and discharging current


10.8 kWh battery capacity


Expandable storage

OVERVIEW


Model

GW5048-ESA

Battery Voltage Range (V)

40~60

Max. Continuous Charging / Discharging Current(A)

90/100

Max. Input Current per MPPT (A)

14/14

Max. Apparent Power Output to Utility Grid (VA)

5000

Back-up Nominal Apparent Power (VA)

4600
