ES LD Series
5-10kW | Split & Two Phase | 2 MPPTs | Hybrid Inverter
DOWNLOAD PDF >>
Micro-grid
IP66

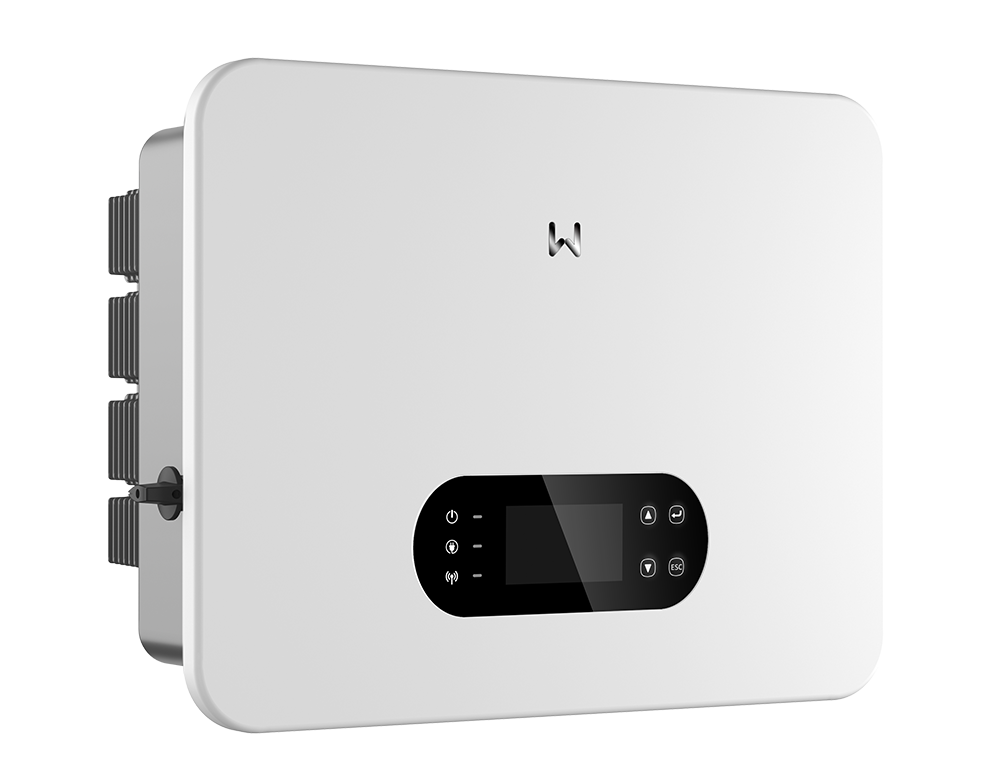

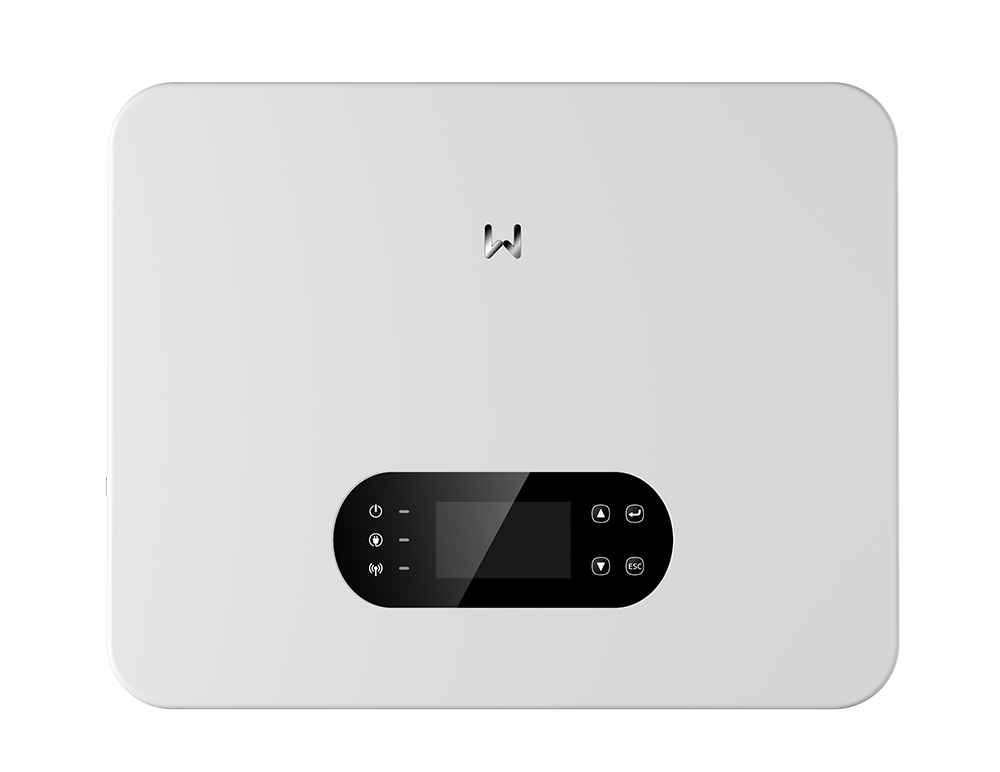

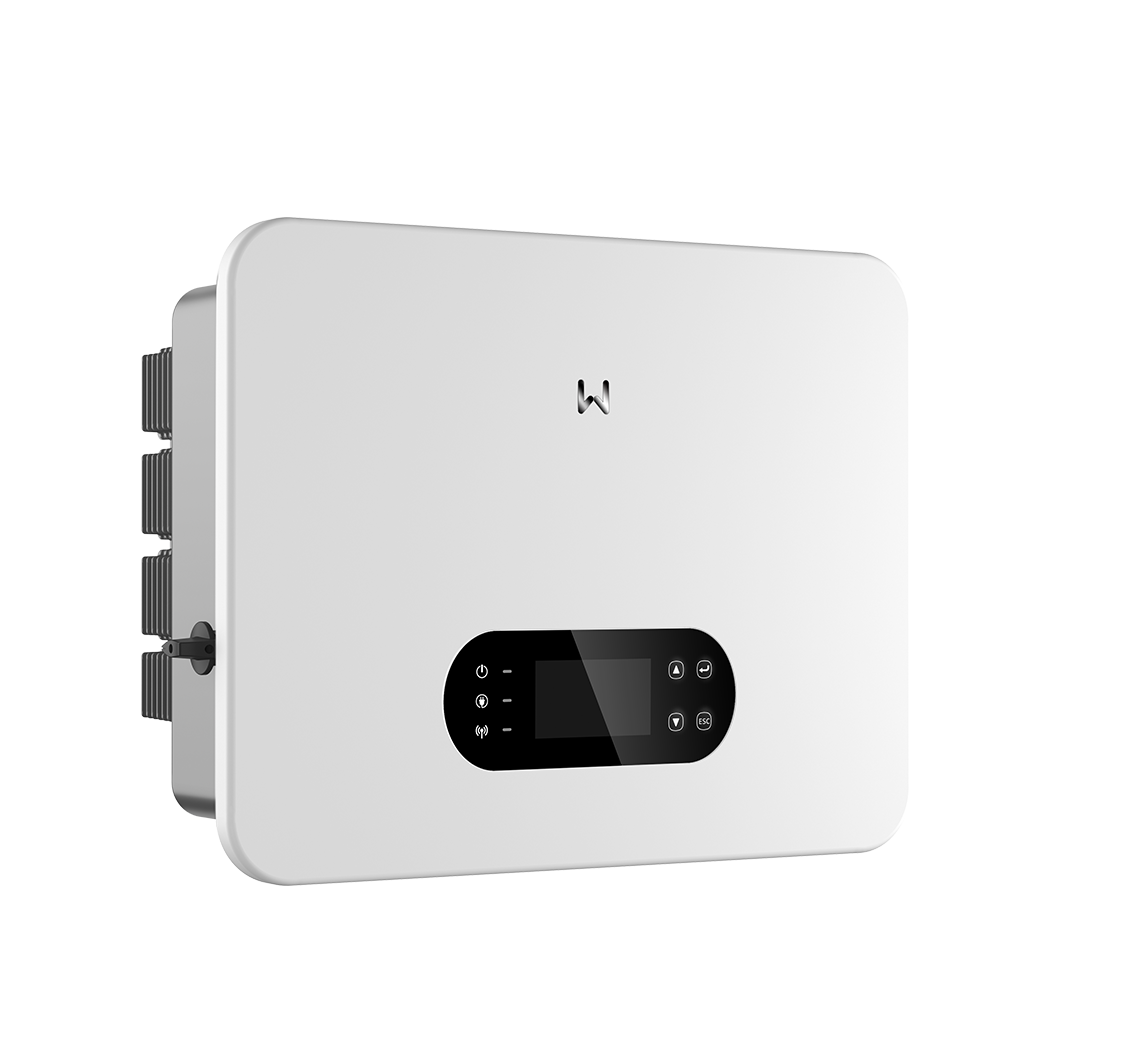

The GoodWe ES LD Series (5–10 kW) is a split & two phase hybrid inverter designed for residential and small commercial applications. It offers flexible compatibility with both on-grid and off-grid systems, supporting 48 V low-voltage lithium or lead-acid batteries with battery-ready functionality. The ES LD Series delivers AC output voltages of 120/208, 127/220 V, 120/240 V, and 127/254 V to meet diverse market requirements.
200% DC oversizing & 200% AC overload
3-in-1 Port: Generator & On-grid Inverter & Smart Load
Seamless switching < 4ms
AI-driven AFCI 3.0 for safety
Micro-grid
IP66
Reliable Backup Power, Always Ready
With seamless switching in under 4ms and full compatibility with generators—including battery charging support—the ES LD ensures your essential loads stay powered without interruption, even during outages.
Seamless switching < 4ms
Generator compatibility and charge for battery
High Performance and Adaptable Applications
With 20A per string, 200% PV oversizing, and 220A continuous charge/discharge, the ES LD ensures high-performance solar integration while offering adaptable operation—supporting on/off-grid parallel setups and two & split phase output options available to meet diverse household needs.
200% DC oversizing & 200% AC overload
Supports on-and off-grid parallel operation
Two-phase and split-phase output options available
OVERVIEW
Model
GW10K-ES-LD-G10
Battery Voltage Range (V)
40 ~ 60
Max. Continuous Charging / Discharging Current (A)
220 / 220
Max. Input Current per MPPT (A)
40 / 40
Max. Apparent Power Output to Utility Grid (VA)
10000
Back-up Nominal Apparent Power (VA)
10000
Model
GW7.5K-ES-LD-G10
Battery Voltage Range (V)
40 ~ 60
Max. Continuous Charging / Discharging Current (A)
165 / 165
Max. Input Current per MPPT (A)
40 / 20
Max. Apparent Power Output to Utility Grid (VA)
7500
Back-up Nominal Apparent Power (VA)
7500
Model
GW5K-ES-LD-G10
Battery Voltage Range (V)
40 ~ 60
Max. Continuous Charging / Discharging Current (A)
120 / 120
Max. Input Current per MPPT (A)
20 / 20
Max. Apparent Power Output to Utility Grid (VA)
5000
Back-up Nominal Apparent Power (VA)
5000
