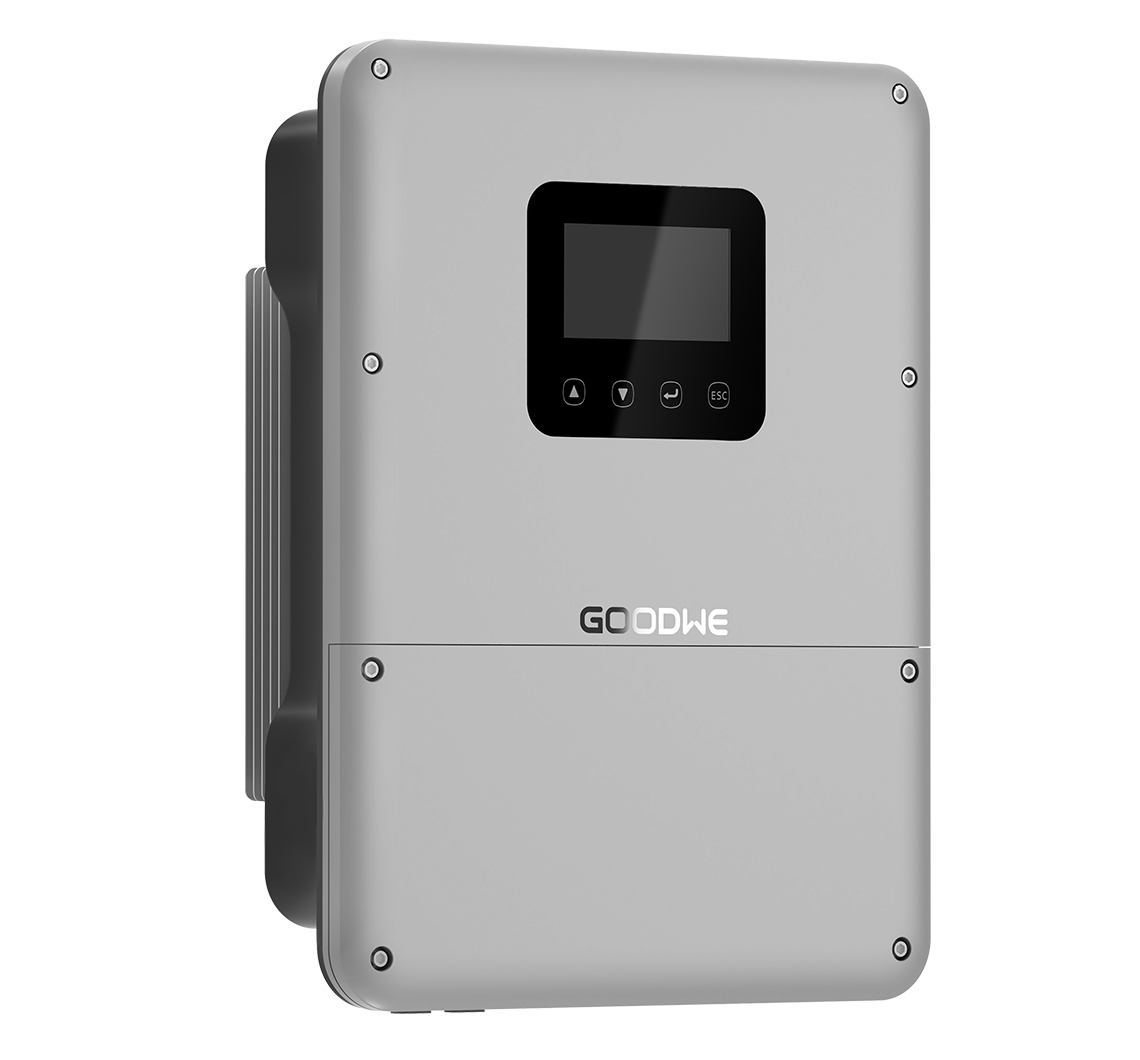

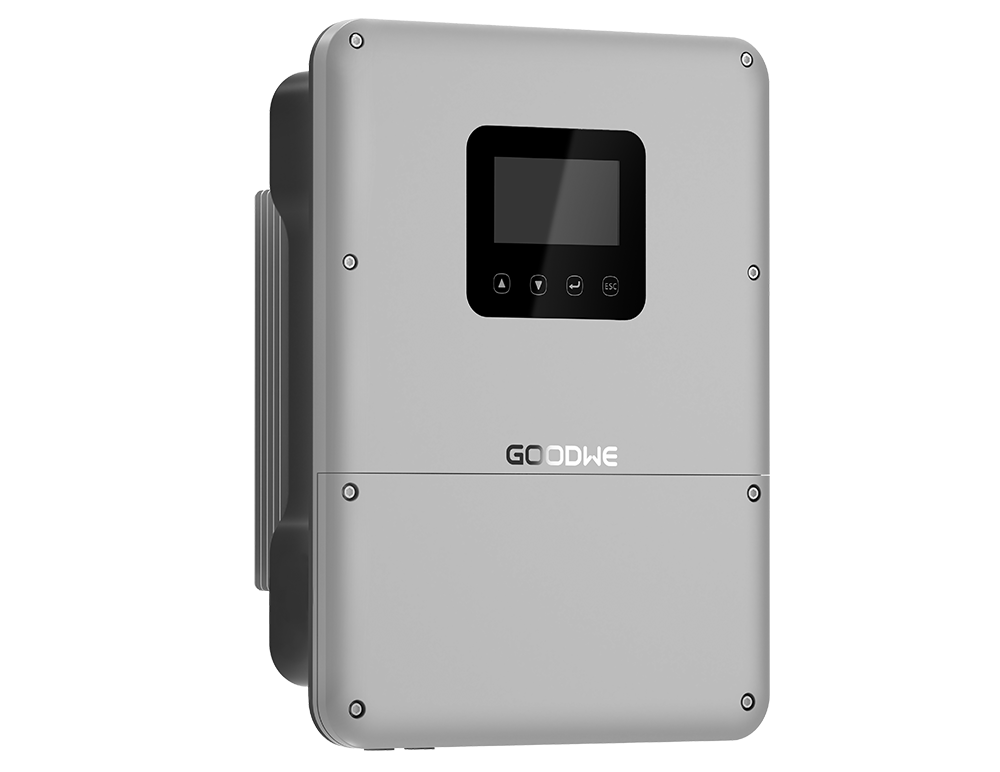

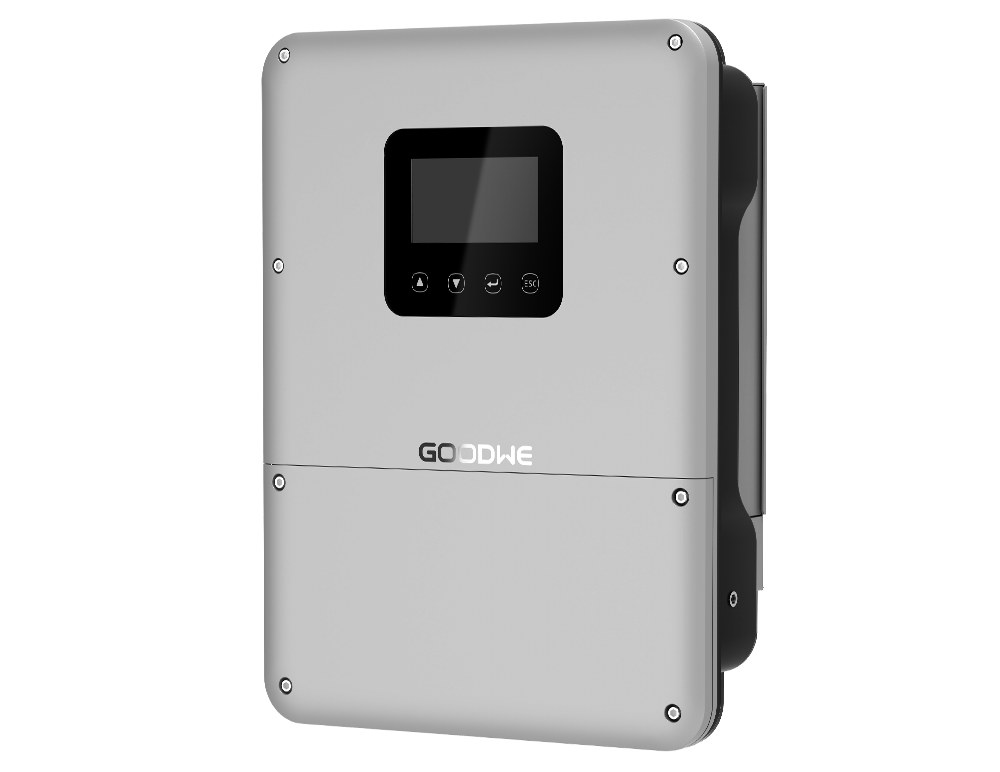

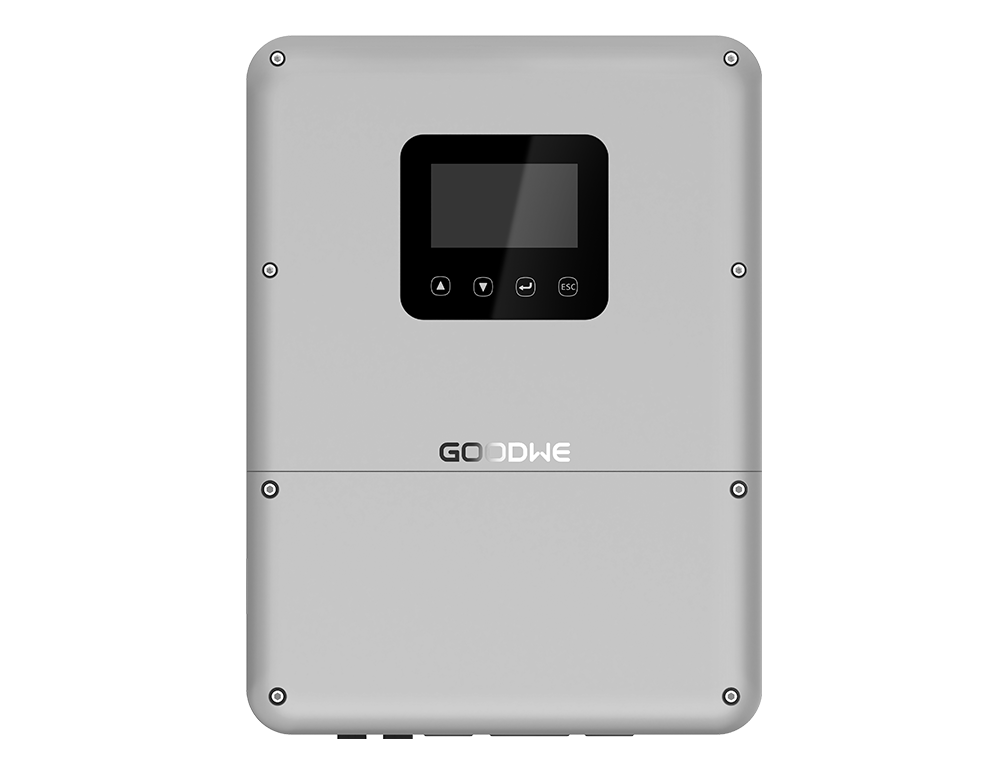

The GoodWe EO G2 Series single-phase off-grid inverter is an ideal solution for homes in areas without grid access or those experiencing frequent power outages. It supports direct generator connection and parallel operation of up to 10 units for flexible off-grid power, while the user-friendly setup minimizes installation costs. As an efficient, flexible, and reliable off-grid solution, the EO G2 provides households with continuous energy security.
IP66 Protection: Aviation Grade Connectors
200% PV Oversizing: Lower CAPEX Higher ROI
4.3″ Touchscreen: Easy On-site Control
Multi-Scenario Support: Grid, PV, ESS, Generator
IP66
98.60%
High Efficiency, Made Affordable
Maximize energy harvest with up to 200% DC oversizing and scale your system with 10 units parallel operation. It also allows 3 single-phase units to form a three-phase system, adapting to diverse off-grid needs
200% PV Oversizing: Lower CAPEX Higher ROI
21A PV Input per String: Compatible with 99% PV modules
98.6% Max Efficiency: Higher Lifetime Revenue
High Protection, Made Durability
With IP66 protection, the EO G2 is built to withstand harsh outdoor conditions, while Type III AC/DC surge protection safeguards against voltage spikes, ensuring long-term reliability for off-grid applications.
IP66 Protection: Aviation Grade Connectors
Built-in GFCI: Enhanced Electrical Safety
-20°C to 55°C Operation: Harsh Environment Ready
OVERVIEW
Model
GW6K-EO-G20
Battery Voltage Range (V)
40~60
Max. Continuous Charging / Discharging Current(A)
130 / 130
Max. MPPT Current (A)
21 / 21
Max. Apparent Power from Grid (kVA)
8
Nominal Output Voltage (V)
220 / 230, L / N / PE
Model
GW5K-EO-G20
Battery Voltage Range (V)
40~60
Max. Continuous Charging / Discharging Current(A)
120 / 120
Max. MPPT Current (A)
21 / 21
Max. Apparent Power from Grid (kVA)
8
Nominal Output Voltage (V)
220 / 230, L / N / PE
Model
GW3.6K-EO-G20
Battery Voltage Range (V)
40~60
Max. Continuous Charging / Discharging Current(A)
90 / 90
Max. MPPT Current (A)
21
Max. Apparent Power from Grid (kVA)
8
Nominal Output Voltage (V)
220 / 230, L / N / PE
Model
GW3K-EO-G20
Battery Voltage Range (V)
40~60
Max. Continuous Charging / Discharging Current(A)
70 / 70
Max. MPPT Current (A)
21
Max. Apparent Power from Grid (kVA)
8
Nominal Output Voltage (V)
220 / 230, L / N / PE
