DNS Series

3-6 kW | Single phase | 2 MPPTs

DOWNLOAD PDF >>

Scroll

Fanless

Noiseless

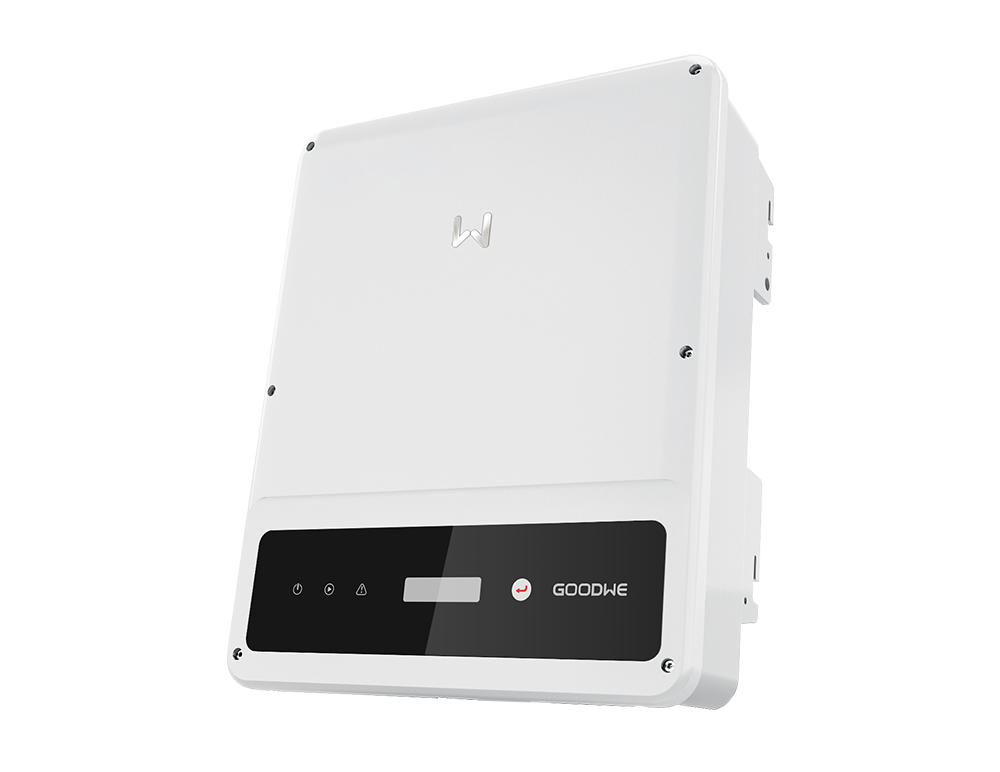

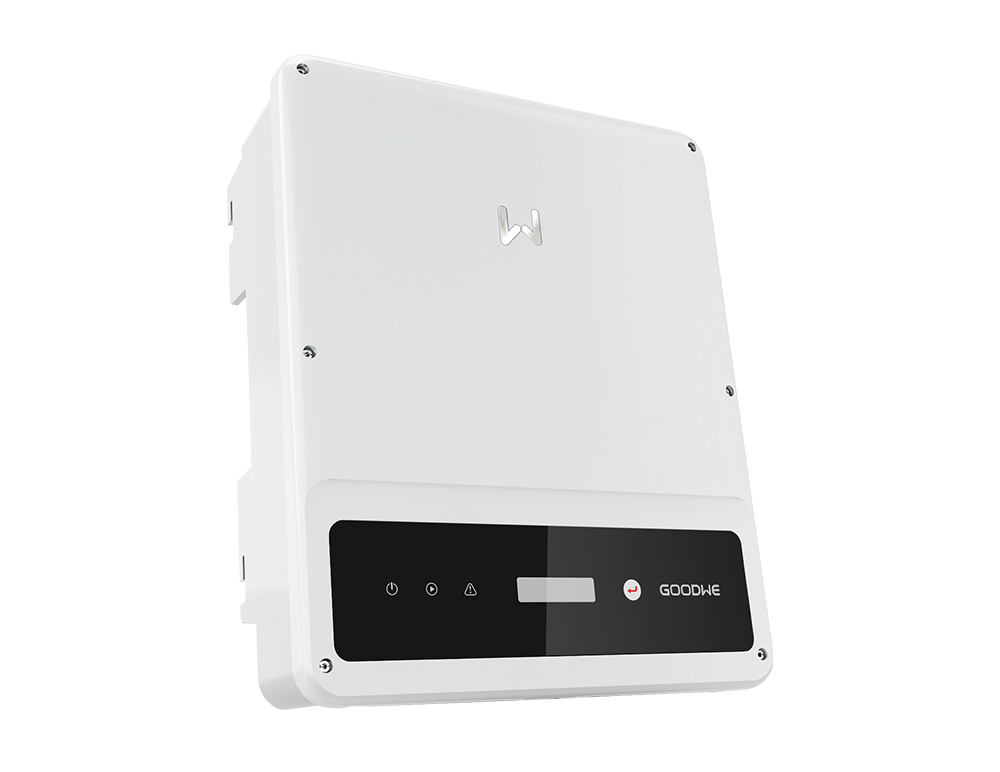

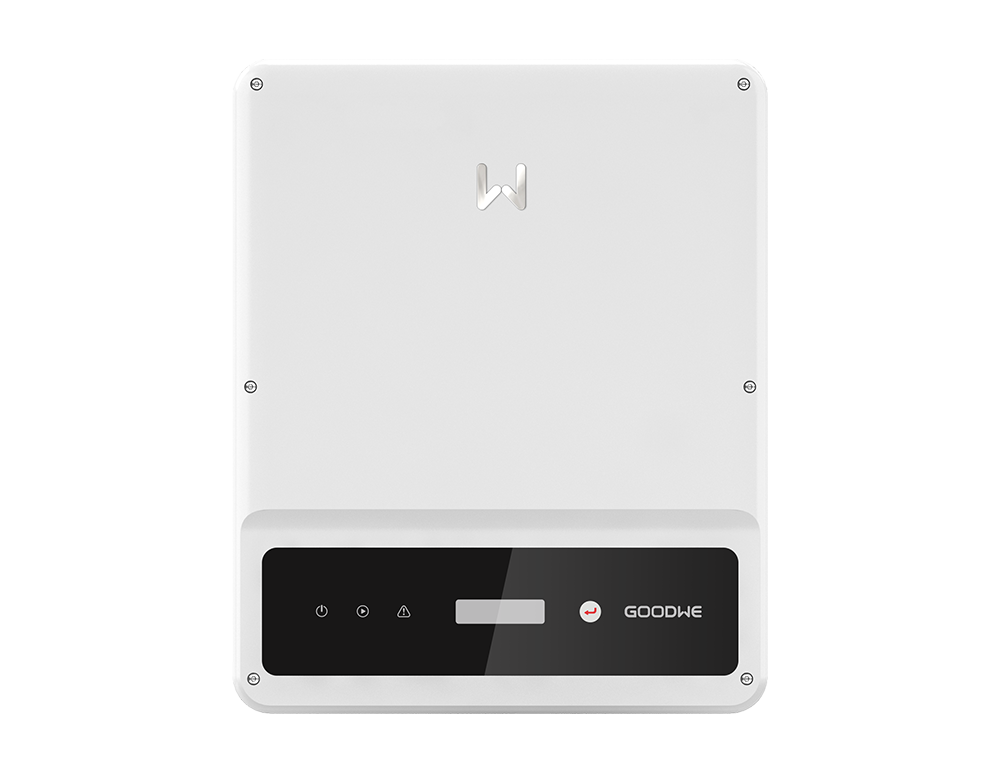

GoodWe DNS series is a perfect match for residential installations thanks to its compact size and light weight. Manufactured for durability and longevity under modern industrial standards, GoodWe DNS series is IP65 rated so it can be mounted either inside or outside your home. With a low start-up voltage of only 80V and the widest MPPT voltage range of 80-550 V, these inverters can provide greater options for your household system. The GoodWe DNS series is also extremely light, 30% lighter than other inverters.



80V start-up voltage


Wide range of MPPT voltage


Fanless and noiseless


Small, light weight & easy to install


Export control


Flexible communication methods


Fanless

Noiseless

Export Control

Control the amount of power exported to the grid up to zero output, in compliance with your electricity utility's requirements.


Easy Installation & Maintenance

With its compact size, simplified wiring, and weight 30% lighter than similar products, this inverter is extremely easy to install and maintain to save you from troubles during usage.


Various communication options


30% Lighter than similar products


20% Volume optimization

OVERVIEW


Model

GW6000T-DS

Max. Input Voltage (V):

600

Max. Input Current per MPPT (A):

13

Number of MPP trackers/Number of Strings per MPPT:

2/1

Weight (kg) :

13.5

Nominal Output Voltage (V) :

220/230

Model

GW5000T-DS

Max. Input Voltage (V):

600

Max. Input Current per MPPT (A):

13

Number of MPP trackers/Number of Strings per MPPT:

2/1

Weight (kg) :

13.0

Nominal Output Voltage (V) :

220/230

Model

GW4200T-DS

Max. Input Voltage (V):

600

Max. Input Current per MPPT (A):

13

Number of MPP trackers/Number of Strings per MPPT:

2/1

Weight (kg) :

13.0

Nominal Output Voltage (V) :

220/230

Model

GW3600T-DS

Max. Input Voltage (V):

600

Max. Input Current per MPPT (A):

13

Number of MPP trackers/Number of Strings per MPPT:

2/1

Weight (kg) :

13.0

Nominal Output Voltage (V) :

220/230

Model

GW3000T-DS

Max. Input Voltage (V):

600

Max. Input Current per MPPT (A):

13

Number of MPP trackers/Number of Strings per MPPT:

2/1

Weight (kg) :

13.0

Nominal Output Voltage (V) :

220/230

Model

GW3000D-NS

Max. Input Voltage (V):

600

Max. Input Current per MPPT (A):

11

Number of MPP trackers/Number of Strings per MPPT:

2/1

Weight (kg) :

13.0

Nominal Output Voltage (V) :

220/230

Model

GW2900D-NS

Max. Input Voltage (V):

535

Max. Input Current per MPPT (A):

12.5

Number of MPP trackers/Number of Strings per MPPT:

2/1

Weight (kg) :

13.0

Nominal Output Voltage (V) :

127

Model

GW3600D-NS

Max. Input Voltage (V):

600

Max. Input Current per MPPT (A):

11

Number of MPP trackers/Number of Strings per MPPT:

2/1

Weight (kg) :

13.0

Nominal Output Voltage (V) :

220/230

Model

GW4200D-NS

Max. Input Voltage (V):

600

Max. Input Current per MPPT (A):

11

Number of MPP trackers/Number of Strings per MPPT:

2/1

Weight (kg) :

13.0

Nominal Output Voltage (V) :

220/230

Model

GW5000D-NS

Max. Input Voltage (V):

600

Max. Input Current per MPPT (A):

11

Number of MPP trackers/Number of Strings per MPPT:

2/1

Weight (kg) :

13.0

Nominal Output Voltage (V) :

220/230

Model

GW6000D-NS

Max. Input Voltage (V):

600

Max. Input Current per MPPT (A):

11

Number of MPP trackers/Number of Strings per MPPT:

2/1

Weight (kg) :

13.5

Nominal Output Voltage (V) :

220/230
