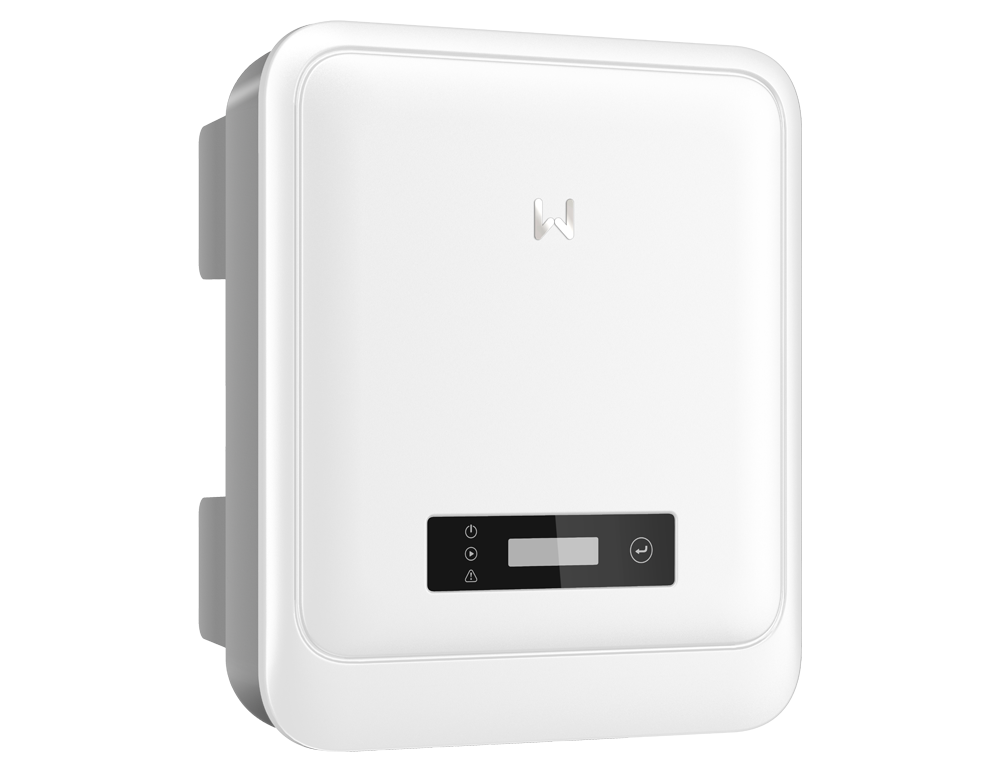

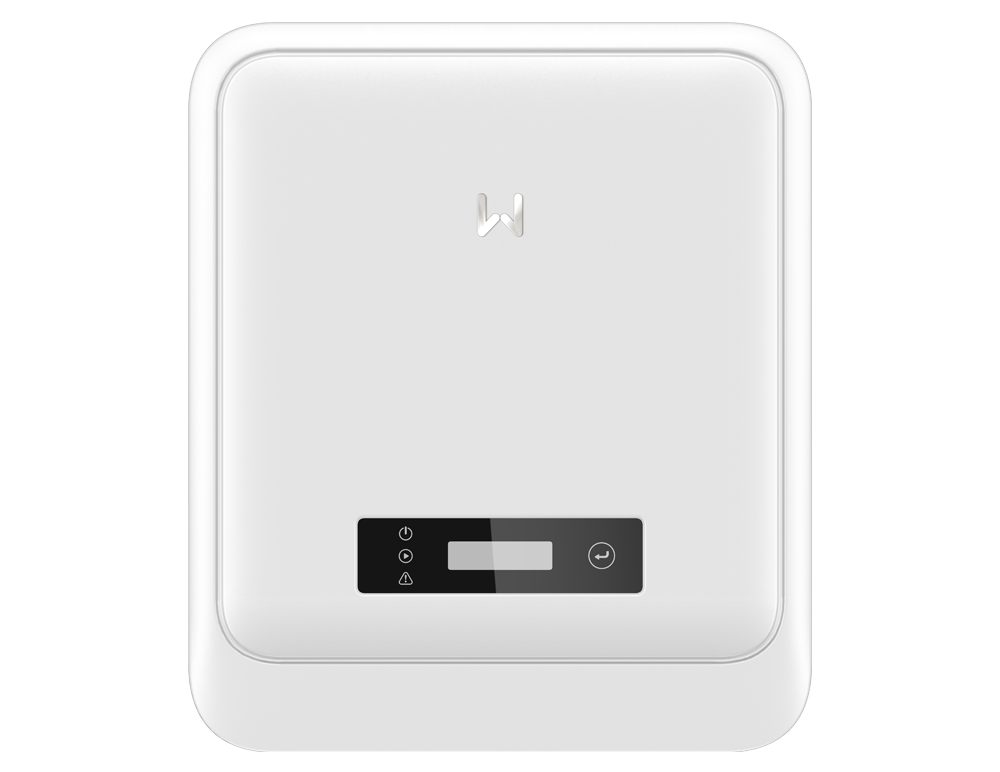

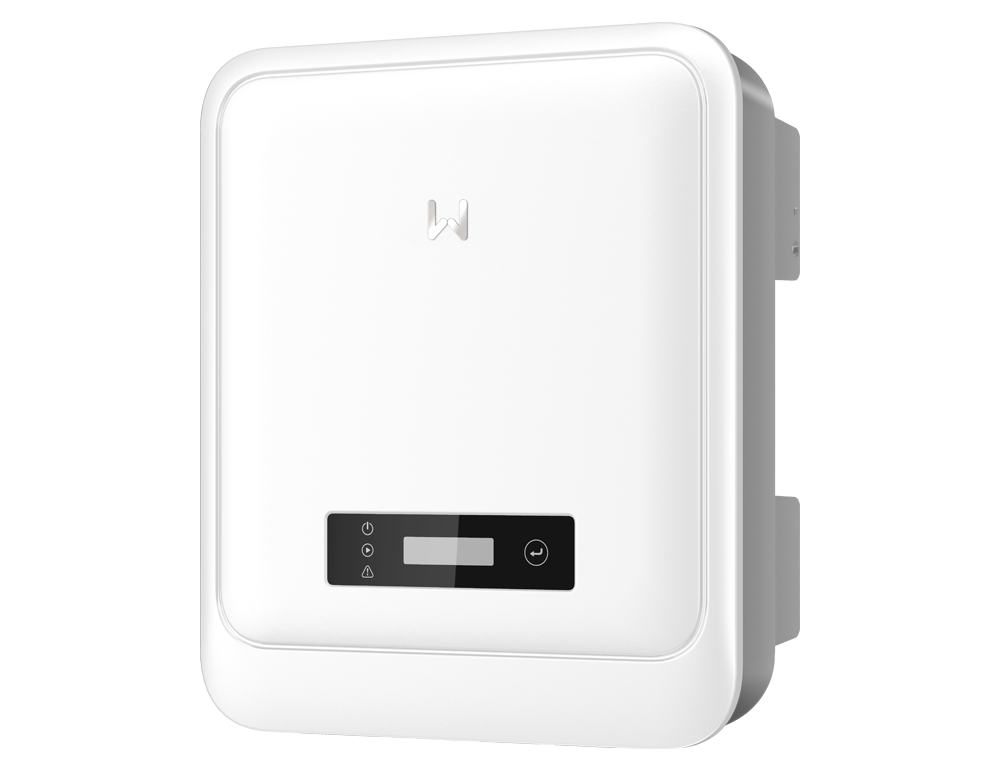

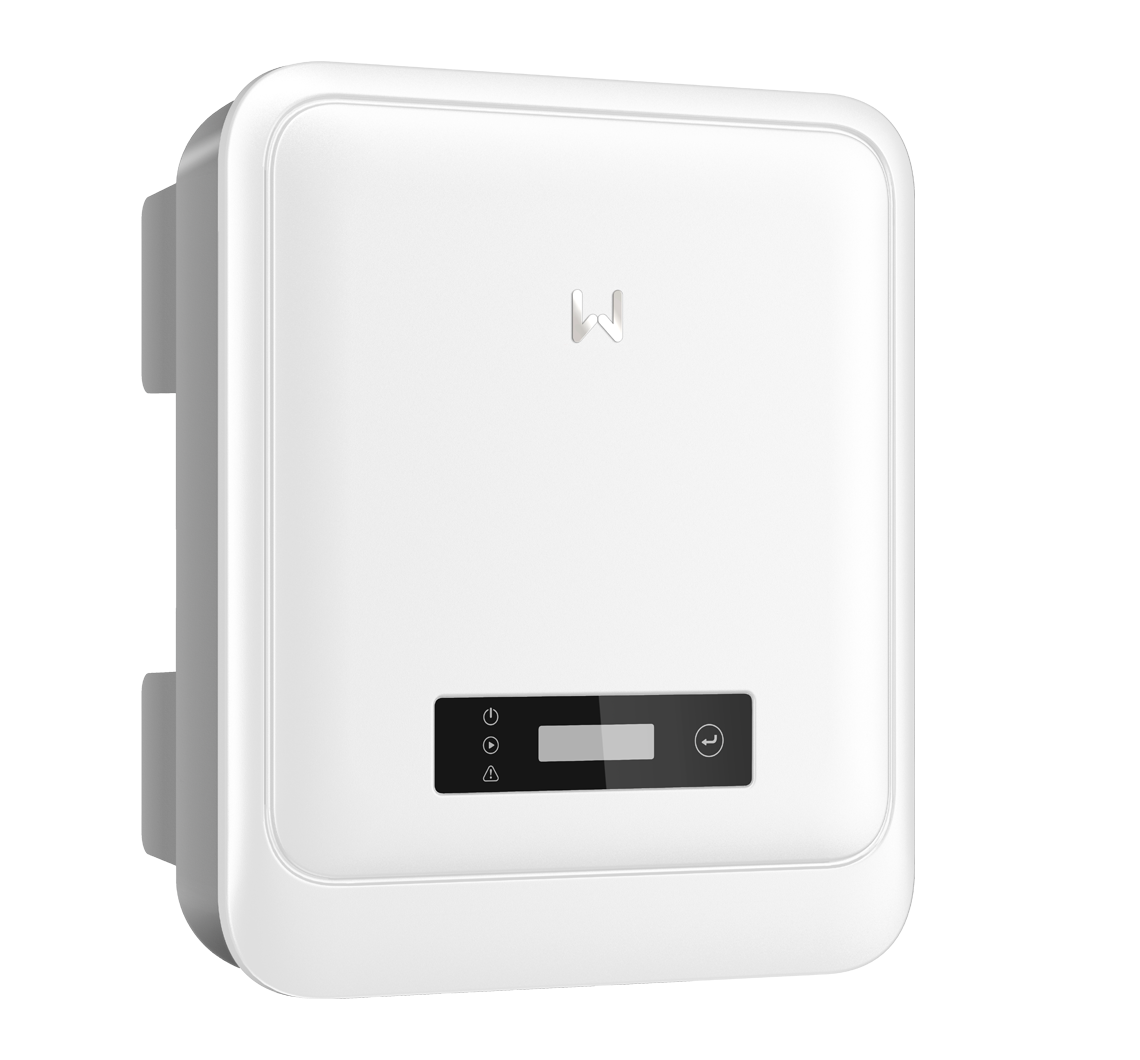

DNS G3

3-6 kW | Single Phase | 2 MPPTs

DOWNLOAD PDF >>

Scroll

IP66

Fanless cooling

The GoodWe DNS G3 series inverter is specially designed for single-phase residential applications. Integrated with high-current input and DC input oversizing capabilities, the series can bring you optimized power generation and make substantial returns. With its lighter and fanless house fit-in compact design, the DNS G3 inverter provides a reliable power supply yet runs at a super quiet operation below 25dB. The inverter also takes safety measures including optional Arc Fault Failure Interrupter (AFCI) and Type II Surge Protection Device (SPD) on both sides to protect the system from electrical fire and lightning hazards in extreme environments for guaranteed safety.


24/7 load consumption monitoring


Multiple communication protocols supported


Optional AFCI preventing electrical fires


Optional AC & DC Type II SPD & SPD failure alarm


IP66

Fanless cooling

Superb Safety & Reliability

The emphasizing integrated safety features of optional AFCI, IP 66 ingress protection, smart SPD failure alarm and Type II surge protector on both sides can assure continuous safety and protect the whole PV system from hazards in extreme conditions.


Optional AFCI


Optional AC & DC Type II SPD & SPD failure alarm


Smart Control & Monitoring

DNS G3 Series supports dry contact connection and multiple protocols including Modbus RTU and Sunspec to realize amazing communication flexibility. In addition, users can take all-around control of energy management utilizing the featuring 24-hour load consumption monitoring enabled by GoodWe HomeKit 1000 with direct access to transparent data that quantify the system performance.


Dry contact connection


Multiple communication protocols


24-hour load consumption monitoring

Optimal Generation

Being compatible with high power modules, and allowing a maximum 16 A input current per string, the competency of this inverter is considerably improved. The 150% DC input oversizing and 110% AC output overloading capability, and 98.3% maximum efficiency drive your inverter to its full capacity to increase your power output under various solar radiation conditions.

16A

Max. 16 A input current per string

110%

DC input oversizing

98.4%

Max. Efficiency

OVERVIEW


Model

GW6000-SDT-20

Max. Input Voltage (V)

1000

Max. Input Current per MPPT (A)

16

Number of Strings per MPPT

1

Nominal Output Power (kW)

6

Nominal Output Voltage (V)

400,3L/N/PE

Model

GW5000-SDT-20

Max. Input Voltage (V)

1000

Max. Input Current per MPPT (A)

16

Number of Strings per MPPT

1

Nominal Output Power (kW)

5

Nominal Output Voltage (V)

400,3L/N/PE

Model

GW4000-SDT-20

Max. Input Voltage (V)

1000

Max. Input Current per MPPT (A)

16

Number of Strings per MPPT

1

Nominal Output Power (kW)

4

Nominal Output Voltage (V)

400,3L/N/PE

Model

GW20K-SDT-20

Max. Input Voltage (V)

1100

Max. Input Current per MPPT (A)

30

Number of Strings per MPPT

2

Nominal Output Power (kW)

20

Nominal Output Voltage (V)

380/400/415, 3L/N/PE

Model

GW17K-SDT-20

Max. Input Voltage (V)

1100

Max. Input Current per MPPT (A)

30

Number of Strings per MPPT

2

Nominal Output Power (kW)

17

Nominal Output Voltage (V)

380/400/415, 3L/N/PE

Model

GW15K-SDT-20

Max. Input Voltage (V)

1100

Max. Input Current per MPPT (A)

30

Number of Strings per MPPT

2

Nominal Output Power (kW)

15

Nominal Output Voltage (V)

380/400/415, 3L/N/PE

Model

GW12KLV-SDT-20

Max. Input Voltage (V)

800

Max. Input Current per MPPT (A)

30

Number of Strings per MPPT

2

Nominal Output Power (kW)

12

Nominal Output Voltage (V)

220/127, 3L/N/PE

Model

GW12K-SDT-20

Max. Input Voltage (V)

1100

Max. Input Current per MPPT (A)

30/30

Number of Strings per MPPT

2/2

Nominal Output Power (kW)

12

Nominal Output Voltage (V)

220/380, 230/400, 240/415

Model

GW10K-SDT-20

Max. Input Voltage (V)

1100

Max. Input Current per MPPT (A)

15

Number of Strings per MPPT

1

Nominal Output Power (kW)

10

Nominal Output Voltage (V)

380/400/415, 3L/N/PE

Model

GW8000-SDT-20

Max. Input Voltage (V)

1100

Max. Input Current per MPPT (A)

15

Number of Strings per MPPT

1

Nominal Output Power (kW)

8

Nominal Output Voltage (V)

380/400/415,3L/N.PE
