IP55
LiFePO4

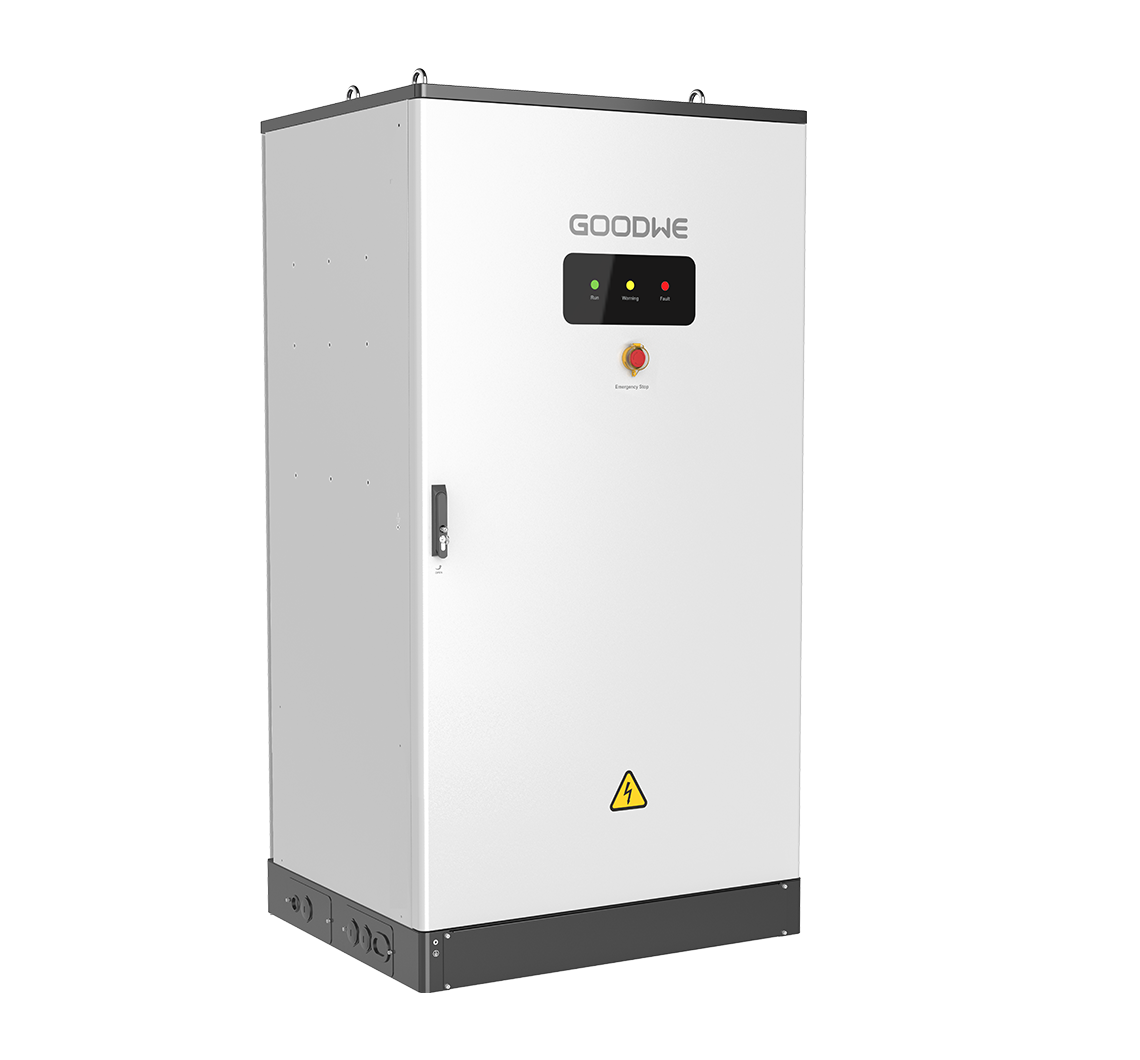

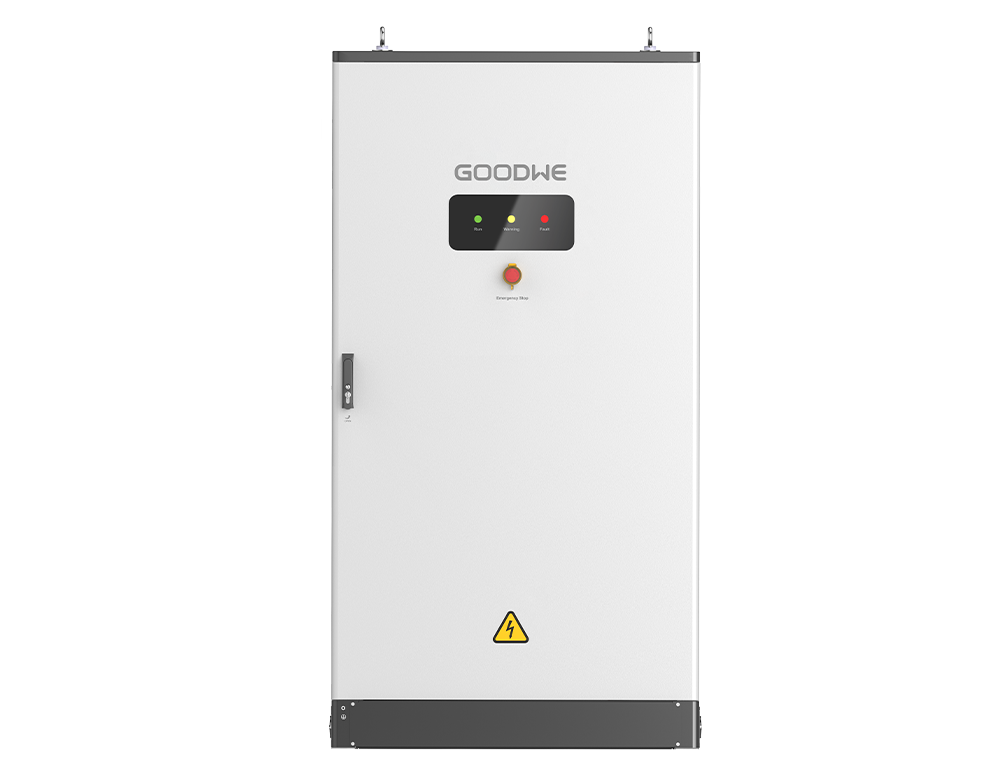

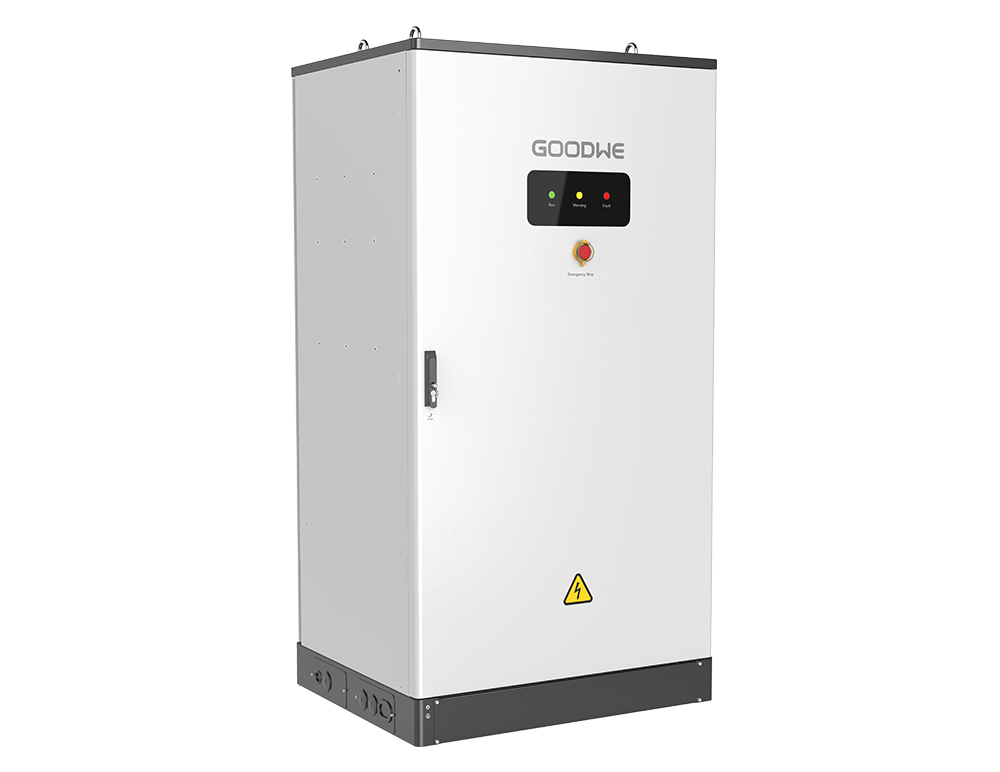

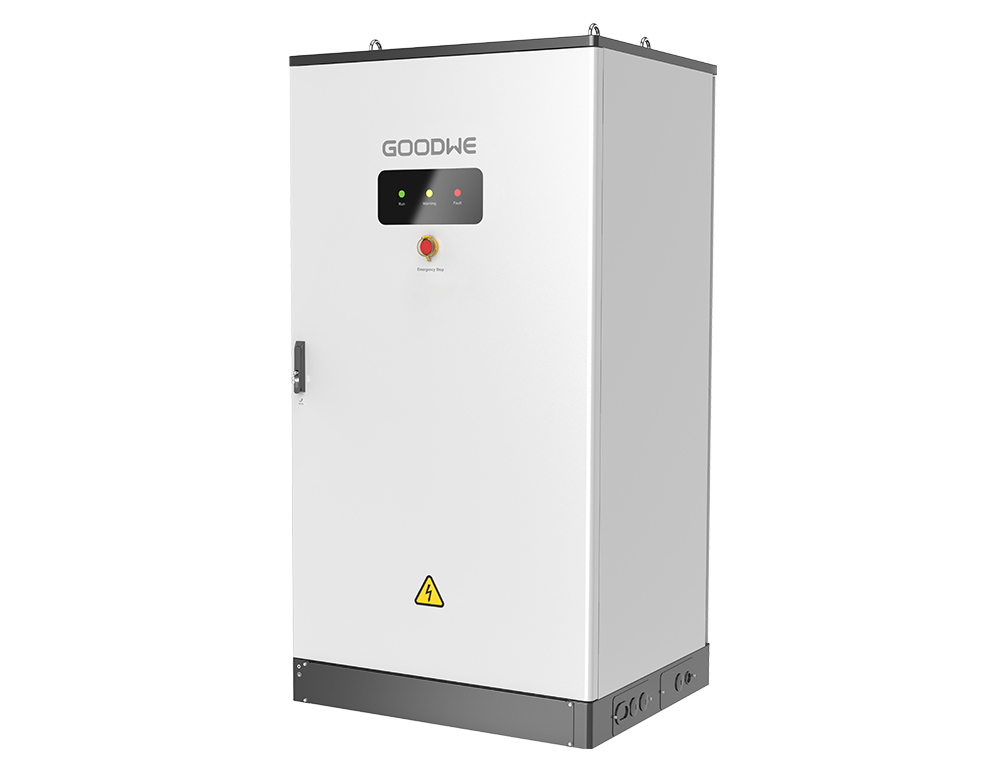

GoodWe's BAT-C Series high-voltage lithium batteries, available in 61.4kWh, 102.4kWh and 112.6kWh capacities, are specifically designed for small to medium-sized commercial and industrial (C&I) applications.
Paired with GoodWe ET hybrid inverters, Static Transfer Switch (STS) box, the BAT-C battery system provides a complete, easy-to-install, and high-performance energy storage solution. This powerful system delivers efficient energy backup, peak shaving, and optimized load management.
Max. Continuous 0.9C charging & 1.1C discharging
Support 4 units in parallel, scaling up to 450kWh
Pack-level humidity monitoring and automatic dehumidification
Aerosol-based fire suppression system at pack- and cabinet-level
IP55
LiFePO4
Superb Safety & Reliability
The BAT-C battery is built on reliable LFP technology, offering high cycle stability for long-lasting performance. Safety is enhanced through pack-level humidity monitoring with automatic dehumidification, ensuring optimal internal conditions. In addition, an aerosol-based fire suppression system provides fast-acting protection at both the pack and cabinet levels, delivering multi-layered safety across the entire system.
Reliable LFP technology with high cycle stability
Pack-level humidity monitoring and automatic dehumidification
Aerosol-based fire suppression system at pack- and cabinet-level
Smart Control & Monitoring
Designed for dynamic energy needs, the BAT-C battery supports continuous charging at up to 0.9C and discharging at 1.1C, enabling fast energy response. With support for up to 4 units in parallel, the system scales effortlessly to 450kWh, making it ideal for a wide range of commercial and industrial applications.
Max. Continuous 0.9C charging & 1.1C discharging
Support 4 units in parallel, scaling up to 450kWh
OVERVIEW
Model
GW61.4-BAT-AC-G10
Usable Energy (kWh)
60
Nominal Voltage (V)
307.2
Max. Charge / Disharge Current (A)
180 / 220
Fire Safety Equipment
Aerosol (Pack & Cabinet Level)
Ingress Protection Rating
IP55
Model
GW102.4-BAT-AC-G10
Usable Energy (kWh)
100
Nominal Voltage (V)
512.0
Max. Charge / Disharge Current (A)
180 / 220
Fire Safety Equipment
Aerosol (Pack & Cabinet Level)
Ingress Protection Rating
IP55
Model
GW112.6-BAT-AC-G10
Usable Energy (kWh)
110
Nominal Voltage (V)
563.2
Max. Charge / Disharge Current (A)
180 / 220
Fire Safety Equipment
Aerosol (Pack & Cabinet Level)
Ingress Protection Rating
IP55
