LFP
Rack design

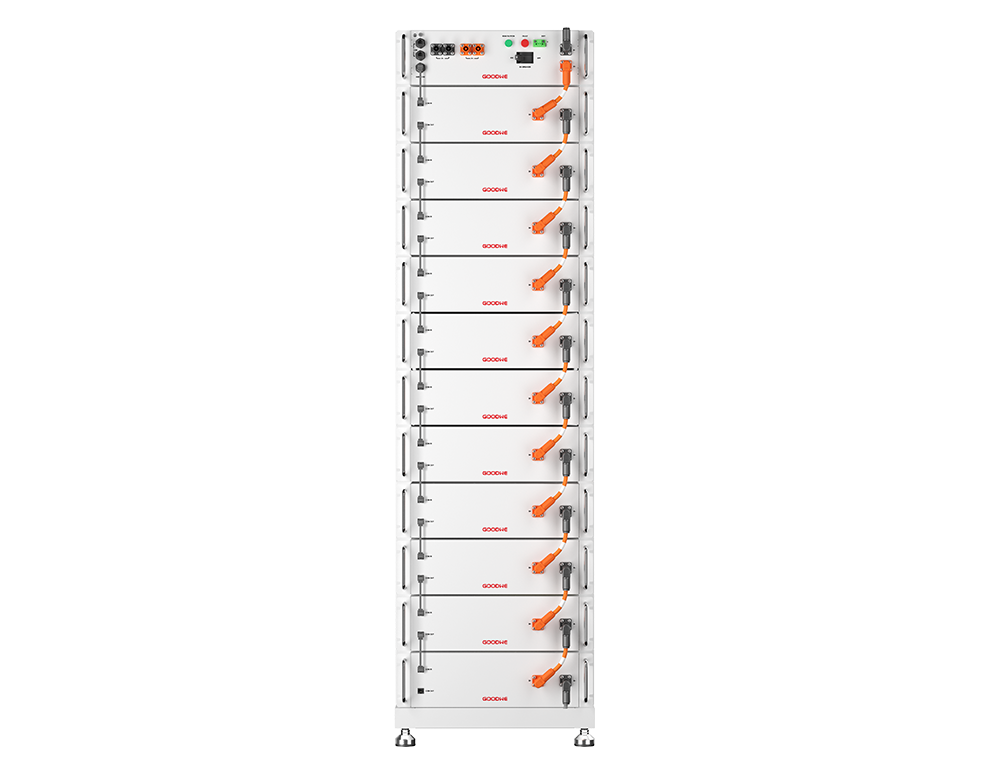

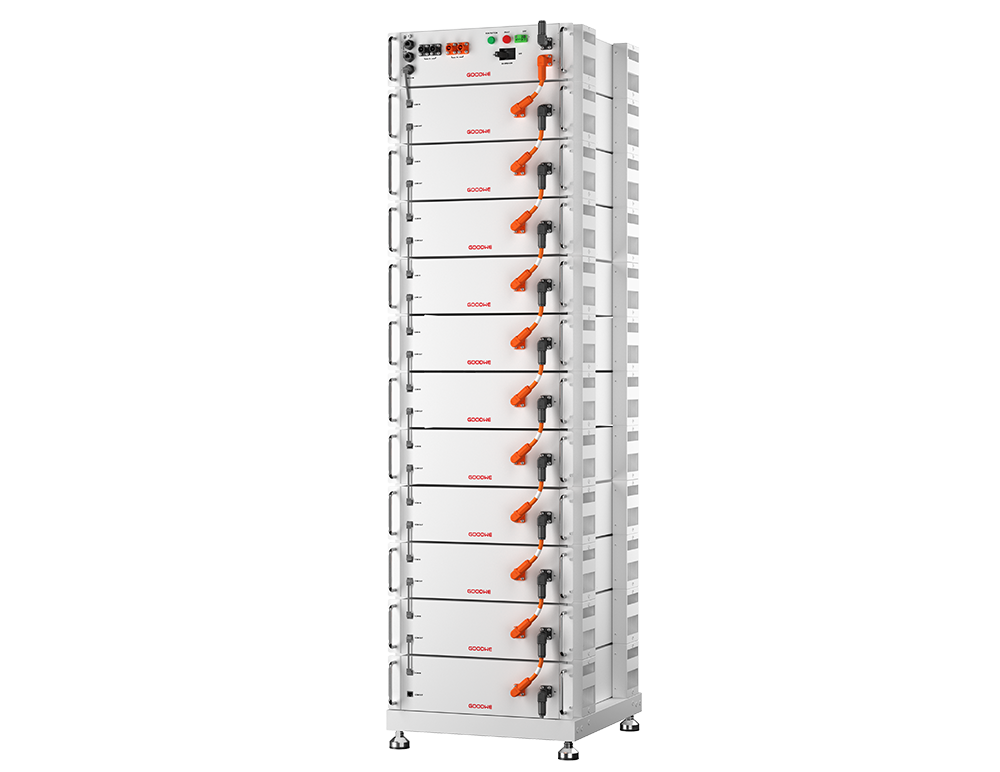

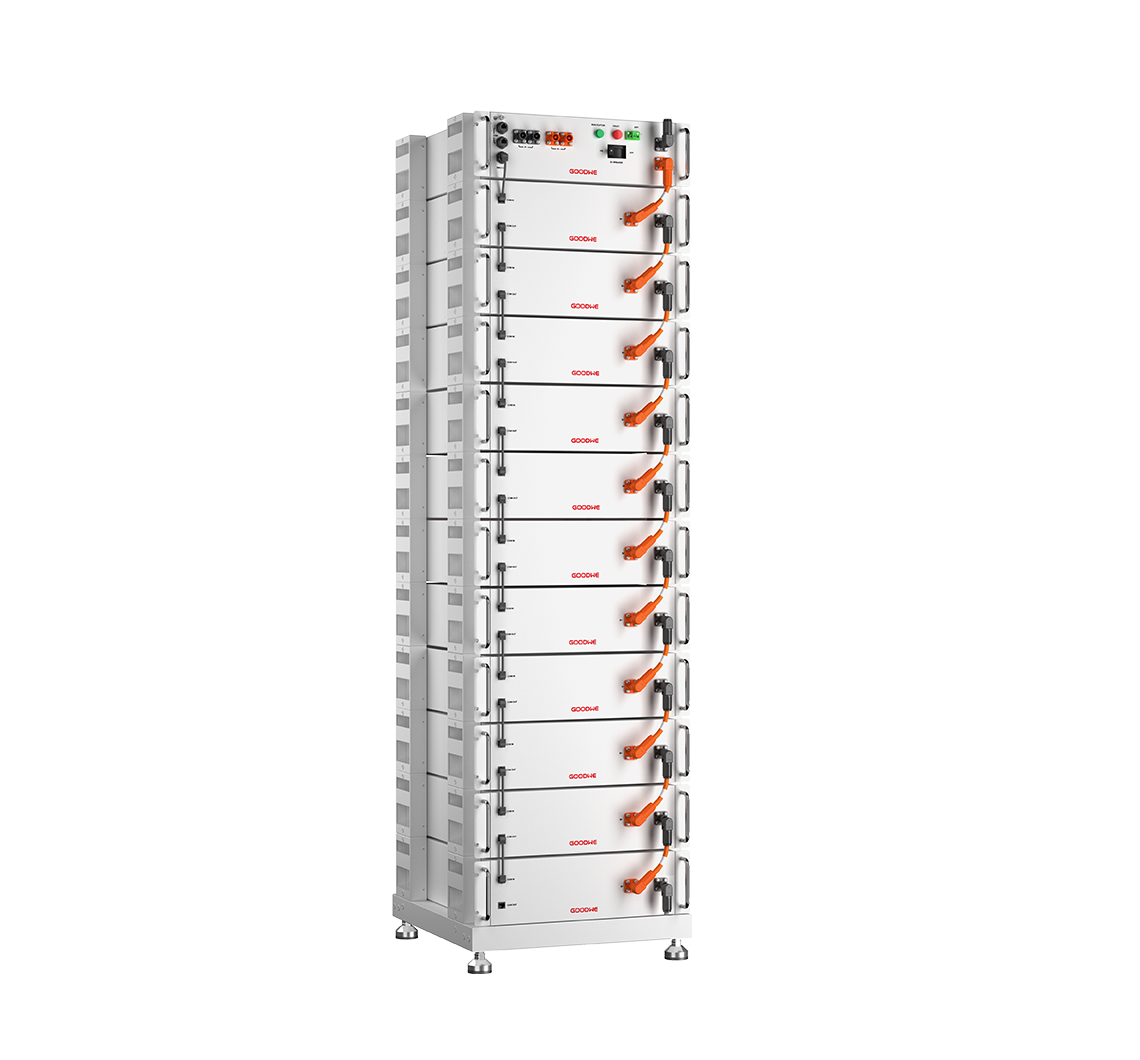

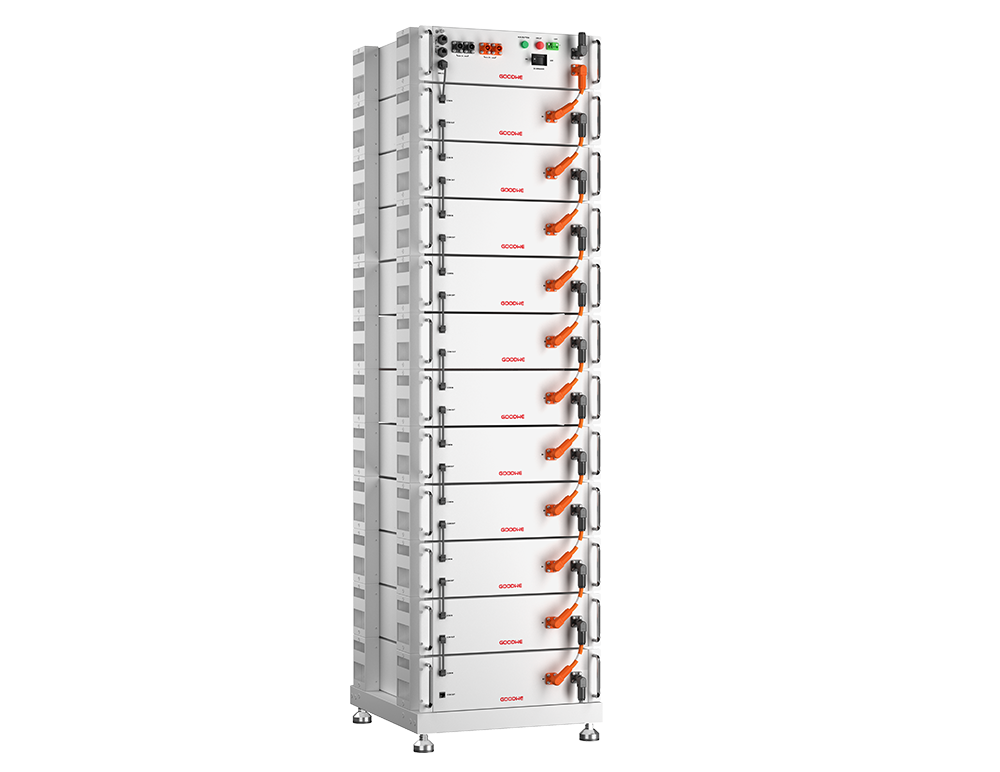

GoodWe's BAT Series, available in 25.6 – 56.3kWh, is a high-voltage lithium battery specially designed for small commercial and industrial (C&I) applications with superior performance.is a high-voltage lithium battery designed specifically for small commercial and industrial (C&I) applications. Its modular design supports stacking 5 – 11 battery packs per system, enabling highly flexible capacity expansion to suit diverse project requirements.
5–11 pack stacking for flexible configuration
Reliable LFP technology with high cycle stability
Modular design for easy transportation and installation
Aerosol-based fire suppression system at pack-level
LFP
Rack design
Superb Safety & Reliability
The GoodWe BAT battery ensures safety and reliability with its advanced LFP (Lithium Iron Phosphate) technology, offering exceptional cycle stability for long-lasting performance. For added protection, it features an optional aerosol-based fire suppression system at the pack level, providing an extra layer of security to prevent fire risks and enhance overall safety.
Reliable LFP technology with high cycle stability
Aerosol-based fire suppression system at pack-level
Smart Control & Monitoring
The modular design ensures hassle-free transportation and installation, while its expandable capacity supports up to 6 units of battery racks in parallel, reaching an impressive 337.8kWh for maximum energy storage flexibility.
Supports up to 6 battery racks in parallel (337.8kWh)
Modular design for easy transportation and installation
OVERVIEW
Model
GW25.6-BAT-I-G10
Usable Energy (kWh)
25
Nominal Voltage (V)
256
Max. Charge / Disharge Current (A)
100 / 110
Fire Safety Equipment
Aerosol Optional, Pack Level
Ingress Protection Rating
IP20
Model
GW30.7-BAT-I-G10
Usable Energy (kWh)
30
Nominal Voltage (V)
307.2
Max. Charge / Disharge Current (A)
100 / 110
Fire Safety Equipment
Aerosol Optional, Pack Level
Ingress Protection Rating
IP20
Model
GW35.8-BAT-I-G10
Usable Energy (kWh)
35
Nominal Voltage (V)
358.4
Max. Charge / Disharge Current (A)
100 / 110
Fire Safety Equipment
Aerosol Optional, Pack Level
Ingress Protection Rating
IP20
Model
GW40.9-BAT-I-G10
Usable Energy (kWh)
40
Nominal Voltage (V)
409.6
Max. Charge / Disharge Current (A)
100 / 110
Fire Safety Equipment
Aerosol Optional, Pack Level
Ingress Protection Rating
IP20
Model
GW46.0-BAT-I-G10
Usable Energy (kWh)
45
Nominal Voltage (V)
460.8
Max. Charge / Disharge Current (A)
100 / 110
Fire Safety Equipment
Aerosol Optional, Pack Level
Ingress Protection Rating
IP20
Model
GW51.2-BAT-I-G10
Usable Energy (kWh)
50
Nominal Voltage (V)
512
Max. Charge / Disharge Current (A)
100 / 110
Fire Safety Equipment
Aerosol Optional, Pack Level
Ingress Protection Rating
IP20
Model
GW56.3-BAT-I-G10
Usable Energy (kWh)
55
Nominal Voltage (V)
563.2
Max. Charge / Disharge Current (A)
100 / 110
Fire Safety Equipment
Aerosol Optional, Pack Level
Ingress Protection Rating
IP20
