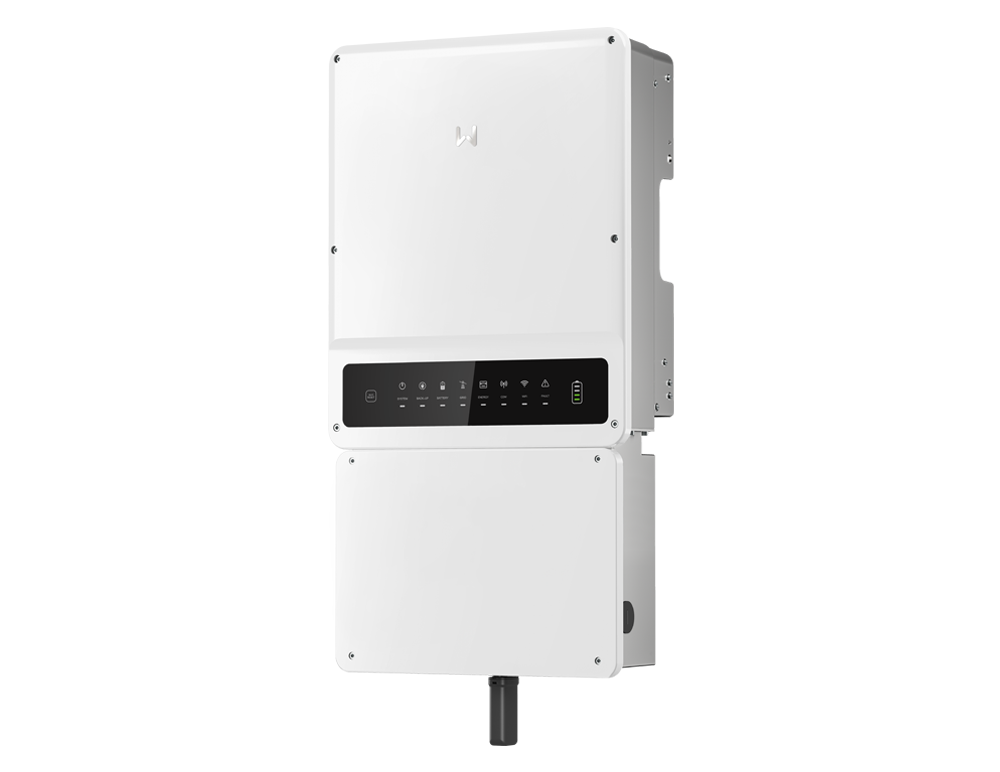

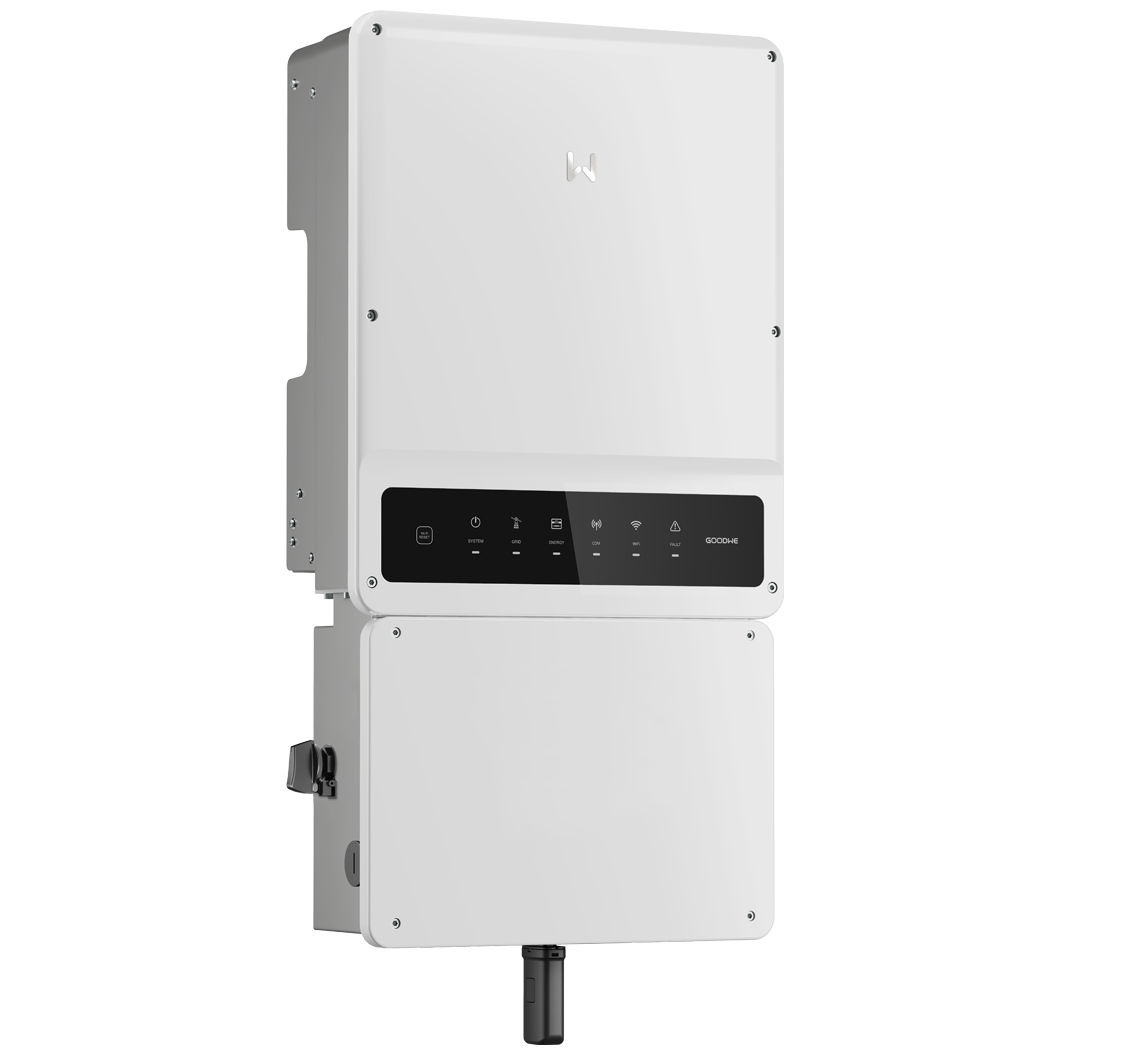

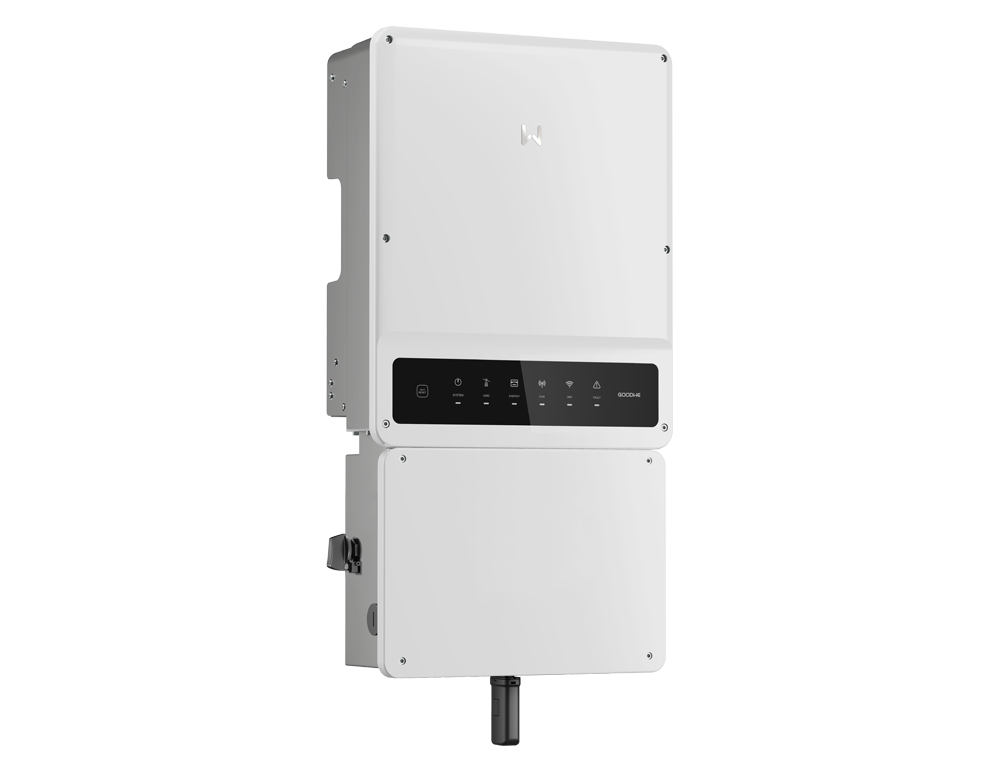

A-MS Series

5-9.6 kW I Split phase I Up to 4 MPPTs

DOWNLOAD PDF >>

Scroll

4 MPPTs

North America

10-year warranty

The A-MS is an inverter of the highest quality and we take great pride in it. This product was conceived to be a solid element of your residential array for the long term. Put your faith and confidence in its quality, its extended warranty of 10 years and GoodWe will be on your side for any issue along the way.


Compatible with bifacial panels


95V start-up voltage


150% DC input oversizing


Integrated AFCI & rapid shutdown


4 MPPTs

North America

10-year warranty

Integrated AFCI & Rapid Shutdown

The A-MS has been designed to meet the safety regulations of the American market, including Arc Fault Circuit Interrupter and Rapid Shutdown. GoodWe does not only deliver efficiency, reliability, but security as well.


High Power Generation

This inverter goes with the trends of the North American residential market and is compatible with bifacial modules. It also has the capacity to take as much as 12.5 A per string. These features ensure that the A-MS can absorb more solar power and make it one of the most productive inverters on the American residential market. With a start-up voltage of only 95 V, the A-MS is capable of generating solar power earlier than competitors, remaining productive for a larger portion of your typical day. With 150% DC input oversizing capability, the A-MS allows end-users to significantly expand the solar array and drive increased power output even under low solar radiation.


Compatible with bifacial modules


95V start-up voltage


150% DC input oversizing

OVERVIEW


Model

GW5000A-MS

Max. Input Voltage (V):

600

Max. Input Current per MPPT (A):

12.5 / 12.5

Number of MPP trackers/Number of Strings per MPPT:

2/1-1

Weight:

62.8lb (28.5Kg)

Nominal Output Voltage (V) :

211 to 264 @240 / 183 to 229 @208

Model

GW6000A-MS

Max. Input Voltage (V):

600

Max. Input Current per MPPT (A):

12.5 / 12.5

Number of MPP trackers/Number of Strings per MPPT:

2/1-1

Weight:

62.8lb (28.5Kg)

Nominal Output Voltage (V) :

211 to 264 @240 / 183 to 229 @208

Model

GW7000A-MS

Max. Input Voltage (V):

600

Max. Input Current per MPPT (A):

12.5 / 12.5 / 12.5 / 12.5

Number of MPP trackers/Number of Strings per MPPT:

4/1-1-1-1

Weight:

70.5lb (32Kg)

Nominal Output Voltage (V) :

211 to 264 @240 / 183 to 229 @208

Model

GW7600A-MS

Max. Input Voltage (V):

600

Max. Input Current per MPPT (A):

12.5 / 12.5 / 12.5 / 12.5

Number of MPP trackers/Number of Strings per MPPT:

4/1-1-1-1

Weight:

70.5lb (32Kg)

Nominal Output Voltage (V) :

211 to 264 @240 / 183 to 229 @208

Model

GW8600A-MS

Max. Input Voltage (V):

600

Max. Input Current per MPPT (A):

12.5 / 12.5 / 12.5 / 12.5

Number of MPP trackers/Number of Strings per MPPT:

4/1-1-1-1

Weight:

70.5lb (32Kg)

Nominal Output Voltage (V) :

211 to 264 @240 / 183 to 229 @208

Model

GW9600A-MS

Max. Input Voltage (V):

600

Max. Input Current per MPPT (A):

12.5 / 12.5 / 12.5 / 12.5

Number of MPP trackers/Number of Strings per MPPT:

4/1-1-1-1

Weight:

70.5lb (32Kg)

Nominal Output Voltage (V) :

211 to 264 @240 / 183 to 229 @208
