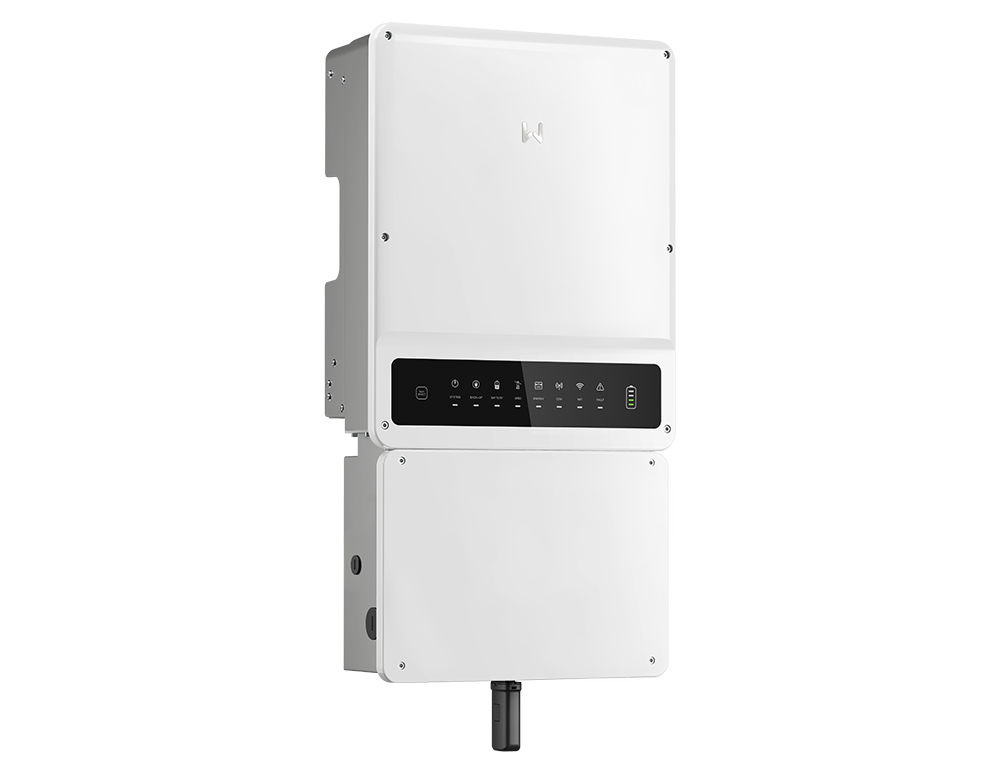

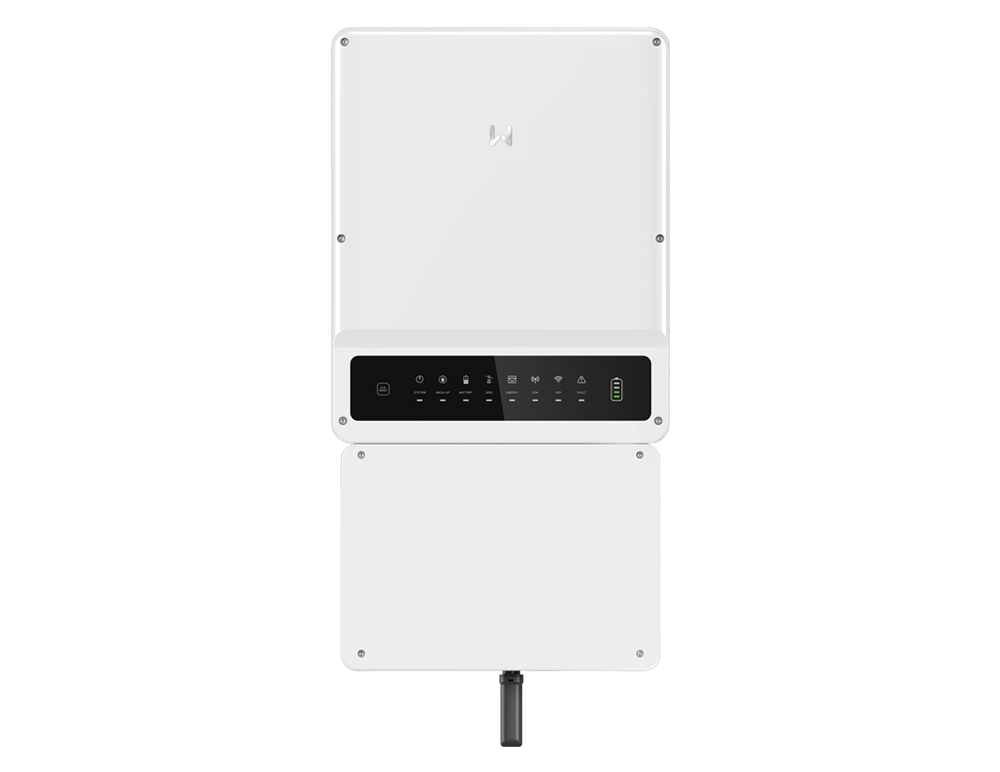

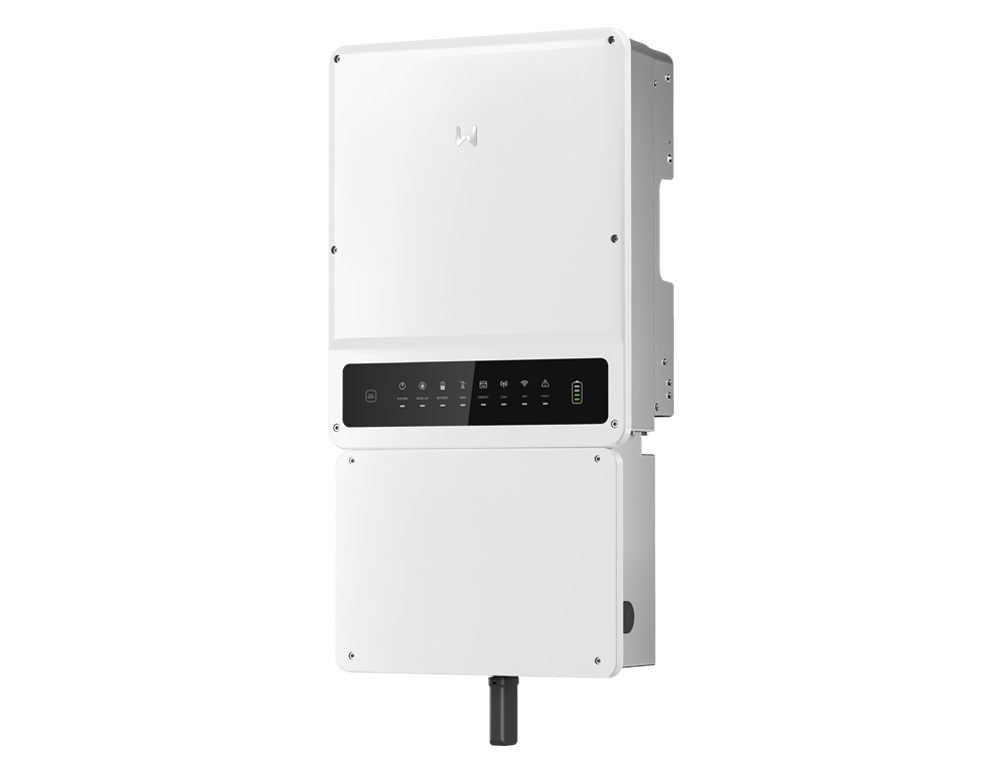

A-BP Series

(Americas Only) 5-9.6 kW | Split phase | AC-coupled retrofit inverter (HV)

DOWNLOAD PDF >>

Scroll

Micro-grid applications

Whole home backup

GoodWe’s A-BP series is designed to supplement an existing on-grid PV system and connect with high voltage batteries to seamlessly upgrade to a full storage system. The inverter can boost the PV system without the grid, ensuring the on-grid inverter stays connected if the grid is compromised. With frequency shifting, the A-BP can regulate the output power of the on-grid inverter and change the AC frequency to prevent over charging the battery. With an inbuilt smart meter and plug & play AC connectors, the inverter is easy to install. The A-BP can support whole home backup and is compatible with various brands of on-grid inverters.


Micro-grid applications


Whole home backup


Ultra rapid charge


Automatical frequency shifting


Micro-grid applications

Whole home backup

Micro-grid Applications

A-BP Series supports micro-grid applications, ensuring the on-grid inverter stays connected in case of grid failure. It is compatible with any brand of on-grid inverter.


Whole Home Backup

All the loads in the house can be connected to the backup side, ensuring power supply for all loads if the grid is compromised.

OVERVIEW


Model

GW5000A-BP

Battery Voltage Range (V)

80~495

Max. Charging Current(A)

50

Max. Discharging Current (A)

50

Output Voltage Range (V)

211 to 264 @240

Protection Degree

NEMA Type 4X

Model

GW6000A-BP

Battery Voltage Range (V)

80~495

Max. Charging Current(A)

50

Max. Discharging Current (A)

50

Output Voltage Range (V)

211 to 264 @240

Protection Degree

NEMA Type 4X

Model

GW7000A-BP

Battery Voltage Range (V)

80~495

Max. Charging Current(A)

50

Max. Discharging Current (A)

50

Output Voltage Range (V)

211 to 264 @240

Protection Degree

NEMA Type 4X

Model

GW7600A-BP

Battery Voltage Range (V)

80~495

Max. Charging Current(A)

50

Max. Discharging Current (A)

50

Output Voltage Range (V)

211 to 264 @240

Protection Degree

NEMA Type 4X

Model

GW8600A-BP

Battery Voltage Range (V)

80~495

Max. Charging Current(A)

50

Max. Discharging Current (A)

50

Output Voltage Range (V)

211 to 264 @240

Protection Degree

NEMA Type 4X

Model

GW9600A-BP

Battery Voltage Range (V)

80~495

Max. Charging Current(A)

50

Max. Discharging Current (A)

50

Output Voltage Range (V)

211 to 264 @240

Protection Degree

NEMA Type 4X
