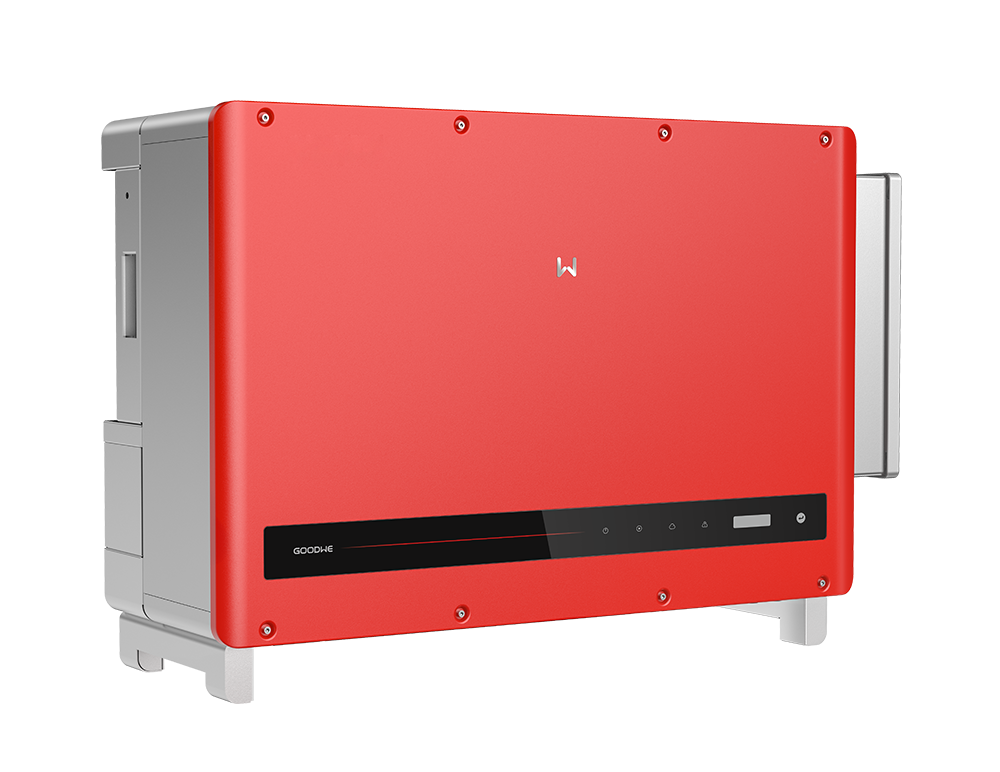

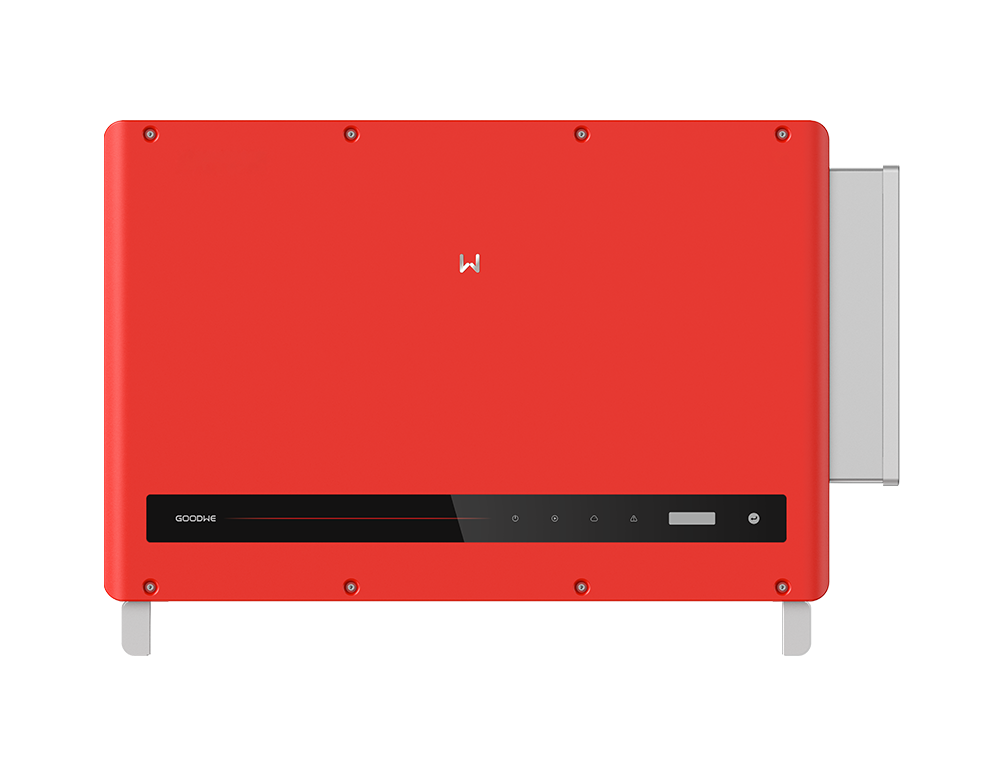

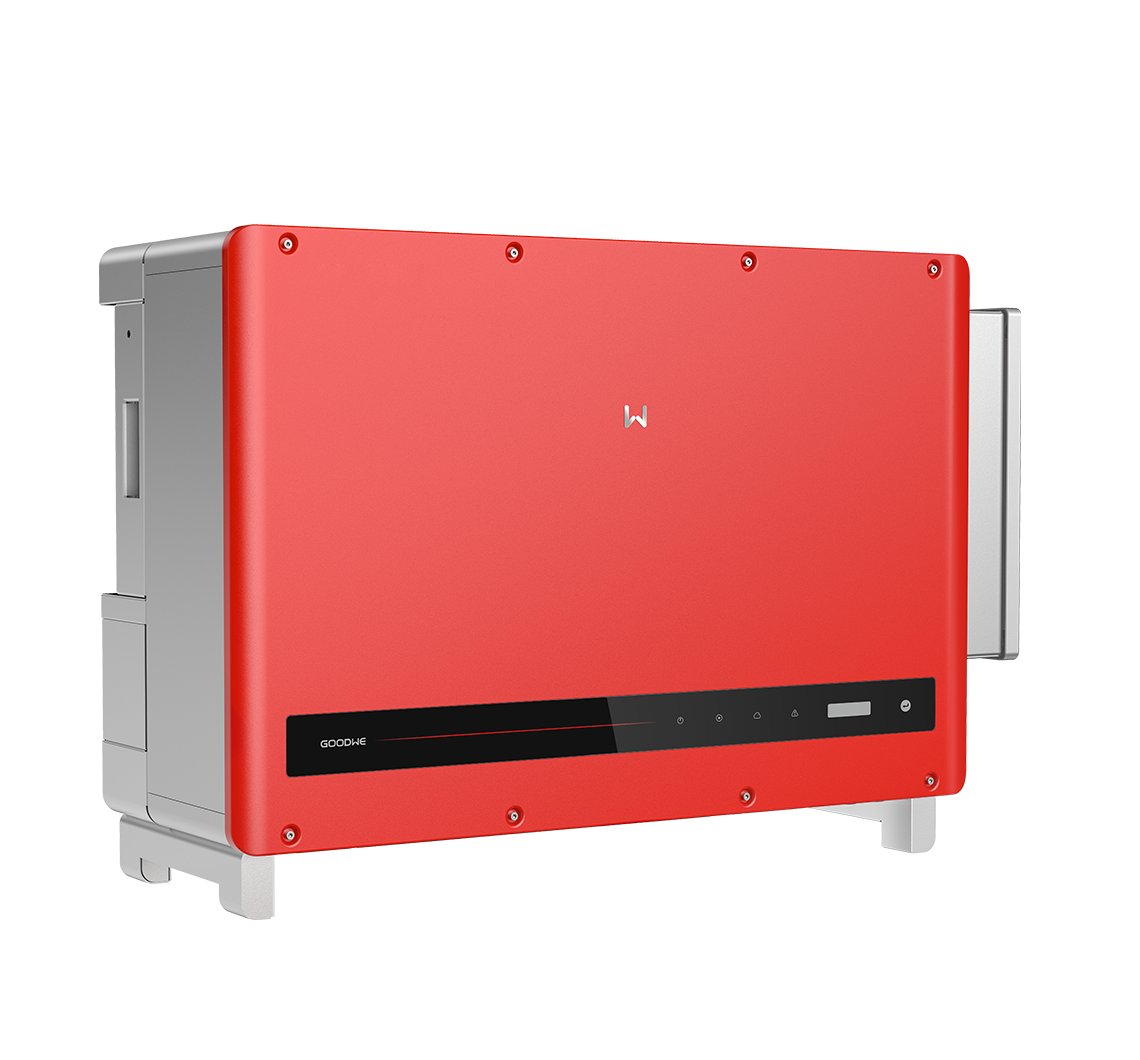

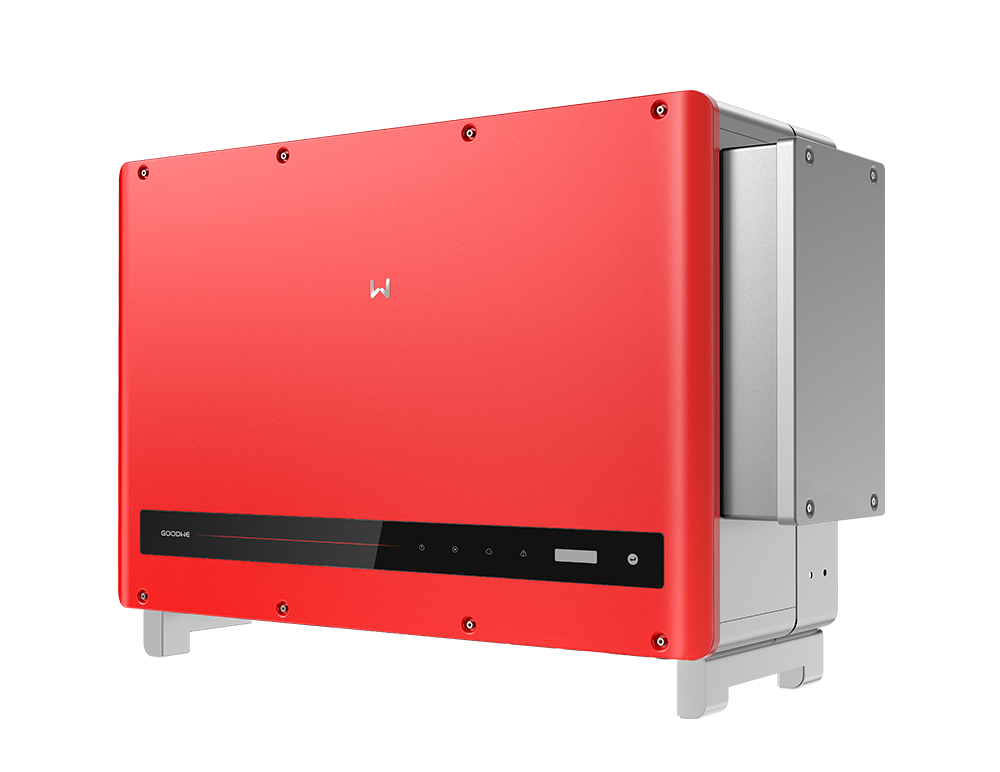

HT Series

73-136 kW | Three Phase ∣ up to 12 MPPTs

DOWNLOAD PDF >>

Scroll

Easy & quick config

Internal humidity monitoring

The HT 1100 Vdc Series 73-136 kW is GoodWe's new string inverter for C&I and small utility projects to boost your power and profit. Generate your solar power and make use of it with this centerpiece of the clean energy system. The HT Series seamlessly incorporates its technical strengths designed to achieve higher savings in the installation, enhance productivity with increased energy yields, realize high power density and diversify available monitoring options. It takes safety to the top possible level in accordance with the strictest industry standards and runs efficiently even under the harshest environmental conditions. This unrivalled set of features was conceived to ensure the lowest levelized cost of electricity (LCOE) to offer this ideal choice for commercial and industrial PV systems.


String Level Monitoring


Optional Type I Surge Protection & AFCI


IP66 and C5 protection


Internal humidity monitoring


Easy & quick config

Internal humidity monitoring

Superb Safety & Reliability

Equipped with IP66 and C5 protection, HT 100-136kW Series endures harsh environements for stable performance throughout its life cycle. Both the DC side and AC side are equipped with optional Type I surge protection to protect the inverter from lightning, providing upgraded safety and reliability for the PV system.


IP66 and C5 protection


Optional Type I Surge Protection & AFCI


Optimal Generation for Higher Return

With the compatibility with bi-facial modules and maximum 15A DC input current per string,  HT can deliver comprehensive commercial energy yields for increased ROI.

45

Full load running at 45°C

2

Compatible with bi-facial modules

12

MPPTs

OVERVIEW


Model

GW73KLV-HT

Max. Input Voltage (V):

800

Max. Input Current per MPPT (A):

30

Number of MPP trackers/Number of Strings per MPPT:

12/2

Max. Efficiency :

98.4%

Nominal Output Voltage (V) :

220, 3L/N/PE or 3L/PE

Model

GW75K-HT

Max. Input Voltage (V):

1100

Max. Input Current per MPPT (A):

30

Number of MPP trackers/Number of Strings per MPPT:

10/2

Max. Efficiency :

98.6%

Nominal Output Voltage (V) :

380/400, 3L/N/PE or 3L/PE

Model

GW80K-HT

Max. Input Voltage (V):

1100

Max. Input Current per MPPT (A):

30

Number of MPP trackers/Number of Strings per MPPT:

10/2

Max. Efficiency :

98.6%

Nominal Output Voltage (V) :

380/400, 3L/N/PE or 3L/PE

Model

GW100K-HT

Max. Input Voltage (V):

1100

Max. Input Current per MPPT (A):

30

Number of MPP trackers/Number of Strings per MPPT:

10/2

Max. Efficiency :

98.6%

Nominal Output Voltage (V) :

400, 3L/N/PE or 3L/PE

Model

GW110K-HT

Max. Input Voltage (V):

1100

Max. Input Current per MPPT (A):

30

Number of MPP trackers/Number of Strings per MPPT:

12/2

Max. Efficiency :

98.6%

Nominal Output Voltage (V) :

400, 3L/N/PE or 3L/PE

Model

GW120K-HT

Max. Input Voltage (V):

1100

Max. Input Current per MPPT (A):

30

Number of MPP trackers/Number of Strings per MPPT:

12/2

Max. Efficiency :

98.6%

Nominal Output Voltage (V) :

400, 3L/N/PE or 3L/PE

Model

GW136K-HTH

Max. Input Voltage (V):

1100

Max. Input Current per MPPT (A):

30

Number of MPP trackers/Number of Strings per MPPT:

12/2

Max. Efficiency :

99.0%

Nominal Output Voltage (V) :

500, 3L/PE
